38585 - Toro Power Clear Snow Thrower (SN: 280000001 - 280999999) (2008) CARBURETOR ASSEMBLY NO. 640299B TECUMSEH LH195SP-67529D Parts Diagram

Power Clear Snow Thrower

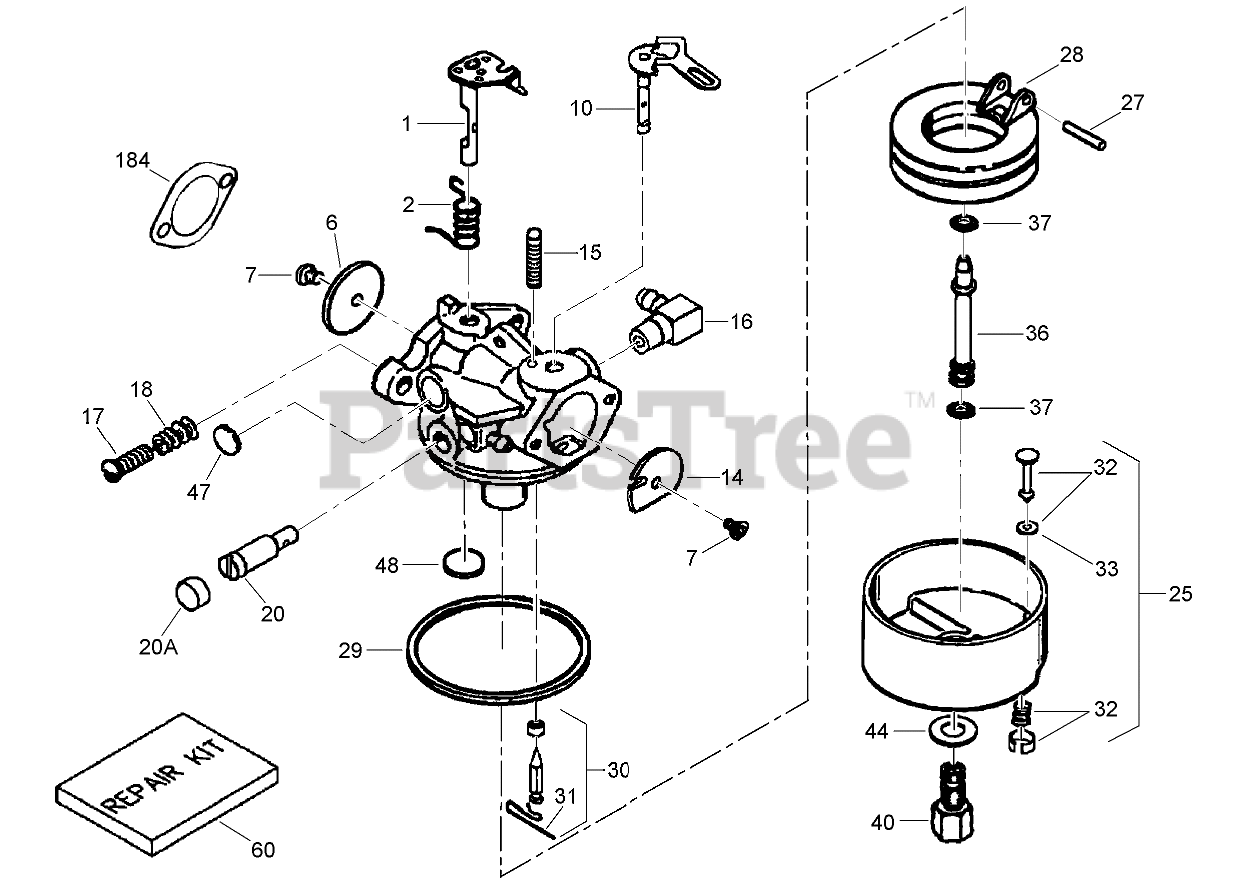

CARBURETOR ASSEMBLY NO. 640299B TECUMSEH LH195SP-67529D Parts Diagram

  • Title

Tecumseh 640299B

Carburetor

Note: Original Tecumseh Part

$109.99

$

In Stock, only 2 left!

0

1

Tecumseh 631615

Throttle Shaft and Lever ASM

Note: Original Tecumseh Part

$9.49

$

In Stock, only 1 left!

0

2

Tecumseh 631767

Spring-Return, Throttle

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 7

0

6

Tecumseh 640070

Shutter-Throttle

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

7

Tecumseh 650506

Screw-Shutter

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 17

0

7

Tecumseh 650506

Screw-Shutter

Note: Included in Repair Kit 632760B

$1.49

$

In Stock, Qty 17

0

10

Tecumseh 632108

Choke Shaft and Lever Asm

Note: Original Tecumseh Part

$235.99

$

In Stock, only 1 left!

0

14

Tecumseh 631890

Shutter-Choke

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

15

Tecumseh 630735

Spring-Positioning, Choke

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 631808

Fitting-Inlet, Fuel

Note: Original Tecumseh Part

$13.99

$

Usually ships in 3-12 days

0

17

Tecumseh 651025

Screw-Throttle Crack and Idle Speed

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

18

Tecumseh 630766

Spring-Tension

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

20

Tecumseh 640027

Screw-Restrictor, Idle

Note: Original Tecumseh Part

$3.99

$

In Stock, Qty 8

0

20A

Tecumseh 640053

Cap-Screw, Idle Restrictor

Note: Original Tecumseh Part

$1.49

$

In Stock, only 3 left!

0

25

Tecumseh 631867

Bowl-Float (no drain)

Note: Original Tecumseh Part

$3.49

$

In Stock, Qty 20+

0

25

Tecumseh 631951

Float Bowl ASM

Note: Original Tecumseh Part

$17.99

$

In Stock, only 1 left!

0

27

Tecumseh 631024

Shaft-Float

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 17

0

27

Tecumseh 631024

Shaft-Float

Note: Included in Repair Kit 632760B

$1.99

$

In Stock, Qty 17

0

28

Tecumseh 632802

Float (Plastic)
(Superseded to 632816)

Note: Original Tecumseh Part

$8.49

$

In Stock, Qty 19

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Original Tecumseh Part

$2.49

$

In Stock, Qty 20+

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Included in Repair Kit 632760B

$2.49

$

In Stock, Qty 20+

0

30

Tecumseh 631021A

Inlet Needle, Seat and Clip ASM (Includes 31)
(Superseded to 631021B)

Note: Included in Repair Kit 632760B

$6.99

$

In Stock, Qty 20+

0

30

Tecumseh 631021A

Inlet Needle, Seat and Clip ASM (Includes 31)
(Superseded to 631021B)

Note: Original Tecumseh Part

$6.99

$

In Stock, Qty 20+

0

31

Tecumseh 631022

Clip-Spring

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 7

0

32

Tecumseh 27136A

Bowl Drain ASM (before 1/1/2006)

Note: Original Tecumseh Part

$7.49

$

In Stock, only 1 left!

0

33

Tecumseh 27554

Gasket-Plunger, Drain (before 1/1/2006)

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 20+

0

33

Tecumseh 27554

Gasket-Plunger, Drain (before 1/1/2006)

Note: Included in Repair Kit 632760B

$1.49

$

In Stock, Qty 20+

0

36

Tecumseh 632745

Tube-Nozzle, Main

Note: Original Tecumseh Part

$6.99

$

In Stock, Qty 10

0

37

Tecumseh 632547

O-Ring

Note: Included in Repair Kit 632760B

$4.49

$

In Stock, Qty 20+

0

37

Tecumseh 632547

O-Ring

Note: Original Tecumseh Part

$4.49

$

In Stock, Qty 20+

0

40

Tecumseh 640131

Nut-Bowl, High Speed

Note: Original Tecumseh Part

$7.49

$

In Stock, only 2 left!

0

44

Tecumseh 27110A

Washer-Nut, Bowl

Note: Original Tecumseh Part

$2.49

$

In Stock, Qty 20+

0

44

Tecumseh 27110A

Washer-Nut, Bowl

Note: Included in Repair Kit 632760B

$2.49

$

In Stock, Qty 20+

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Included in Repair Kit 632760B

$1.99

$

In Stock, Qty 8

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 8

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Included in Repair Kit 632760B

$1.99

$

In Stock, only 3 left!

0

60

Tecumseh 632760B

Carburetor Repair Kit

Note: Original Tecumseh Part

$27.99

$

In Stock, Qty 20+

0

184

Tecumseh 26756

Gasket

Note: Included in Repair Kit 632760B

$2.99

$

In Stock, Qty 20+

0

184

Tecumseh 26756

Gasket

Note: Original Tecumseh Part

$2.99

$

In Stock, Qty 20+

0
