38586 - Toro Power Clear Snow Thrower (SN: 290000001 - 290999999) (2009) Electric Starter No. 37657 Tecumseh LH195SP-67530D Parts Diagram

Power Clear Snow Thrower

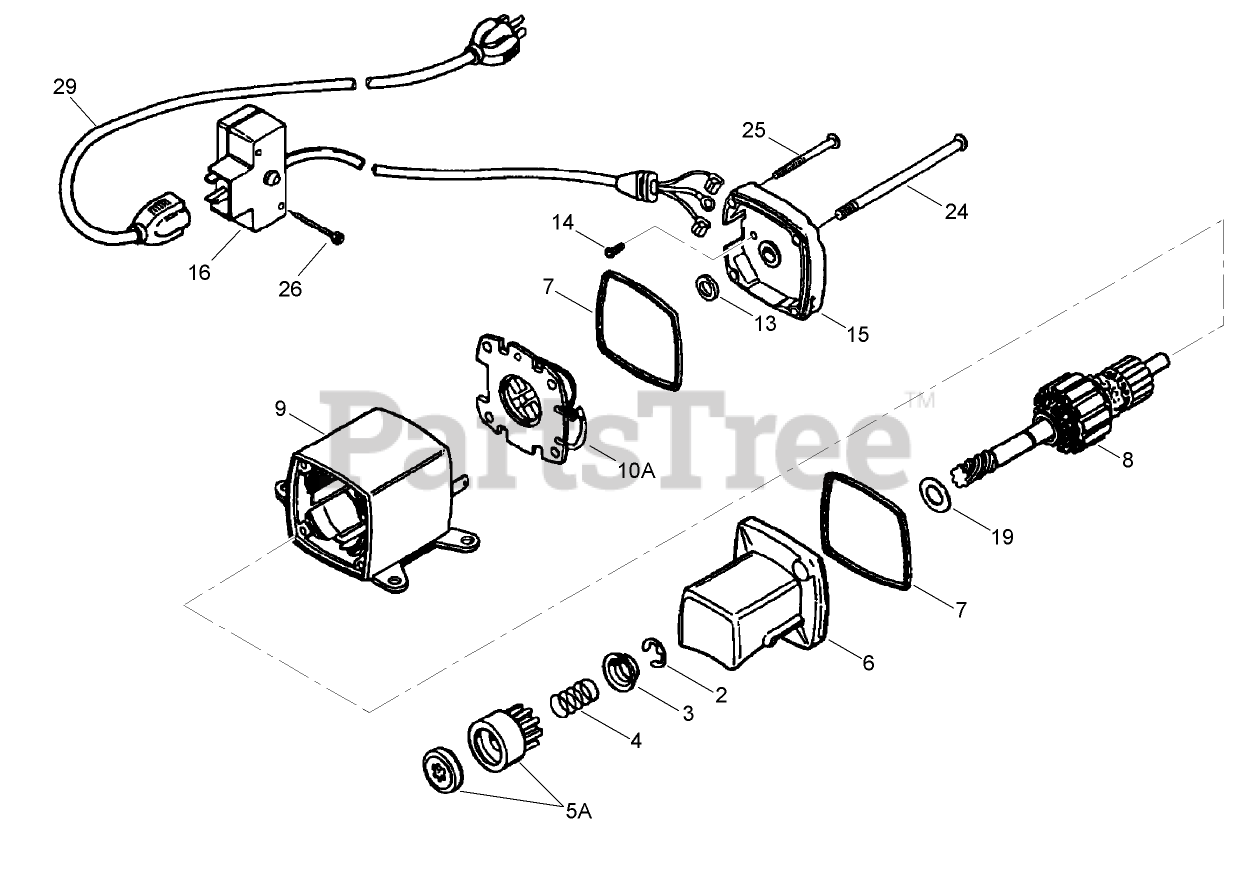

Electric Starter No. 37657 Tecumseh LH195SP-67530D Parts Diagram

  • Title

Toro 37657

Electric Starter Motor Asm (110 Volt)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

2

Toro 31749

Retainer-Ring

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

3

Toro 33522

Retainer-Spring

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

4

Toro 33769

Spring-Anti Drift

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

5A

Toro 37332

Nut and Gear ASM (Includes 2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

6

Toro 35461

Cap Assembly (Incl. Ref. #7)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

7

Toro 35450

O-Ring

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

8

Toro 35912

Armature

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

9

Loose Parts Package

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

10A

Toro 35452A

Brush Card ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

13

Toro 590500

Washer-Thrust

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

14

Toro 33441

Screw-Ground

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

15

Toro 35453

Cap Assembly (Incl. Ref. #7)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

16

Toro 37680

Switch Box Asm

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

19

Toro 35911

Washer-Thrust

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

24

Toro 35462

Bolt-Case

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

25

Toro 35456

Screw-Ground

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

26

Screw (O.E.M. supplied)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

29

Toro 32450B

Cord-Extension (10-6)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable
