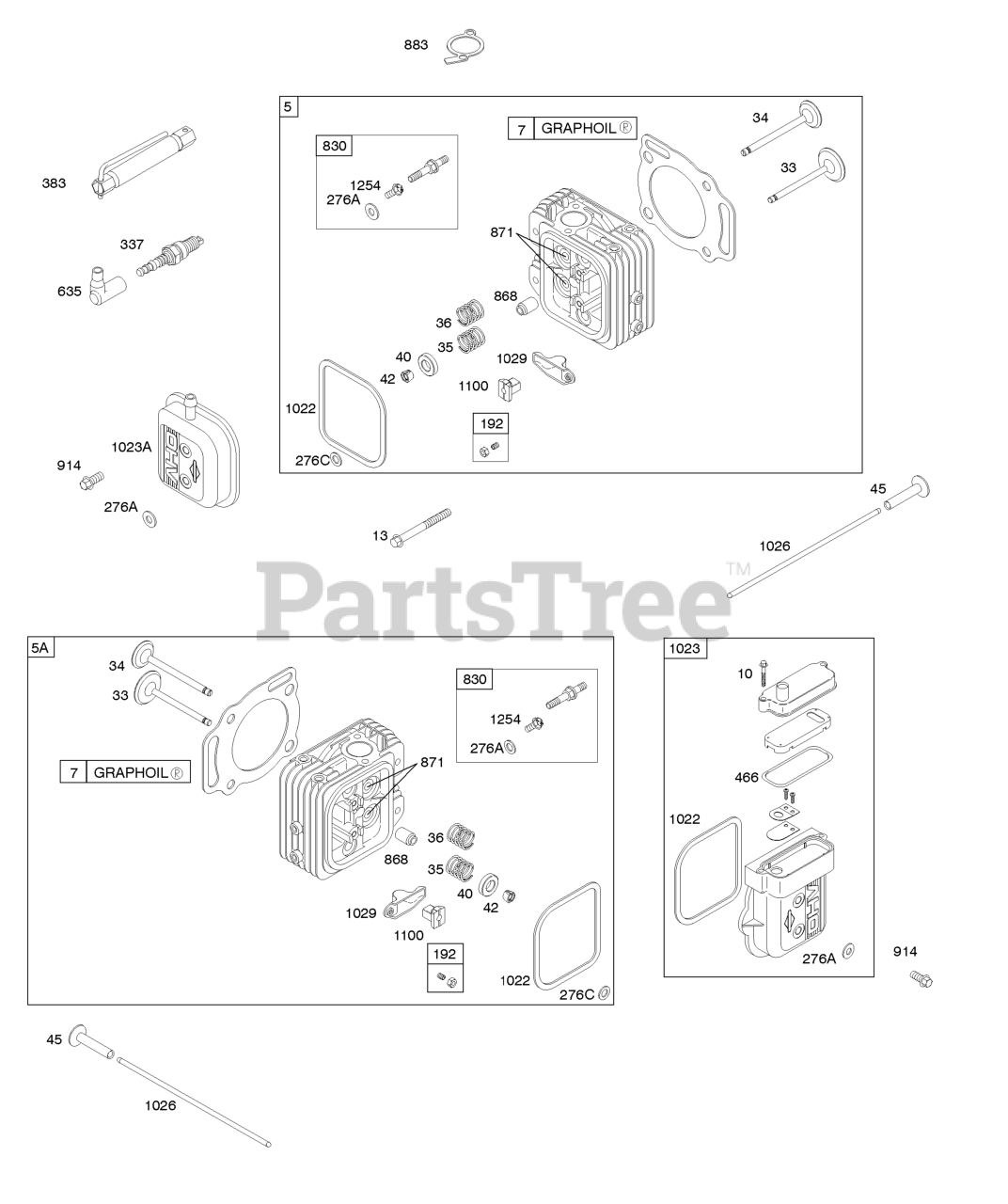

385877-0001-B1 - Briggs & Stratton Vertical Engine Cyclinder Heads Parts Diagram

Vertical Engine

Cyclinder Heads Parts Diagram

  • Title

5

Briggs & Stratton 845713

Head-Cylinder
(Superseded to 84002012)

Note: (Cylinder #1)

$255.99

$

In Stock, only 1 left!

0

5A

Briggs & Stratton 845714

Head-Cylinder
(Superseded to 84002013)

Note: (Cylinder #2)

$281.99

$

In Stock, Qty 6

0

7

Briggs & Stratton 842622

Gasket-Cylinder Head
(Superseded to 84006734)

Note: (Graphoil)

$34.99

$

In Stock, Qty 7

0

10

Briggs & Stratton 806421

SCREW

Note: (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 842618

Screw

Note: (Cylinder Head) (M8x106mm)

$4.49

$

In Stock, Qty 5

0

33

Briggs & Stratton 806419

Valve-Exhaust
(Superseded to 843752)

$52.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 845712

Valve-Intake

$28.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 692084

Spring-Valve

Note: (Intake)

$6.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 692084

Spring-Valve

Note: (Exhaust)

$6.99

$

In Stock, only 2 left!

0

40

Briggs & Stratton 692058

Retainer-Valve

$5.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 807683

RETAINER, Valve

$7.49

$

In Stock, only 3 left!

0

45

Briggs & Stratton 843379

Tappet-Valve

$10.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 807623

Adjuster-Rocker Arm

$12.99

$

In Stock, only 1 left!

0

276A

Briggs & Stratton 807085

Washer-Sealing

Note: (Rocker Cover)

$3.99

$

In Stock, Qty 18

0

276C

Briggs & Stratton 691766

Washer-Sealing

$6.49

$

In Stock, Qty 8

0

337

Briggs & Stratton 792015

PLUG, Spark

$3.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$6.49

$

In Stock, Qty 8

0

466

Briggs & Stratton 806466

Seal-O Ring

Note: (Breather Assembly)

$10.99

$

In Stock, only 2 left!

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.99

$

Usually ships in 2-12 days

0

830

Briggs & Stratton 809157

Stud-Rocker Arm

$7.49

$

In Stock, only 3 left!

0

868

Briggs & Stratton 691963

SEAL, Valve

$11.99

$

In Stock, only 2 left!

0

871

Briggs & Stratton 692057

Bushing-Valve Guide
(Superseded to 84002672)

$13.99

$

In Stock, only 2 left!

0

914

Briggs & Stratton 807084

SCREW

Note: (Rocker Cover) (M6x14mm)

$3.99

$

In Stock, only 3 left!

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$5.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 843750

Cover-Rocker

Note: (Includes Breather Assembly)

$89.99

$

In Stock, Qty 6

0

1023A

Briggs & Stratton 691558

Cover-Rocker

Note: (Cylinder #1) (Fuel Pump)

$22.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 691758

Rod-Push

Note: (Exhaust)(Aluminum)

$12.99

$

In Stock, Qty 17

0

1026

Briggs & Stratton 691836

Rod-Push

Note: (Intake)(Steel)

$12.99

$

In Stock, Qty 6

0

1029

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

Usually ships in 2-12 days

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$7.99

$

In Stock, Qty 8

0

1254

Briggs & Stratton 807084

SCREW

Note: (Rocker Arm Stud)

$3.99

$

In Stock, only 3 left!

0
