38590 (1232) - Toro 32" Power Shift Snow Thrower (SN: 069000001 - 069999999) (1996) Tecumseh Model No. Ohsk120-222023e/24e Parts Diagram

32" Power Shift Snow Thrower

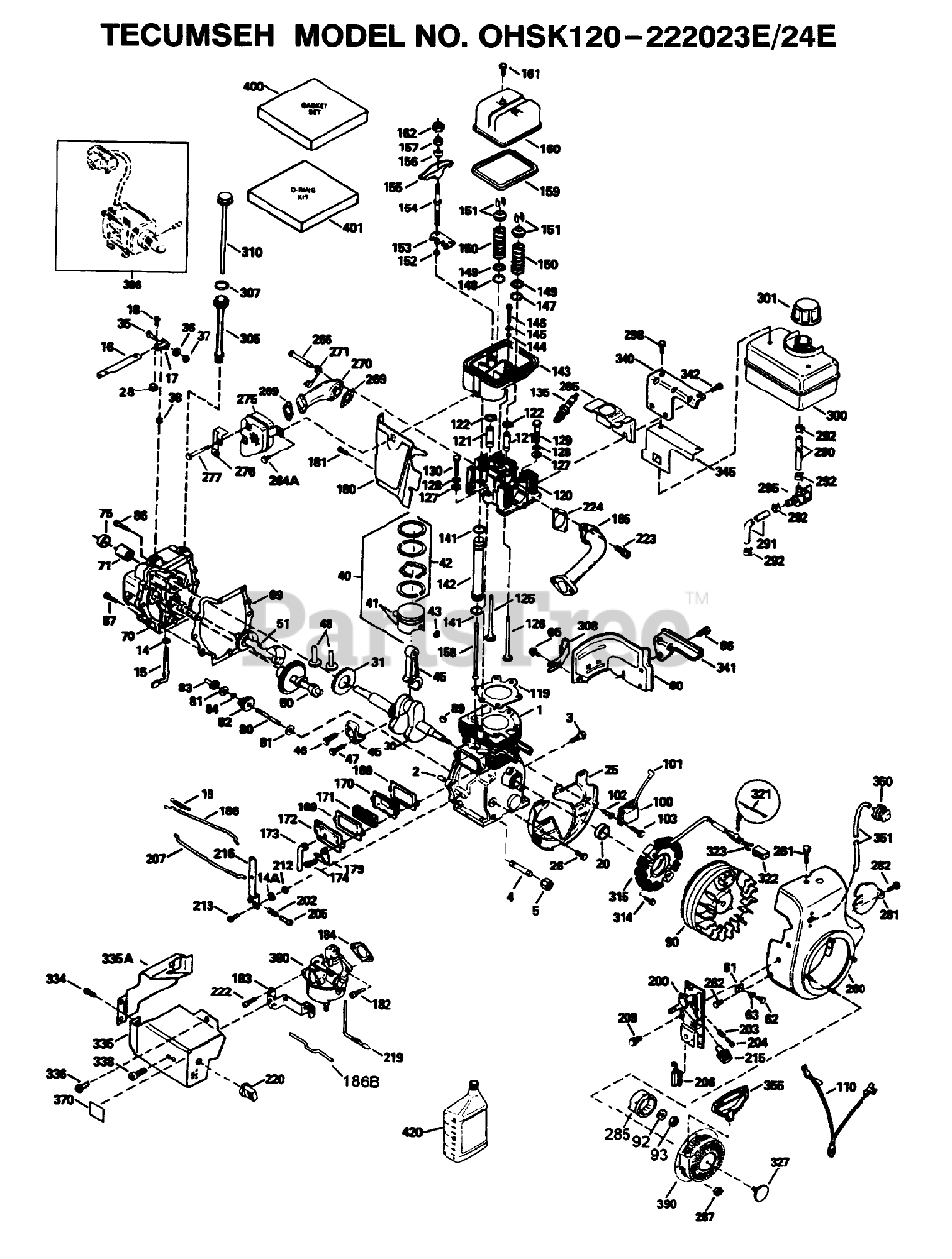

Tecumseh Model No. Ohsk120-222023e/24e Parts Diagram

  • Title

Engine-Kohler OHSK120-222023E Used On Model No.38591

Note: Not illustrated

$

$

Not available

Engine-Kohler OHSK120-222024E Used On Model No.38590

Note: Not illustrated

$

$

Not available

1

Toro 35677A

Cylinder (Incl. Ref.#2, 20, 72 80)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

3

Toro 650820

Screw (1/4-20x1/2)

$

$

Currently unavailable

4

Nipple-Pipe

$

$

Not available

5

Toro 30969

Cap-Pipe

$

$

Currently unavailable

14

Toro 28277

Washer-Flat

$

$

Currently unavailable

14A

Toro 28558

Washer

$

$

Currently unavailable

15

Toro 335685

Rod-Governor (Incl. Ref.#14 38)

$

$

Currently unavailable

16

Toro 35686

Governor Lever

$

$

Currently unavailable

17

Toro 29916

Clamp-Lever, Governor

$

$

Currently unavailable

18

Toro 650548

Screw

$

$

Currently unavailable

19

Toro 35688

Throttle Spring

$

$

Currently unavailable

20

Toro 35319

Seal-Oil

$

$

Currently unavailable

25

Toro 36460

Baffle-Housing, Blower
(Superseded to 702114)

$

$

Not available

26

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

28

Toro 30322

Nut-Lock

$

$

Currently unavailable

30

Toro 36706

Crankshaft

$

$

Currently unavailable

31

Toro 35327

Counterbalance Gear

$

$

Not available

35

Toro 29826

Screw

$

$

Currently unavailable

36

Toro 29918

Washer-Lock

$

$

Currently unavailable

37

Toro 29216

Nut-Lock

$

$

Currently unavailable

38

Toro 29642

Ring-Retaining

$

$

Currently unavailable

40

Toro 35776

Piston, Pin Ring Assy. Std.(Includes ref. #41, 42 43)

$

$

Currently unavailable

Toro 35777

Piston, Pin Ring Assy. .010 oversize(Includes ref. #41, 42 43)

Note: Not illustrated

$

$

Currently unavailable

Toro 35778

55079/55080 PLYMOUT

Note: Not illustrated

$3.23

$

Usually ships in 3-6 days

0

41

Toro 35773

Piston Pin Assembly Standard (Includes ref. #43)

$

$

Currently unavailable

Toro 35774

Piston Pin Assembly .010 oversize (Incl. ref. #43)

Note: Not illustrated

$

$

Currently unavailable

Toro 35775

Piston Pin Assembly .020 oversize (Incl. ref. #43)

Note: Not illustrated

$

$

Currently unavailable

42

Toro 35779

Ring Set (STD)

$

$

Currently unavailable

Toro 35780

Ring Set (.010)

Note: Not illustrated

$

$

Currently unavailable

Toro 35781

Ring Set (.020)

Note: Not illustrated

$

$

Currently unavailable

43

Toro 35772

Retaining Ring-Piston Pin

$

$

Currently unavailable

45

Toro 35681

Rod Assembly-Connecting (Incl. ref. #46, 47 49)

$

$

Currently unavailable

46

Toro 650908

Bolt-Rod

$

$

Currently unavailable

47

Toro 650882

Bolt-Rod

$

$

Currently unavailable

48

Toro 35313

Lifter-Valve

$

$

Currently unavailable

50

Toro 35682A

Camshaft

$

$

Currently unavailable

51

Toro 35315A

Counterbalance Weight

$

$

Currently unavailable

60

Toro 35316A

Extension-Housing, Blower

$

$

Currently unavailable

61

Toro 34126

Bracket

$

$

Currently unavailable

62

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

63

Toro 28545

Grommet

$

$

Currently unavailable

65

Toro 650128

Screw

$

$

Currently unavailable

66

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

69

Toro 35683

55072/75/86/89 TWO

$3.23

$

Usually ships in 3-6 days

0

70

Toro 35684A

Cylinder Cover (Incl. Ref. #14, 15, 38, 71, 75)

$

$

Currently unavailable

71

Toro 35377

2025A77 WIZARD ROTA

$3.23

$

Usually ships in 3-6 days

0

75

Toro 35319

Seal-Oil

$

$

Currently unavailable

80

Toro 35751

Governor Shaft

$

$

Currently unavailable

81

Toro 35479

Washer
(Superseded to 704759)

$

$

Not available

82

Toro 35321

Gear-Asm Governor

$

$

Currently unavailable

83

Toro 35322

Governor Spool

$

$

Currently unavailable

84

Toro 29193

Ring-Retaining

$

$

Currently unavailable

86

Toro 650833

Screw (1/4-20x1-3/16)

$

$

Currently unavailable

87

Toro 650832

Screw (1/4-20x1-11/16)

$

$

Currently unavailable

89

Toro 32589

Key-Flywheel

$

$

Currently unavailable

90

Toro 611094

Flywheel (W/Ring Gear)

$

$

Currently unavailable

Toro 611093

Flywheel ASM

Note: Not illustrated

$

$

Currently unavailable

192

Toro 650880

Washer-Belleville

$

$

Currently unavailable

93

Toro 650881

Nut-Flywheel

$

$

Currently unavailable

100

Toro 35135

Solid State ASM

$

$

Currently unavailable

101

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

102

Toro 650872

Stud

$

$

Currently unavailable

103

Toro 651007

Screw (T-15, 10-24 x 15/16)

$

$

Currently unavailable

110

Toro 35253

Ground Wire

$

$

Currently unavailable

119

Toro 35306A

Cylinder Head Gasket

$

$

Currently unavailable

120

Toro 35307

Cylinder Head

$

$

Currently unavailable

121

Toro 730218

Valve Guide Kit (Incl. Ref.# 2 of 122)

$

$

Currently unavailable

122

Toro 792036

Ring-Retaining

$

$

Currently unavailable

125

Toro 35308

Exhaust Valve (Std.)

$

$

Currently unavailable

Toro 35433

Exhaust Valve (1/32)

Note: Not illustrated

$

$

Currently unavailable

126

Toro 35309

Intake Valve (Std.)

$

$

Currently unavailable

Toro 35432

Intake Valve (1/32)

Note: Not illustrated

$

$

Currently unavailable

127

Toro 650691

Washer-Flat

$

$

Currently unavailable

128

Toro 650690

Washer-Belleville

$

$

Currently unavailable

129

Toro 650746

Screw

$

$

Currently unavailable

130

Toro 650692

Screw

$

$

Currently unavailable

135

Toro 34046

Spark-Plug (RL86C)

$

$

Currently unavailable

141

Toro 33481

ORing

$

$

Currently unavailable

142

Toro 35475

Push Rod Tube

$

$

Currently unavailable

143

Toro 35310

55062 SNWTHWR ADN.W

$3.23

$

Usually ships in 3-6 days

0

144

Toro 33484

ORing

$

$

Currently unavailable

145

Toro 650168

Washer

$

$

Currently unavailable

146

Toro 32610A

Bolt-Rod, Connecting

$

$

Currently unavailable

147

Toro 33509

ORing

$

$

Currently unavailable

148

Toro 34110

ORing

$

$

Currently unavailable

149

Toro 33510

Cap-Valve Spring

$

$

Currently unavailable

150

Toro 33507

Spring-Valve
(Superseded to 704725)

$

$

Not available

151

Toro 33508

Keeper-Spring, Valve

$

$

Currently unavailable

152

Toro 32595

ORing

$

$

Currently unavailable

153

Toro 35296

Guide-Push Rod

$

$

Currently unavailable

154

Toro 650878

Rocker Arm Stud

$

$

Currently unavailable

155

Toro 35297

Arm-Rocker

$

$

Currently unavailable

156

Toro 35298

Bearing-Rocker Arm

$

$

Currently unavailable

157

Toro 28264

Nut

$

$

Currently unavailable

158

Toro 35466

Rod-Push

$

$

Currently unavailable

159

Toro 35299B

ORing

$

$

Currently unavailable

160

Toro 35300

Housing-Rocker Arm

$

$

Currently unavailable

161

Toro 650879

Screw

$

$

Currently unavailable

162

Toro 650903

Jam Nut

$

$

Currently unavailable

169

Toro 27896A

Gasket-Cover, Valve

$

$

Currently unavailable

170

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

171

Toro 28424

Element-Breather

$

$

Currently unavailable

172

Toro 28425

Cover-Valve

$

$

Currently unavailable

173

Toro 35350

Tube-Breather

$

$

Currently unavailable

174

Toro 650128

Screw

$

$

Currently unavailable

179

Toro 30593

Retainer Clip

$

$

Currently unavailable

180

Toro 35301

Blower Housing Extension

$

$

Currently unavailable

181

Toro 650128

Screw

$

$

Currently unavailable

182

Toro 650517

Screw (T-30, 1/4-20 X 27-32)

$

$

Currently unavailable

183

Toro 34583A

Bracket-Choke

$

$

Currently unavailable

184

Toro 33263

Gasket-Carburetor To Intake Pipe

$

$

Currently unavailable

185

Toro 35690

Intake Pipe

$

$

Currently unavailable

186

Toro 35691

Governor Link

$

$

Currently unavailable

186B

Toro 36653

Spring-Choke

$

$

Currently unavailable

200

Toro 35702

Bracket-Control (Incl. Ref. #203, 204 and 206)

$

$

Currently unavailable

202

Toro 36482

Compression Spring

$

$

Currently unavailable

203

Toro 31342

Spring-Compression

$

$

Currently unavailable

204

Toro 650549

Screw

$

$

Currently unavailable

205

Toro 650777

Screw

$

$

Currently unavailable

206

Toro 610973

Terminal

$

$

Currently unavailable

207

Toro 35692

Choke Link

$

$

Currently unavailable

209

Toro 650821

Screw (10-32 x 1/2)

$

$

Currently unavailable

212

Toro 30773A

Bushing

$

$

Currently unavailable

213

Toro 650930

Screw

$

$

Currently unavailable

215

Toro 35440

Knob-Control

$

$

Currently unavailable

216

Toro 35679

Lever-Adjusting

$

$

Currently unavailable

219

Toro 35689

Rod-Choke

$

$

Currently unavailable

220

Toro 35438

Knob-Control
(Superseded to 742440)

$

$

Not available

222

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

223

Toro 650971

Screw (T-30, 5/16-18 X 7/8)

$

$

Currently unavailable

224

Toro 33515A

Gasket-Pipe

$

$

Currently unavailable

260

Toro 35694

Blower Housing

$

$

Currently unavailable

261

Toro 30063

Screw

$

$

Currently unavailable

262

Toro 29747B

Screw

$

$

Currently unavailable

264A

Toro 30063

Screw

$

$

Currently unavailable

265

Toro 35290

Cover-Cylinder Head

$

$

Currently unavailable

266

Toro 650876

Screw (5/16-18 X 1-9/32)

$

$

Currently unavailable

269

Toro 35762

Gasket-Manifold, Exhaust

$

$

Currently unavailable

270

Toro 35292

Exhaust Manifold

$

$

Currently unavailable

271

Toro 35293

Plate-Locking

$

$

Currently unavailable

275

Toro 35294

Muffler

$

$

Currently unavailable

276

Toro 35348

Plate-Locking

$

$

Currently unavailable

277

Toro 650877

Screw (5/16-18 X 4-1/2)

$

$

Currently unavailable

281

Toro 33013

Screw

$

$

Currently unavailable

282

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

285

Toro 35985B

Cup-Starter

$

$

Currently unavailable

287

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

290

Toro 30962

Line-Fuel

$

$

Currently unavailable

291

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

292

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

295

Toro 35857

Valve-Shut Off, Fuel

$

$

Currently unavailable

298

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

300

Toro 314156A

Tank-Fuel (Incl. Ref. #292 301)

$

$

Currently unavailable

301

Toro 36246

Cap-Fuel

$

$

Currently unavailable

305

Toro 35574

Tube-Fill, Oil

$

$

Not available

307

Toro 35499

O-Ring

$

$

Currently unavailable

308

Toro 35539

Clip-Tube, Fill

$

$

Currently unavailable

310

Toro 35700

Dipstick

$

$

Currently unavailable

314

Toro 650873

Screw (1/4-20 x 3/4)

$

$

Currently unavailable

315

Toro 611104

Alternator Coil (3/5)(Incl. 321-323)

$

$

Currently unavailable

315

Toro 611111

Coil-Alternator, 18 Watt (Includes 323)
(Superseded to 611113)

$

$

Not available

321

Toro 611161

Diode

$

$

Not available

322

Toro 611142

Body-Connector

$

$

Currently unavailable

323

Toro 611118

Terminal

$

$

Currently unavailable

327

Toro 35392

Plug Starter

$

$

Currently unavailable

334

Toro 650257

Screw (8-32 X 5/16)

$

$

Currently unavailable

335

Toro 35698

Carburetor Cover

$

$

Currently unavailable

335A

Toro 35693

Carburetor Cover

$

$

Currently unavailable

336

Toro 650765

Screw (10-32x1/2)

$

$

Currently unavailable

338

Toro 650821

Screw (10-32 x 1/2)

$

$

Currently unavailable

340

Toro 35696

55073/76/87/90 SNWT

$3.23

$

Usually ships in 3-6 days

0

341

Toro 35697

Bracket-Fuel Tank

$

$

Currently unavailable

342

Toro 792028

Screw (5/16-18 X 7/8)

$

$

Currently unavailable

345

Toro 35699

Baffle-Heat

$

$

Currently unavailable

350

Toro 570682

Primer-Asm

$

$

Currently unavailable

351

Toro 32180C

Line-Primer

$

$

Currently unavailable

355

Toro 590574

Handle-Starter, Mitten Grip

$

$

Currently unavailable

370

Toro 36261

Decal-Lubrication

$

$

Currently unavailable

380

Toro 632536

Carburetor (Incl. Ref. #184)

$

$

Currently unavailable

390

Toro 590733

Starter-Rewind

$

$

Currently unavailable

396

Toro 33329D

Starter-Electric (110 Volt)

$

$

Currently unavailable

400

Toro 35331B

Gasket Set

$

$

Currently unavailable

401

Toro 35332

O-Ring Kit

$

$

Currently unavailable

420

Toro 730226

Oil-Engine (SAE 5W30)

$

$

Currently unavailable
