38590 (1232) - Toro 32" Power Shift Snow Thrower (SN: 079000001 - 079999999) (1997) CARBURETOR NO. 632536 Parts Diagram

32" Power Shift Snow Thrower

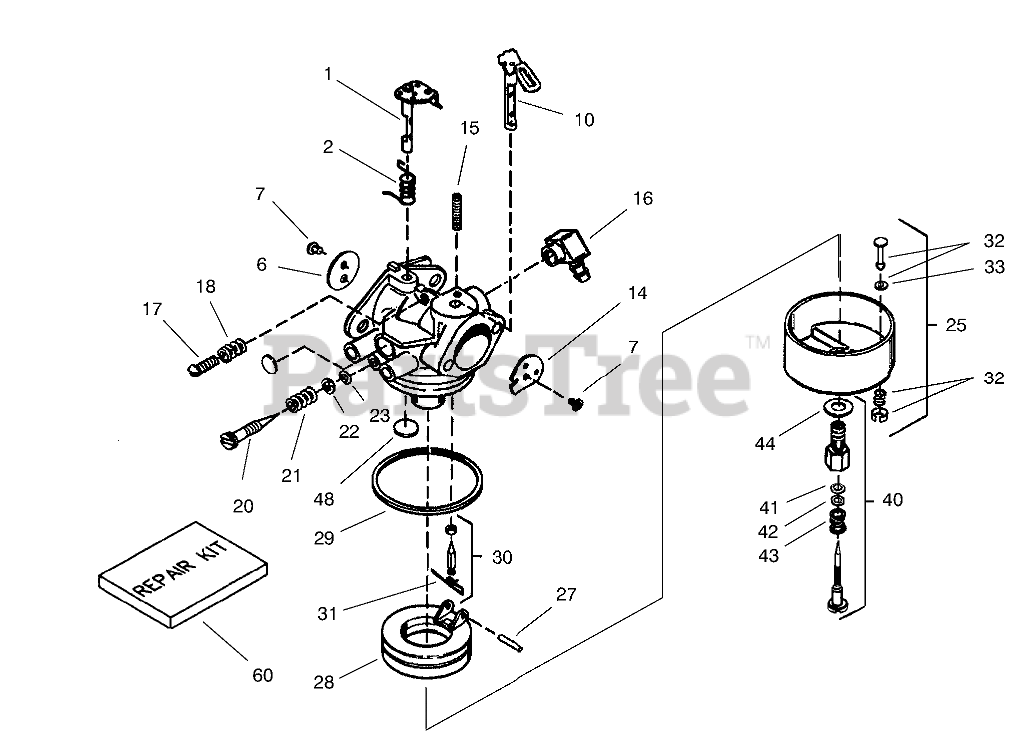

CARBURETOR NO. 632536 Parts Diagram

  • Title

1

Tecumseh 632512

Throttle-Shaft & Lever Asm
(Superseded to 632787)

$7.49

$

Usually ships in 3-12 days

0

2

Tecumseh 631970

Spring-Return, Throttle

$4.49

$

In Stock, only 1 left!

0

6

Tecumseh 632517

Shutter-Throttle

$1.99

$

In Stock, Qty 7

0

7

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 17

0

10

Tecumseh 632513

Choke Shaft & Lever ASM

$8.99

$

Usually ships in 3-12 days

0

14

Tecumseh 632514

Choke Shutter

$

$

Not available

15

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 631775

Fitting-Fuel
(Superseded to 632527)

$8.49

$

In Stock, only 2 left!

0

17

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, Qty 5

0

18

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, only 4 left!

0

20

Tecumseh 632281

Screw-Idle Mix

$3.99

$

In Stock, Qty 5

0

21

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, only 4 left!

0

22

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 16

0

23

Tecumseh 630740

"O"Ring

$2.49

$

In Stock, Qty 13

0

25

Tecumseh 632594

Float Bowl Asm.
(Superseded to 632594A)

$14.99

$

In Stock, only 1 left!

0

27

Tecumseh 631024

Shaft-Float

$1.99

$

In Stock, Qty 17

0

28

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 7

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

$2.49

$

In Stock, Qty 20+

0

30

Tecumseh 631021

Inlet Needle, Seat and Clip ASM
(Superseded to 631021B)

$6.99

$

In Stock, Qty 20+

0

31

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, Qty 7

0

32

Tecumseh 27136A

Bowl Drain ASM

$7.49

$

In Stock, only 1 left!

0

33

Tecumseh 27554

Gasket-Plunger, Drain

$1.49

$

In Stock, Qty 20+

0

40

Tecumseh 632239

Mian Adj. Screw Asm.

$14.99

$

In Stock, only 1 left!

0

41

Tecumseh 630740

"O"Ring

$2.49

$

In Stock, Qty 13

0

42

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 16

0

43

Tecumseh 630738

Spring

$1.99

$

In Stock, Qty 12

0

44

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

$2.49

$

In Stock, Qty 20+

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

$1.99

$

In Stock, Qty 8

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

$1.99

$

In Stock, only 3 left!

0

60

Tecumseh 632347

Kit-Repair

$20.99

$

In Stock, Qty 7

0
