38591 (1232) - Toro 32" Power Shift Snow Thrower (SN: 069000001 - 069999999) (1996) Carburetor No. 632536 Parts Diagram

32" Power Shift Snow Thrower

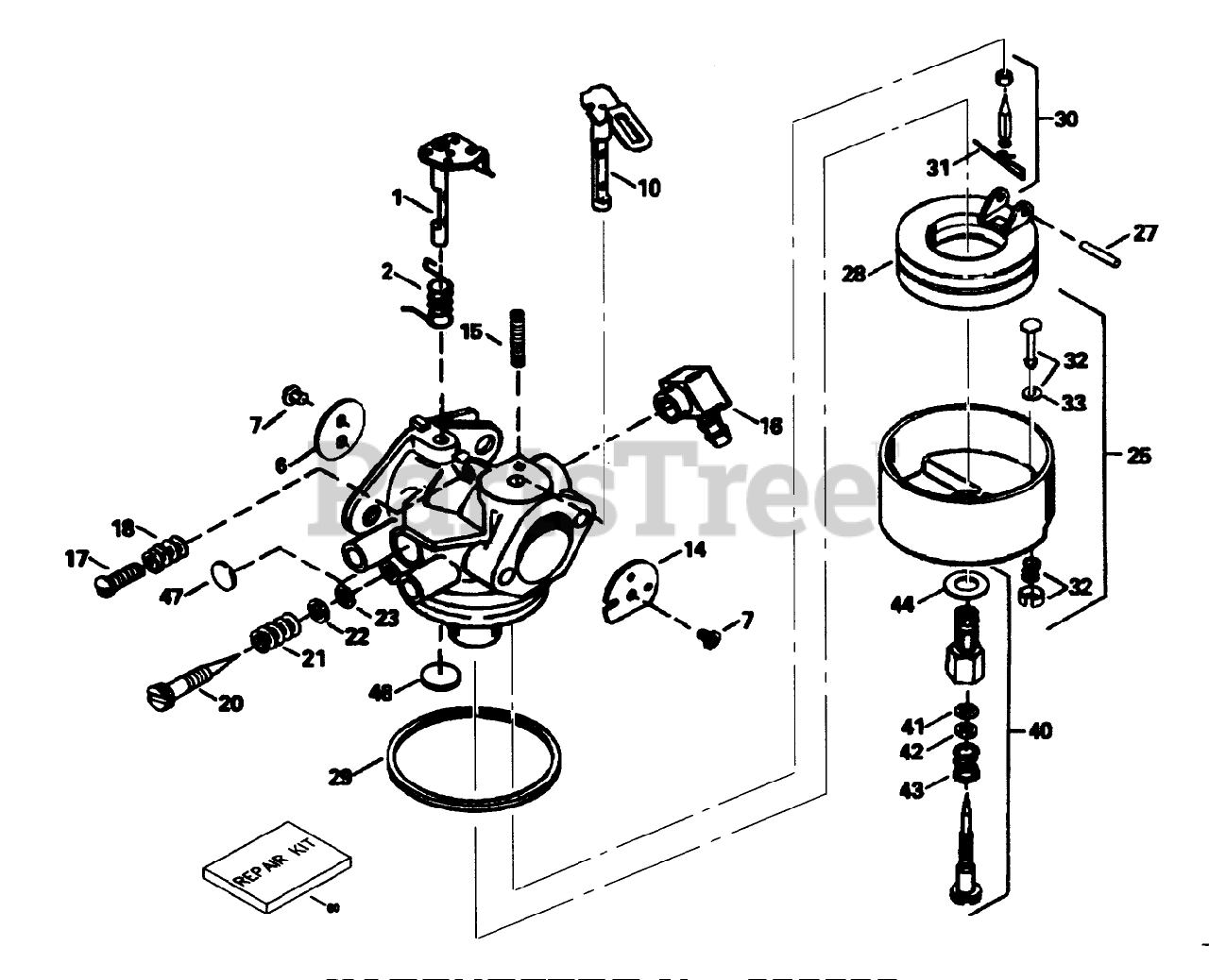

Carburetor No. 632536 Parts Diagram

  • Title

1

Toro 632512

Throttle-Shaft Lever Asm

$

$

Currently unavailable

2

Toro 631970

Spring-Return, Throttle

$

$

Currently unavailable

6

Toro 632517

Shutter-Throttle

$

$

Currently unavailable

7

Toro 650506

Screw-Shutter

$

$

Currently unavailable

10

Toro 632513

Choke Shaft Lever ASM

$

$

Currently unavailable

14

Toro 632514

Choke Shutter

$

$

Currently unavailable

15

Toro 630735

Spring-Positioning, Choke

$

$

Currently unavailable

16

Toro 631775

Fitting-Fuel

$

$

Currently unavailable

17

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

18

Toro 630766

Spring-Tension

$

$

Currently unavailable

20

Toro 632281

Screw-Idle Mix

$

$

Currently unavailable

21

Toro 630766

Spring-Tension

$

$

Currently unavailable

22

Toro 630739

Washer

$

$

Currently unavailable

23

Toro 630740

ORing

$

$

Currently unavailable

25

Toro 632594

Float-Asm (Incl. Ref. # 32 33)

$

$

Currently unavailable

27

Toro 631024

Shaft-Float

$

$

Currently unavailable

28

Toro 632019

Float

$

$

Currently unavailable

29

Toro 631028

O Ring-Bowl, Float

$

$

Currently unavailable

30

Toro 631021

Inlet Needle, Seat Clip Assy. (Incl. No. 13)

$

$

Currently unavailable

31

Toro 631022

Clip-Spring

$

$

Currently unavailable

32

Toro 27136A

Bowl Drain ASM

$

$

Currently unavailable

33

Toro 27554

Gasket-Plunger, Drain

$

$

Currently unavailable

40

Toro 632239

Adjustment Screw Assy.,Main (Incl. Ref. #5A,21,23 30)

$

$

Currently unavailable

41

Toro 630740

ORing

$

$

Currently unavailable

42

Toro 630739

Washer

$

$

Currently unavailable

43

Toro 630738

Spring

$

$

Currently unavailable

44

Toro 27110

Washer-Bowl Nut

$

$

Currently unavailable

47

Toro 630748

Plug-Welch, Idle Mixture Well

$

$

Currently unavailable

48

Toro 631027

Plug-Welch, Atmospheric Vent

$

$

Currently unavailable

60

Toro 632347

Kit-Repair

$

$

Currently unavailable

Toro 632536

Carburetor (Incl. Ref. #184)

Note: Not illustrated

$

$

Currently unavailable
