38599 - Gravely 48" Snow Blower for 4-Wheel Tractor BLOWER HOUSING Parts Diagram

48" Snow Blower for 4-Wheel Tractor

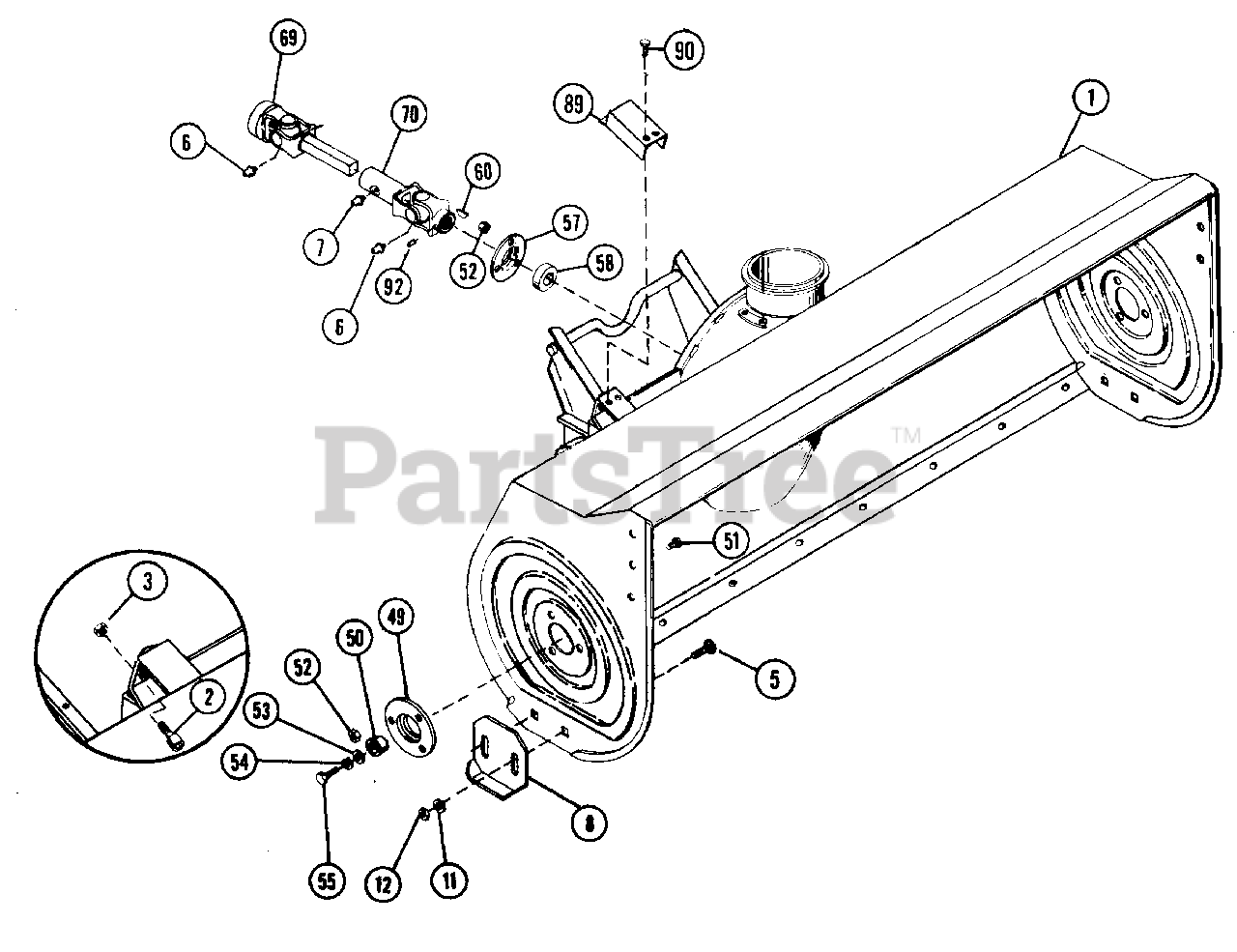

BLOWER HOUSING Parts Diagram

  • Title

1

Gravely 038823

G-40 INCH SNO THRO HOUSING
(Superseded to 03328600)

$

$

Not available

1

Gravely 037520

G-48 INCH SNO THRO HOUSING
(Superseded to 03333200)

$

$

Not available

2

Gravely 036885

SCR-SKH 10-24X.38
(Superseded to 05915600)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 036886

NUT-LK-DUAL FACE 10-24 YWZC
(Superseded to 06530600)

$0.99

$

In Stock, Qty 10

0

5

Gravely 126227

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

8

Gravely 036883

RUNNER - SKID SHOE
(Superseded to 03075553)

$40.99

$

Usually ships in 4-12 days

0

11

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 036871

BEARING SUPPORT
(Superseded to 05063300)

$30.99

$

In Stock, only 2 left!

0

50

Gravely 036872

BSHG-FLG 1.000X1.12X.62X1.50BR
(Superseded to 05503500)

$13.99

$

In Stock, Qty 14

0

51

Gravely 036873

BLT-SERNK SL .25-20X.50 YWZC
(Superseded to 07028600)

$3.99

$

In Stock, only 4 left!

0

52

Gravely 424215

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

53

Gravely 036840

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

54

Gravely 131099

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

55

Gravely 180173

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

57

Gravely 036875

BEARING FLANGE
(Superseded to 03186000)

$46.99

$

Usually ships in 4-12 days

0

58

Gravely 036876

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05416000)

$16.99

$

In Stock, only 2 left!

0

60

Gravely 120502

KEY-WDRF .188X.875 HRDN #11
(Superseded to 06608200)

$3.99

$

In Stock, only 1 left!

0

69

Gravely 038819

SHAFT,PROP. SQ BAR
(Superseded to 03328400)

$

$

Not available

70

Gravely 038818

U-JOINT-FEMALE
(Superseded to 03328300)

$

$

Not available

89

Gravely 037548

COVER

$

$

Not available

90

Gravely 180016

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

92

Gravely 102592

SCR-SET .38-16X.38 SKHCUP OH
(Superseded to 06004000)

$2.99

$

Usually ships in 4-12 days

0
