38605 (522) - Toro 22" Power Throw Snow Thrower (SN: 270000001 - 270004504) (2007) Electric Starter No. 33290E Tecumseh LH195SA - 67435V Parts Diagram

22" Power Throw Snow Thrower

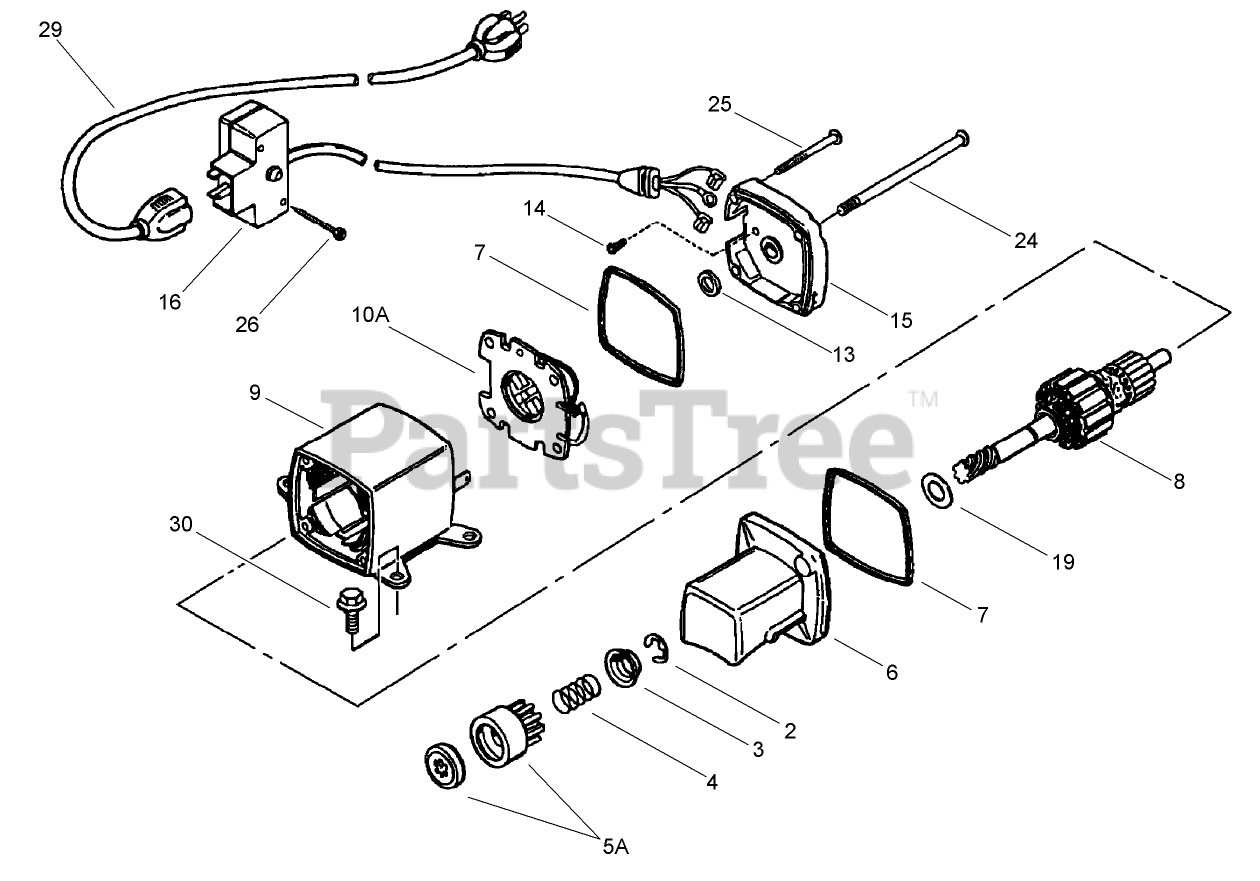

Electric Starter No. 33290E Tecumseh LH195SA - 67435V Parts Diagram

  • Title

Toro 33290E

Starter-Electric (110 Volt)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

2

Toro 31749

Retainer-Ring

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

3

Toro 33522

Retainer-Spring

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

4

Toro 33769

Spring-Anti Drift

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

5A

Toro 37332

Nut and Gear ASM (Includes 2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

6

Toro 35461

Cap Assembly (Incl. Ref. #7)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

7

Toro 35450

O-Ring

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

8

Toro 35912

Armature

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

9

Housing ASM (Must Purchase Complete Motor)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

9

Housing ASM (Must Purchase Complete Motor)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

10A

Toro 35452A

Brush Card ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

13

Toro 590500

Washer-Thrust

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

14

Toro 33441

Screw-Ground

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

15

Toro 35453

Cap Assembly (Incl. Ref. #7)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

16

Toro 35454

Box Assembly-Switch (Incl. Ref. #26)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

19

Toro 35911

Washer-Thrust

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

19

Toro 35911

Washer-Thrust

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

24

Toro 35462

Bolt-Case

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

25

Toro 35456

Screw-Ground

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

26

Toro 650819

Screw

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

26

Toro 651032

Screw (12-16 x 5/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

29

Toro 32450B

Cord-Extension (10-6)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

30

Toro 650759

Screw (T-30, 1/4-20 x 23/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable
