38605 (522) - Toro 22" Power Throw Snow Thrower (SN: 270000001 - 270004504) (2007) Engine Assembly Parts Diagram

22" Power Throw Snow Thrower

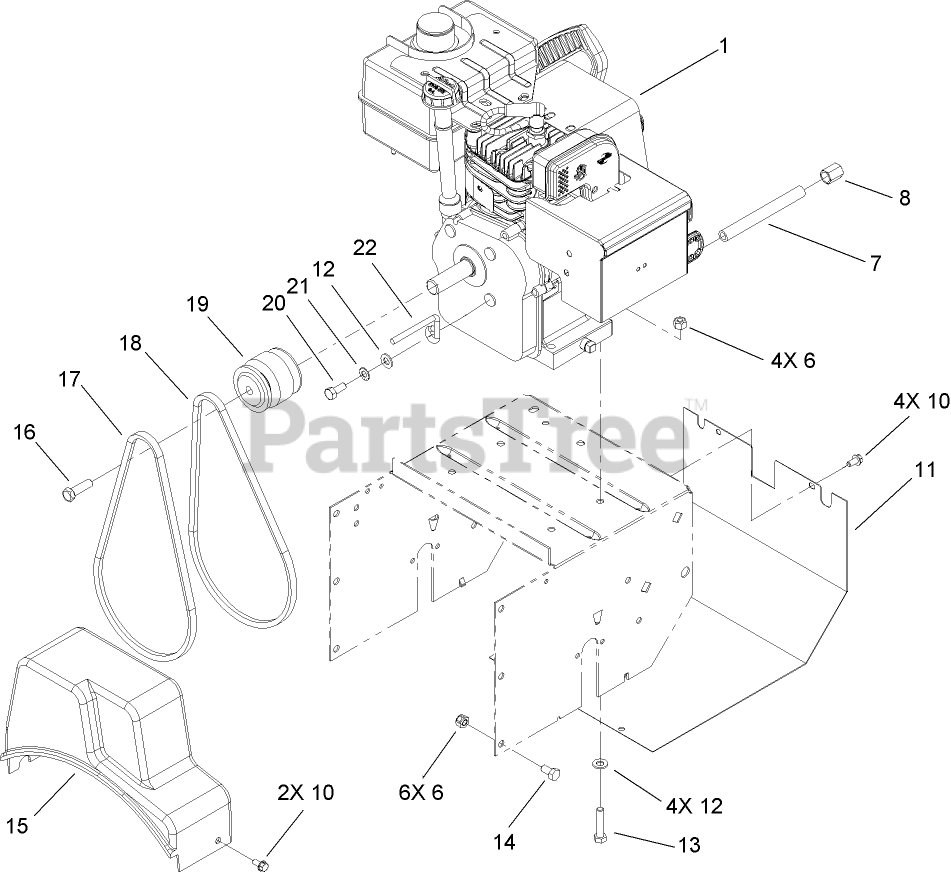

Engine Assembly Parts Diagram

  • Title

1

Loose Parts Package

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

1

Loose Parts Package

Note: Not serviced separately

$

$

Not available

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 289-34

NIPPLE-PIPE

$43.99

$

Usually ships in 3-6 days

0

8

Toro 288-2

CAP-PIPE

$20.99

$

Usually ships in 3-6 days

0

10

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

11

Toro 37-6830-01

COVER-TRACTION, LOWER

$113.99

$

Usually ships in 3-6 days

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 10

0

13

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 9

0

14

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

15

Toro 37-6900

COVER-BELT

$77.99

$

Usually ships in 3-6 days

0

16

Toro 43-7290

SCREW-SPECIAL

$8.99

$

Usually ships in 3-6 days

0

17

Toro 37-9080

V-BELT

$21.99

$

Usually ships in 3-6 days

0

18

Toro 37-9090

V BELT-3L, TRACTION

$15.99

$

In Stock, only 2 left!

0

19

Toro 43-7370

PULLEY-ENGINE

$334.99

$

Usually ships in 3-6 days

0

20

Toro 3210-3

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

21

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

22

Toro 37-8990

RETAINER-BELT

$10.99

$

Usually ships in 3-6 days

0
