38606 (622 R) - Toro 22" Power Throw Snow Thrower (SN: 280000001 - 280999999) (2008) AUGER HOUSING ASSEMBLY Parts Diagram

22" Power Throw Snow Thrower

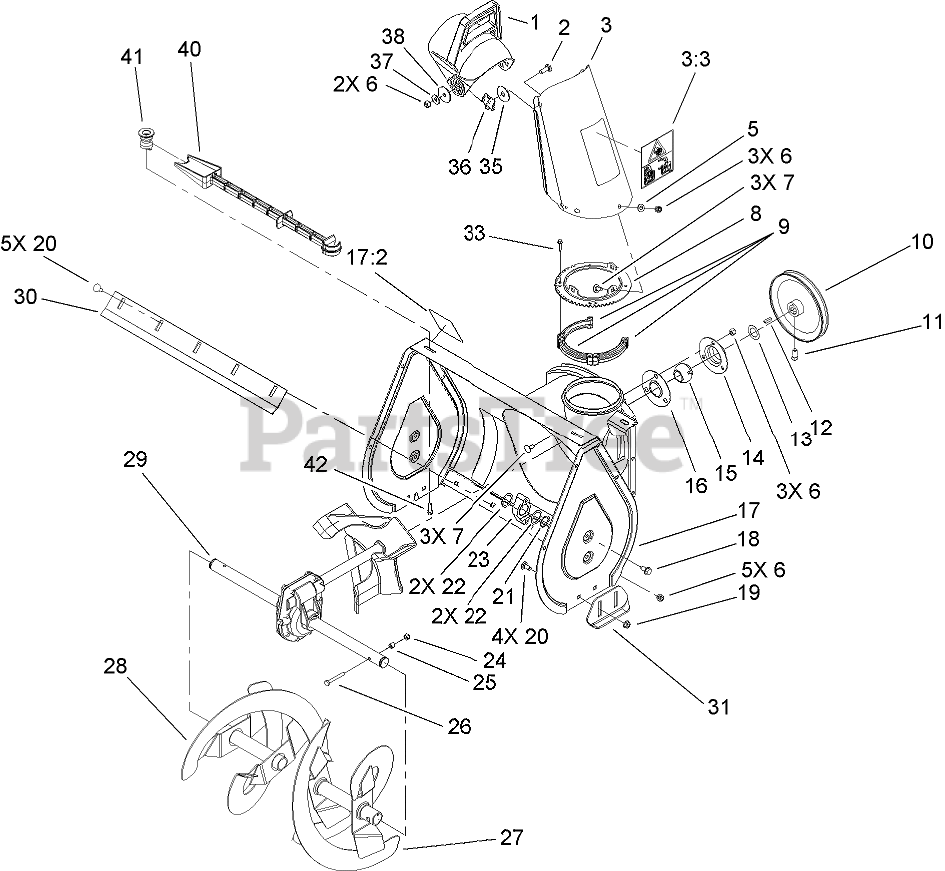

AUGER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 56-2680

CHUTE-DEFLECTOR

$25.99

$

In Stock, only 2 left!

0

2

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

3

Toro 112-6605

CHUTE ASM

$

$

Not available

3:3

Toro 112-6620

DECAL-DANGER, DISCHARGE

$

$

Not available

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

8

Toro 37-8941-03

RING-CHUTE

$81.99

$

Usually ships in 3-6 days

0

9

Toro 37-6490

RING-CHUTE, RETAINER

$20.99

$

In Stock, Qty 5

0

10

Toro 37-6890

PULLEY

$230.99

$

Usually ships in 3-6 days

0

11

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, Qty 5

0

12

Toro 3257-23

KEY-WOODRUFF

$7.99

$

In Stock, Qty 9

0

13

Toro 3-0737

WASHER

$9.99

$

In Stock, only 2 left!

0

14

Toro 26-6110

FLANGE-CUP, BEARING

$6.99

$

In Stock, Qty 13

0

15

Toro 63-3450

BEARING-BALL

$25.99

$

In Stock, Qty 10

0

16

Toro 26-6120

FLANGE-CUP, BEARING

$4.99

$

In Stock, Qty 20+

0

17

Toro 112-6641

AUGER HOUSING ASM

$

$

Not available

17:2

Toro 107-3040

DECAL-DANGER, AUGER

$36.99

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

21

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

22

Toro 5-1550

WASHER

$7.99

$

Usually ships in 3-6 days

0

23

Toro 37-6550

BEARING-AUGER
(Superseded to 136-8685)

$78.99

$

In Stock, only 2 left!

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

25

Toro 66-8010

SPACER

$4.99

$

In Stock, Qty 11

0

26

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 98-2271-03

AUGER-LH

$232.99

$

Usually ships in 3-6 days

0

28

Toro 98-2270-03

AUGER-RH

$

$

Not available

29

Toro 37-6962

22 INCH GEAR CASE ASM

$1390.99

$

Usually ships in 3-6 days

0

30

Toro 100-3554-01

BLADE-SCRAPER

$61.99

$

In Stock, only 2 left!

0

31

Toro 40-8160-01

SKID

$26.99

$

In Stock, Qty 6

0

33

Toro 27-0220

SCREW-SPECIAL

$8.49

$

In Stock, only 4 left!

0

35

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

36

Toro 55-8950

PLATE-FRICTION

$9.49

$

In Stock, only 2 left!

0

37

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

38

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

40

Toro 110-3408

STICK-CLEANOUT

$18.99

$

In Stock, only 3 left!

0

41

Toro 110-6275

HOLDER-STICK

$8.99

$

In Stock, only 1 left!

0

42

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0
