38610 (726 TE) - Toro 26" Power Max Snow Thrower (SN: 240000001 - 240999999) (2004) AUGER AND HOUSING ASSEMBLY Parts Diagram

26" Power Max Snow Thrower

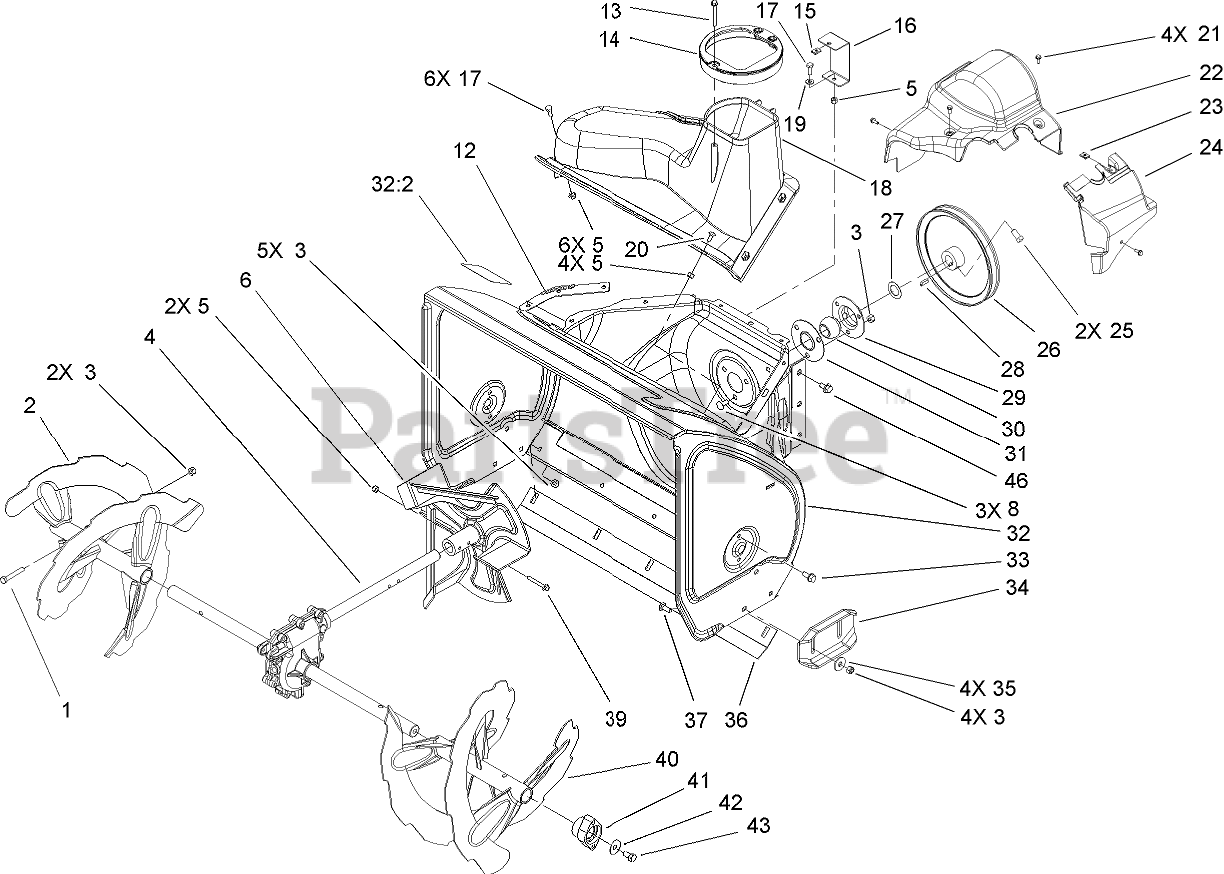

AUGER AND HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 106-7289-03

RH AUGER ASM

$269.99

$

Usually ships in 3-6 days

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 106-4580

26INCH AUGER GEARCASE ASM
(Superseded to 125-7925)

$711.99

$

Usually ships in 3-6 days

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 106-4576-03

IMPELLER ASM

$241.99

$

Usually ships in 3-6 days

0

8

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Toro 107-1017-03

SEAL-FLANGE, COVER

$5.49

$

Usually ships in 3-6 days

0

13

Toro 107-3003

SCREW-PLASTITE

$5.99

$

Usually ships in 3-6 days

0

14

Toro 107-3006

GUIDE-CHUTE

$41.99

$

Usually ships in 3-6 days

0

15

Toro 107-1013

NUT-SPEED, U-TYPE

$3.49

$

In Stock, only 1 left!

0

16

Toro 107-1014-03

BRACKET-COVER, CLIP NUT

$11.99

$

Usually ships in 3-6 days

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 105-9979

COVER
(Superseded to 108-0017)

$150.99

$

In Stock, only 1 left!

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

20

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

21

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

22

Toro 107-1001

COVER-BELT
(Superseded to 119-1563)

$25.99

$

In Stock, only 2 left!

0

23

Toro 701493

NUT-SPEED

$7.49

$

In Stock, Qty 9

0

24

Toro 107-1016

COVER-EXTENSION, BELT

$15.99

$

In Stock, only 1 left!

0

25

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, Qty 12

0

26

Toro 62-1300

PULLEY-IMPELLER
(Superseded to 136-7119)

$55.99

$

In Stock, only 2 left!

0

27

Toro 252-80

WASHER-THRUST

$10.99

$

In Stock, Qty 7

0

28

Toro 3257-23

KEY-WOODRUFF

$7.99

$

In Stock, Qty 9

0

29

Toro 26-6110

FLANGE-CUP, BEARING

$7.49

$

In Stock, Qty 20+

0

30

Toro 63-3450

BEARING-BALL

$26.99

$

In Stock, Qty 11

0

31

Toro 26-6120

FLANGE-CUP, BEARING

$4.99

$

In Stock, Qty 20+

0

32

Toro 107-3821

HOUSING-AUGER, 26 INCH

$

$

Not available

32:2

Toro 53-7670

DECAL-WARNING, AUGER
(Superseded to 94-2568)

$11.99

$

In Stock, only 3 left!

0

33

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

34

Toro 106-4588-01

SKID

$23.99

$

In Stock, Qty 10

0

35

Toro 52-2861

WASHER

$1.99

$

In Stock, Qty 20+

0

36

Toro 105-9976-01

SCRAPER-FIXED

$110.99

$

In Stock, only 2 left!

0

37

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

39

Toro 321-44

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

40

Toro 106-7299-03

LH AUGER ASM

$269.99

$

In Stock, only 1 left!

0

41

Toro 106-4570

BEARING-AUGER

$29.99

$

In Stock, only 3 left!

0

42

Toro 3-0750

WASHER

$8.49

$

In Stock, only 2 left!

0

43

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

46

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

99

Toro 281-1

PLUG-PIPE, SQH

Note: Not illustrated

$5.49

$

Usually ships in 3-6 days

0
