38610 (726 TE) - Toro 26" Power Max Snow Thrower (SN: 240000001 - 240999999) (2004) CHAIN DRIVE ASSEMBLY Parts Diagram

26" Power Max Snow Thrower

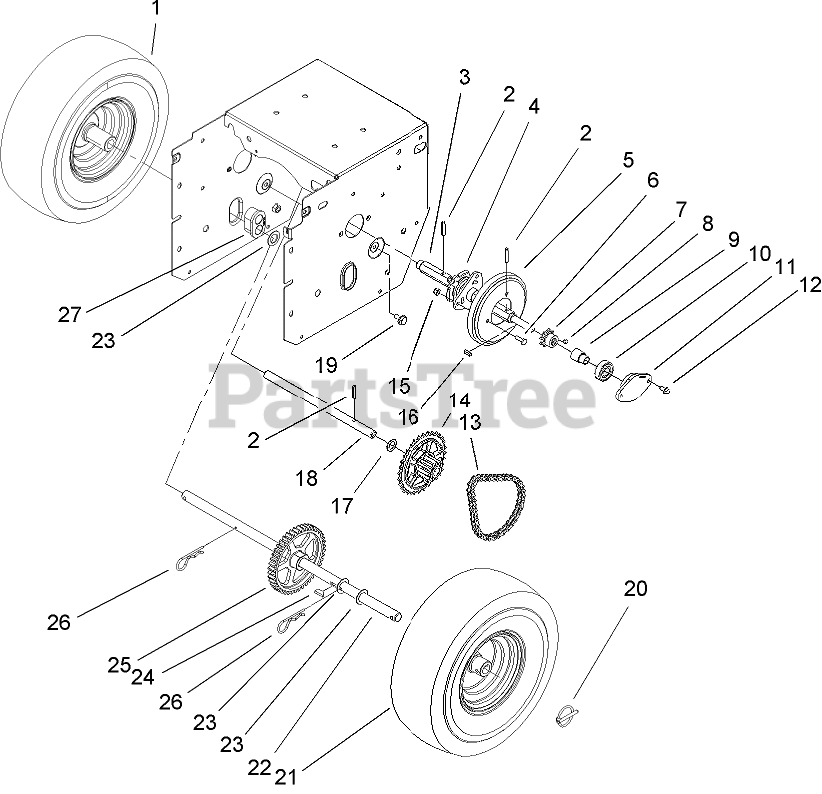

CHAIN DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 107-3042

TIRE

$107.99

$

Usually ships in 3-6 days

0

1

Toro 107-3043

RIM-TIRE

$159.99

$

Usually ships in 3-6 days

0

2

Toro 32121-9

PIN-ROLL, SLOTTED

$3.99

$

In Stock, Qty 18

0

3

Toro 106-4593

SHAFT-HEX
(Superseded to 108-7317)

$

$

Not available

4

Toro 106-4434

TRUNNION-HEX

$112.99

$

Usually ships in 3-6 days

0

5

Toro 106-4480

WHEEL-FRICTION
(Superseded to 119-1567)

$54.99

$

In Stock, only 1 left!

0

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 106-7317

SPROCKET-8 TOOTH

$41.99

$

Usually ships in 3-6 days

0

8

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

9

Toro 106-7250

SPACER-BEARING, SLEEVE

$16.99

$

In Stock, only 2 left!

0

10

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

11

Toro 106-7308

RETAINER-BEARING

$

$

Not available

12

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 10

0

13

Toro 106-7293

CHAIN-ROLLER

$72.99

$

Usually ships in 3-6 days

0

13

Toro 2710-6

LINK-CONNECTING

$21.99

$

Usually ships in 3-6 days

0

14

Toro 106-7261

SPROCKET ASM
(Superseded to 108-0013)

$102.99

$

In Stock, only 1 left!

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 94-8850

KEY-SQUARE

$2.99

$

Usually ships in 3-6 days

0

17

Toro 107-3041

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

18

Toro 106-4592

SHAFT-INTERMEDIATE

$109.99

$

Usually ships in 3-6 days

0

19

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

20

Toro 107-3039

KLIK PIN ASM

$11.99

$

In Stock, only 2 left!

0

21

Toro 107-3042

TIRE

$107.99

$

Usually ships in 3-6 days

0

21

Toro 107-3043

RIM-TIRE

$159.99

$

Usually ships in 3-6 days

0

22

Toro 106-4449

SHAFT-AXLE

$103.99

$

Usually ships in 3-6 days

0

23

Toro 3-8664

WASHER-THRUST

$7.49

$

In Stock, only 2 left!

0

24

Toro 3257-7

KEY-WOODRUFF

$10.99

$

In Stock, only 2 left!

0

25

Toro 106-4572

GEAR-AXLE, 44 TOOTH

$87.99

$

Usually ships in 3-6 days

0

26

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, Qty 7

0

27

Toro 106-4558

BEARING-AXLE

$34.99

$

Usually ships in 3-6 days

0
