38621 (826 LE) - Toro 26" Power Max Snow Thrower (SN: 250000001 - 250999999) (2005) CHAIN DRIVE ASSEMBLY Parts Diagram

26" Power Max Snow Thrower

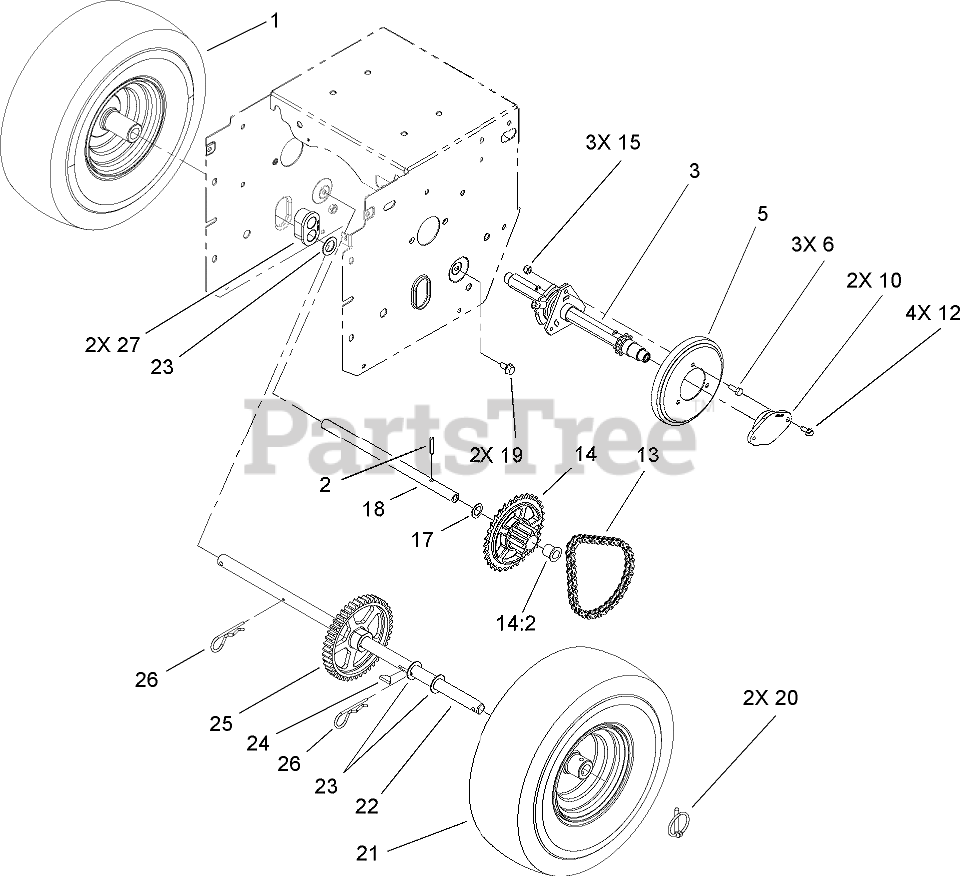

CHAIN DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 107-3042

TIRE

$88.99

$

Usually ships in 3-6 days

0

1

Toro 107-3043

RIM-TIRE

$150.99

$

Usually ships in 3-6 days

0

2

Toro 32121-9

PIN-ROLL, SLOTTED

$3.99

$

In Stock, Qty 5

0

3

HEXSHAFT ASM

Note: Not serviced separately

$

$

Not available

5

Toro 106-4480

WHEEL-FRICTION
(Superseded to 119-1567)

$51.99

$

In Stock, only 2 left!

0

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 108-2981

RETAINER-BEARING

$

$

Not available

12

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, only 2 left!

0

13

Toro 108-0016

CHAIN-ROLLER

$63.99

$

Usually ships in 3-6 days

0

13

Toro 2710-6

LINK-CONNECTING

$20.99

$

Usually ships in 3-6 days

0

14

Toro 108-0013

SPROCKET ASM

$99.99

$

In Stock, only 1 left!

0

14:2

Toro 108-2974

BUSHING-FLANGE

$5.99

$

Usually ships in 3-6 days

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 107-3041

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

18

Toro 106-4592

SHAFT-INTERMEDIATE

$104.99

$

Usually ships in 3-6 days

0

19

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

20

Toro 107-3039

KLIK PIN ASM

$11.99

$

In Stock, only 2 left!

0

21

Toro 107-3042

TIRE

$88.99

$

Usually ships in 3-6 days

0

21

Toro 107-3043

RIM-TIRE

$150.99

$

Usually ships in 3-6 days

0

22

Toro 106-4449

SHAFT-AXLE

$98.99

$

Usually ships in 3-6 days

0

23

Toro 3-8664

WASHER-THRUST

$6.99

$

In Stock, only 2 left!

0

24

Toro 3257-7

KEY-WOODRUFF

$10.99

$

In Stock, only 3 left!

0

25

Toro 106-4572

GEAR-AXLE, 44 TOOTH

$87.99

$

Usually ships in 3-6 days

0

26

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, Qty 7

0

27

Toro 106-4558

BEARING-AXLE

$34.99

$

Usually ships in 3-6 days

0
