38621 (826 LE) - Toro 26" Power Max Snow Thrower (SN: 250000001 - 250999999) (2005) ENGINE ASSEMBLY Parts Diagram

26" Power Max Snow Thrower

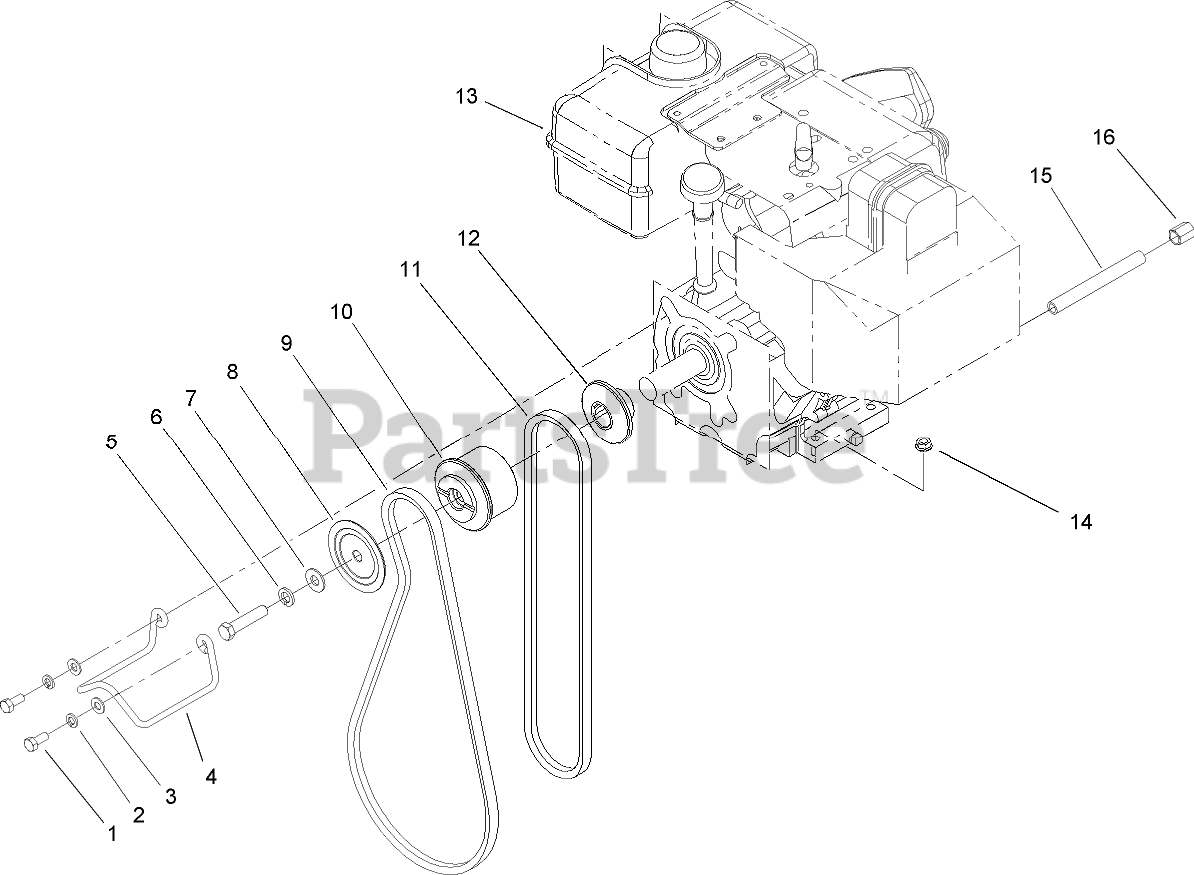

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

4

Toro 107-3835

GUIDE-BELT
(Superseded to 136-7317)

$18.99

$

In Stock, only 1 left!

0

5

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, Qty 5

0

6

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

8

Toro 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, only 1 left!

0

9

Toro 106-4498

BELT-V

$29.99

$

In Stock, Qty 10

0

10

Toro 106-7333

PULLEY-ENGINE, CENTER

$128.99

$

Usually ships in 3-6 days

0

11

Toro 94-8812

V BELT-TRACTION
(Superseded to 94-8812-SL)

$33.99

$

Usually ships in 3-6 days

0

12

Toro 106-7334

SHEAVE-HALF, TRACTION

$28.99

$

Usually ships in 3-6 days

0

13

ENGINE-TECUMSEH, HMSK-80 155724X

Note: Not serviced separately

$

$

Not available

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 289-34

NIPPLE-PIPE

$34.99

$

Usually ships in 3-6 days

0

16

Toro 288-2

CAP-PIPE

$16.99

$

In Stock, only 1 left!

0
