38635 (828 LE) - Toro 28" Power Max Snow Thrower (SN: 260000001 - 260999999) (2006) CHAIN DRIVE ASSEMBLY Parts Diagram

28" Power Max Snow Thrower

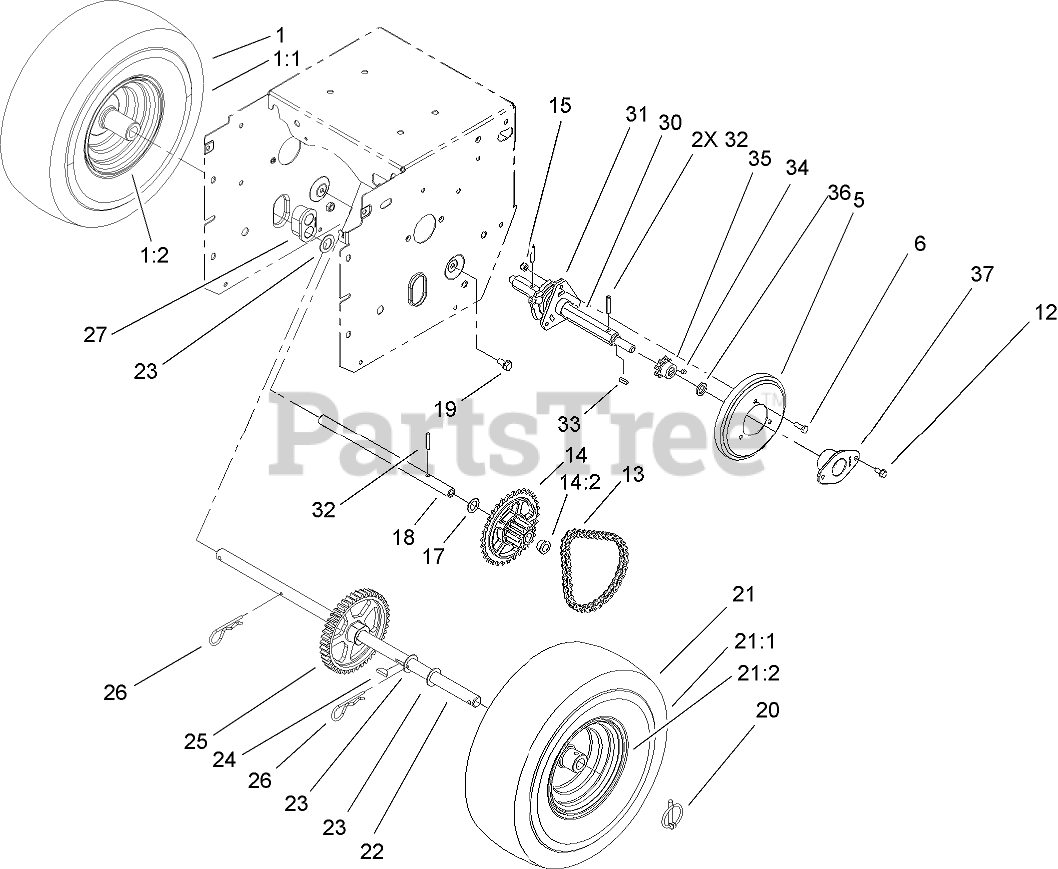

CHAIN DRIVE ASSEMBLY Parts Diagram

  • Title

1

RH WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

1:1

Toro 107-3042

TIRE

$107.99

$

Usually ships in 3-6 days

0

1:2

Toro 107-3043

RIM-TIRE

$159.99

$

Usually ships in 3-6 days

0

5

Toro 106-4480

WHEEL-FRICTION
(Superseded to 119-1567)

$54.99

$

In Stock, only 1 left!

0

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 10

0

13

Toro 108-0016

CHAIN-ROLLER

$66.99

$

Usually ships in 3-6 days

0

13

Toro 2710-6

LINK-CONNECTING

$21.99

$

Usually ships in 3-6 days

0

14

Toro 108-0013

SPROCKET ASM

$102.99

$

In Stock, only 1 left!

0

14:2

Toro 108-2974

BUSHING-FLANGE

$5.99

$

Usually ships in 3-6 days

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 107-3041

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

18

Toro 106-4592

SHAFT-INTERMEDIATE

$109.99

$

Usually ships in 3-6 days

0

19

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

20

Toro 107-3039

KLIK PIN ASM

$11.99

$

In Stock, only 2 left!

0

21

LH WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

21:1

Toro 107-3042

TIRE

$107.99

$

Usually ships in 3-6 days

0

21:2

Toro 107-3043

RIM-TIRE

$159.99

$

Usually ships in 3-6 days

0

22

Toro 106-4449

SHAFT-AXLE

$103.99

$

Usually ships in 3-6 days

0

23

Toro 3-8664

WASHER-THRUST

$7.49

$

In Stock, only 2 left!

0

24

Toro 3257-7

KEY-WOODRUFF

$10.99

$

In Stock, only 2 left!

0

25

Toro 106-4572

GEAR-AXLE, 44 TOOTH

$87.99

$

Usually ships in 3-6 days

0

26

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, Qty 7

0

27

Toro 106-4558

BEARING-AXLE

$34.99

$

Usually ships in 3-6 days

0

30

Toro 108-5054

SHAFT-HEX

$98.99

$

In Stock, only 1 left!

0

31

Toro 106-4434

TRUNNION-HEX

$112.99

$

Usually ships in 3-6 days

0

32

Toro 32121-9

PIN-ROLL, SLOTTED

$3.99

$

In Stock, Qty 18

0

33

Toro 94-8850

KEY-SQUARE

$2.99

$

Usually ships in 3-6 days

0

34

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

35

Toro 106-7317

SPROCKET-8 TOOTH

$41.99

$

Usually ships in 3-6 days

0

36

Toro 108-5059

SPACER-BUSHING

$8.49

$

In Stock, only 3 left!

0

37

Toro 108-7319

RETAINER-BEARING

$34.99

$

Usually ships in 3-6 days
