38637 C (828 OXE) - Toro 28" Power Max Snow Thrower (SN: 290000001 - 290999999) (2009) CARBURETOR AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 15D104-0113-E8 Parts Diagram

28" Power Max Snow Thrower

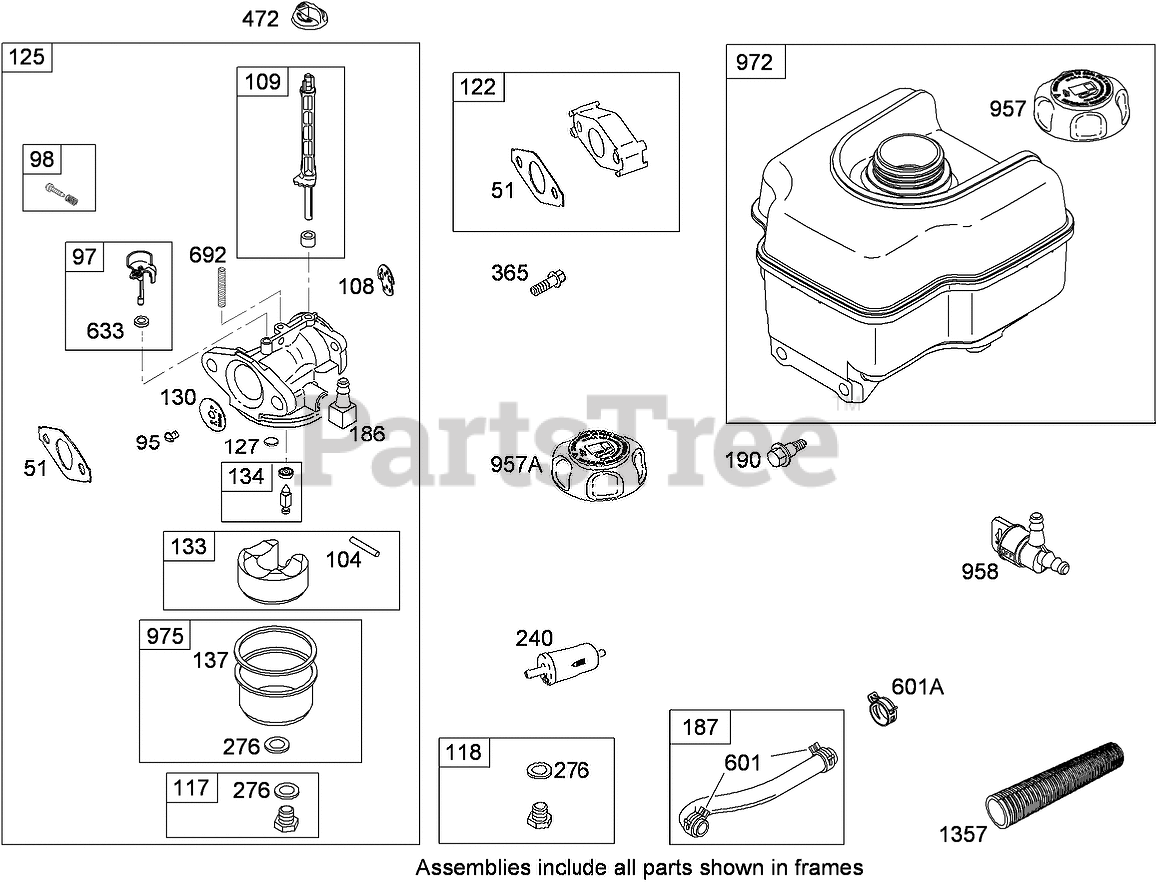

CARBURETOR AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 15D104-0113-E8 Parts Diagram

  • Title

51

Briggs & Stratton 791718

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.99

$

In Stock, only 3 left!

0

51

Briggs & Stratton 791718

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.99

$

In Stock, only 3 left!

0

51

Briggs & Stratton 791718

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$4.99

$

In Stock, only 3 left!

0

51

Briggs & Stratton 791718

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 3 left!

0

95

Briggs & Stratton 691636

Screw (Throttle Valve)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 12

0

97

Briggs & Stratton 690024

Shaft-Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

98

Briggs & Stratton 398185

Idle Speed Kit

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 9

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.49

$

In Stock, Qty 9

0

108

Briggs & Stratton 695807

Valve-Choke
(Superseded to 796993)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 1 left!

0

109

Briggs & Stratton 791957

Shaft-Choke

Note: Obtain parts from www.briggsandstratton.com

$31.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 691428

Jet-Main (Standard)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 690048

Jet-Main (High Altitude)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

122

Briggs & Stratton 791717

Spacer-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 2 left!

0

125

Briggs & Stratton 794588

Carburetor
(Superseded to 594014)

Note: Obtain parts from www.briggsandstratton.com

$97.99

$

In Stock, only 2 left!

0

127

Briggs & Stratton 691739

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 691739

Plug-Welch

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691181

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 11

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

186

Briggs & Stratton 692317

Connector-Hose

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 12

0

187

Briggs & Stratton 791867

Line-Fuel (Molded)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 2 left!

0

190

Briggs & Stratton 699220

Screw (Fuel Tank)
(Superseded to 597133)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 9

0

240

Briggs & Stratton 695666

Filter?Fuel
(Superseded to 845125)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.49

$

In Stock, Qty 20+

0

291

Briggs & Stratton 790830

Thermostat
(Superseded to 593208)

Note: Obtain parts from www.briggsandstratton.com

$25.99

$

In Stock, Qty 5

0

365

Briggs & Stratton 699484

Screw (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 4 left!

0

472

Briggs & Stratton 791958

Knob-Choke Shaft

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 791850

Clamp-Hose (Green)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

601A

Briggs & Stratton 691038

Clamp-Hose (Black)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 8

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.99

$

In Stock, Qty 8

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 7

0

972

Briggs & Stratton 694260

Tank-Fuel
(Superseded to 799863)

Note: Obtain parts from www.briggsandstratton.com

$98.99

$

In Stock, only 2 left!

0

957

Briggs & Stratton 795027

Cap-Fuel Tank

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 14

0

957A

Briggs & Stratton 792647

Cap-Fuel Tank (Fresh Start)
(Superseded to 795027)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 14

0

958

Briggs & Stratton 698180

Valve-Shut Off, Fuel

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 790559

Bowl-Float

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

Usually ships in 2-12 days

0

1357

Briggs & Stratton 794700

Sleeve-Fuel Line

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 2-12 days

0
