38640 (1028 LXE) - Toro 28" Power Max Snow Thrower (SN: 290000001 - 290999999) (2009) RECOIL STARTER ASSEMBLY NO. 590749 TECUMSEH LH358SA-159625A Parts Diagram

28" Power Max Snow Thrower

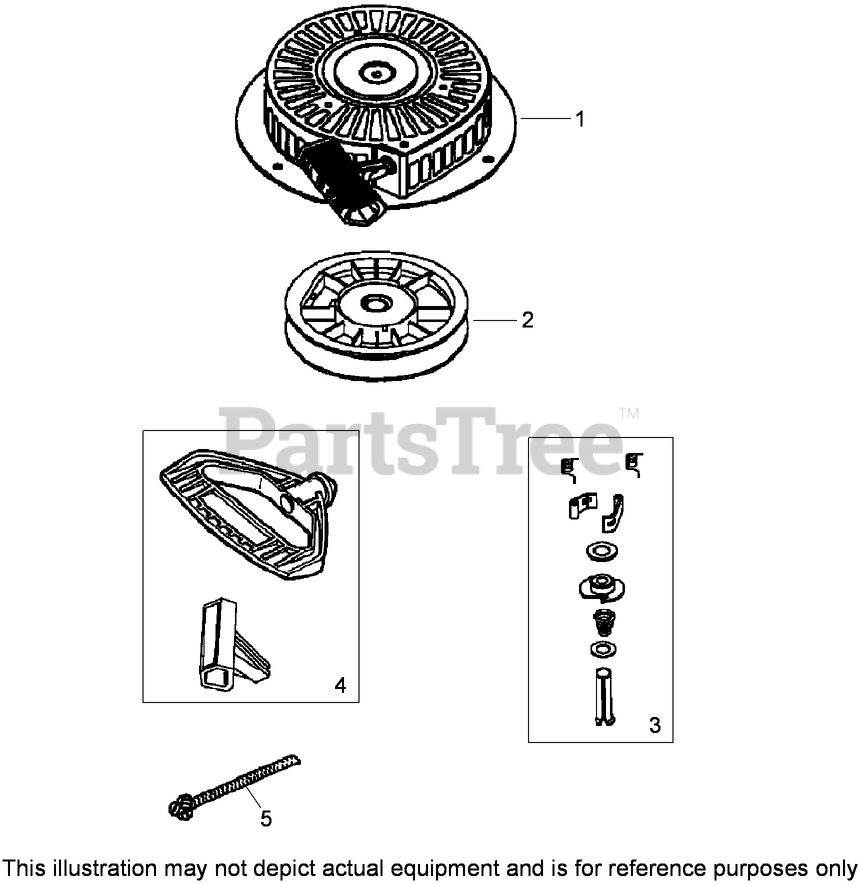

RECOIL STARTER ASSEMBLY NO. 590749 TECUMSEH LH358SA-159625A Parts Diagram

  • Title

1

Tecumseh 590749

Starter-Rewind
(Superseded to 590789)

Note: Original Tecumseh Part

$87.99

$

In Stock, only 1 left!

0

2

Tecumseh 590682

Pulley and Rewind Spring ASM

Note: Original Tecumseh Part

$

$

Not available

3

Tecumseh 590773

Repair Kit

Note: Original Tecumseh Part

$

$

Not available

4

Tecumseh 590574

Handle-Starter, Mitten Grip (Not included with starter)

Note: Original Tecumseh Part

$5.49

$

Usually ships in 3-12 days

0

5

Tecumseh 590535

Rope-Starter (98 cut to length)

Note: Original Tecumseh Part

$9.49

$

In Stock, Qty 18

0
