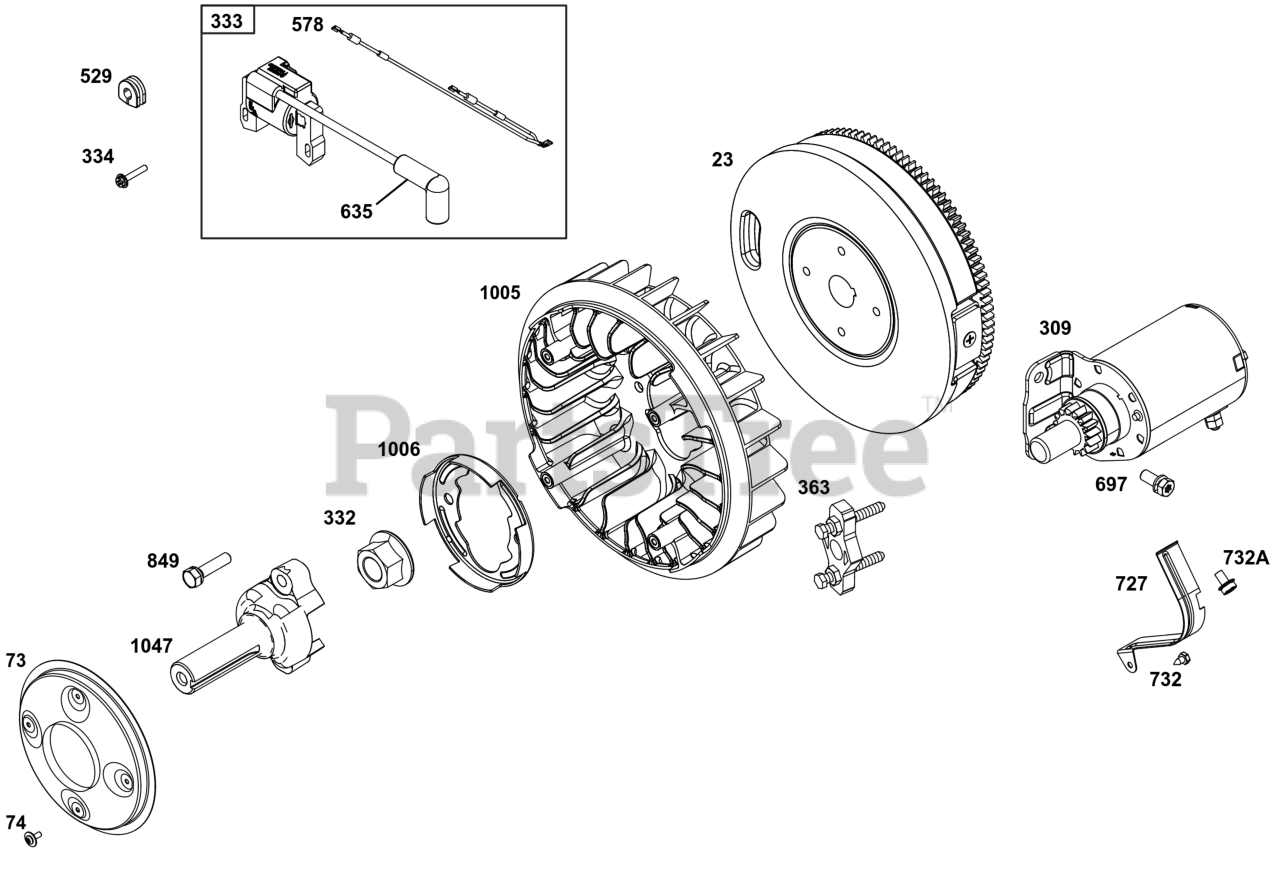

386447-0087-B5 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 809236

FLYWHEEL
(Superseded to 841050)

$301.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841582

SCREEN, Rotating

$43.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 841441

SCREW
(Superseded to 84007750)

Note: (Rotating Screen)

$3.99

$

In Stock, Qty 14

0

309

Briggs & Stratton 844717

MOTOR, Starter

$94.99

$

In Stock, Qty 11

0

332

Briggs & Stratton 690887

NUT

Note: (Flywheel)

$5.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 84003819

ARMATURE, Magneto

$75.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.99

$

In Stock, Qty 5

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$28.99

$

In Stock, only 1 left!

0

529

Briggs & Stratton 690744

GROMMET

$7.99

$

Usually ships in 2-12 days

0

578

WIRE ASSEMBLY

Note: (Part information located in Controls Group.)

$

$

Not available

635

BOOT, Spark Plug

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

697

Briggs & Stratton 806474

SCREW

Note: (Drive Cap)

$5.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 841313

COVER, Starter Drive

$16.99

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 690688

SCREW

$3.99

$

Usually ships in 2-12 days

0

732A

Briggs & Stratton 841233

SCREW

Note: (Starter Drive Cover)

$3.99

$

In Stock, Qty 5

0

849

Briggs & Stratton 846236

SCREW

Note: (Stub Shaft)

$4.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 841439

FAN, Flywheel

$38.99

$

In Stock, only 2 left!

0

1006

Briggs & Stratton 690452

RETAINER, Fan

$11.99

$

Usually ships in 2-12 days

0

1047

Briggs & Stratton 844148

SHAFT, Stub

$215.99

$

Usually ships in 2-12 days

0
