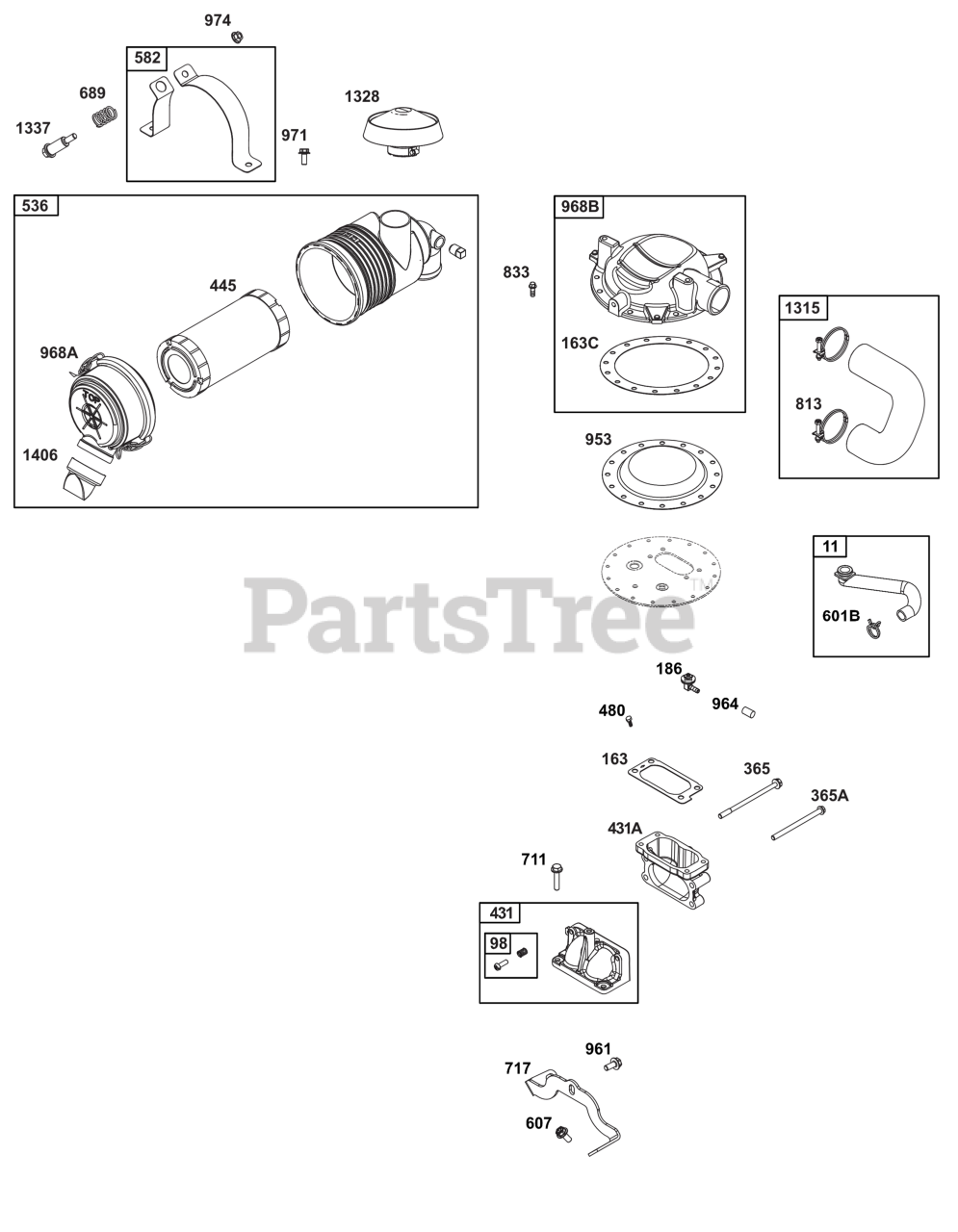

386447-0469-B5 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 806379

TUBE, Breather

$16.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 843545

KIT, Idle Speed

$6.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692087

GASKET, Air Cleaner

$5.99

$

In Stock, Qty 6

0

163C

Briggs & Stratton 841823

GASKET, Air Cleaner

$6.99

$

In Stock, only 1 left!

0

186

Briggs & Stratton 845141

CONNECTOR, Hose

$11.99

$

In Stock, only 2 left!

0

365

SCREW

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

365A

SCREW

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

431

Briggs & Stratton 808659

MANIFOLD, Intake

$77.99

$

Usually ships in 2-12 days

0

431A

ELBOW, Intake

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

445

Briggs & Stratton 820263

FILTER, A/C Cartridge

$28.99

$

In Stock, only 1 left!

0

480

Briggs & Stratton 806660

SCREW

$4.49

$

In Stock, only 1 left!

0

536

Briggs & Stratton 825118

CLEANER, Air

$198.99

$

Usually ships in 2-12 days

0

582

Briggs & Stratton 843114

CLAMP, Air Cleaner

$49.99

$

Usually ships in 2-12 days

0

601B

Briggs & Stratton 691145

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

607

Briggs & Stratton 841233

SCREW

$3.99

$

In Stock, Qty 14

0

689

Briggs & Stratton 843113

SPRING, Friction

$11.99

$

Usually ships in 2-12 days

0

711

Briggs & Stratton 691492

SCREW

$4.49

$

In Stock, Qty 12

0

717

Briggs & Stratton 843332

BRACKET, Air Cleaner

$36.99

$

In Stock, only 1 left!

0

813

Briggs & Stratton 807377

CLAMP

$6.99

$

Usually ships in 2-12 days

0

833

Briggs & Stratton 847281

SCREW
(Superseded to 691593)

Note: (Air Cleaner Mounting Strap/Stud)

$3.99

$

In Stock, Qty 5

0

953

Briggs & Stratton 845030

SCREEN, Air Cleaner

$86.99

$

Usually ships in 2-12 days

0

961

Briggs & Stratton 807084

SCREW

$3.99

$

In Stock, only 2 left!

0

964

Briggs & Stratton 807468

CAP, Carburetor

$9.99

$

In Stock, only 1 left!

0

968A

Briggs & Stratton 842620

COVER, Air Cleaner

$92.99

$

Usually ships in 2-12 days

0

968B

Briggs & Stratton 841822

COVER, Air Cleaner

$54.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Base to Carburetor/Throttle Body)

$3.99

$

In Stock, only 2 left!

0

974

Briggs & Stratton 848316

BRACKET, Muffler

Note: (Air Cleaner Clamp)

$114.99

$

Usually ships in 2-12 days

0

1315

Briggs & Stratton 843111

HOSE, Air Cleaner

$75.99

$

Usually ships in 2-12 days

0

1328

Briggs & Stratton 716244

CAP, A/C Rain

$62.99

$

Usually ships in 2-12 days

0

1337

Briggs & Stratton 843112

SCREW

Note: (Air Cleaner Clamp)

$9.49

$

Usually ships in 2-12 days

0

1406

Briggs & Stratton 842623

VALVE, Debris

$22.99

$

In Stock, only 2 left!

0
