38648 - Gravely 40" Deck for Pro-Walk Mower MOWER DRIVE Parts Diagram

40" Deck for Pro-Walk Mower

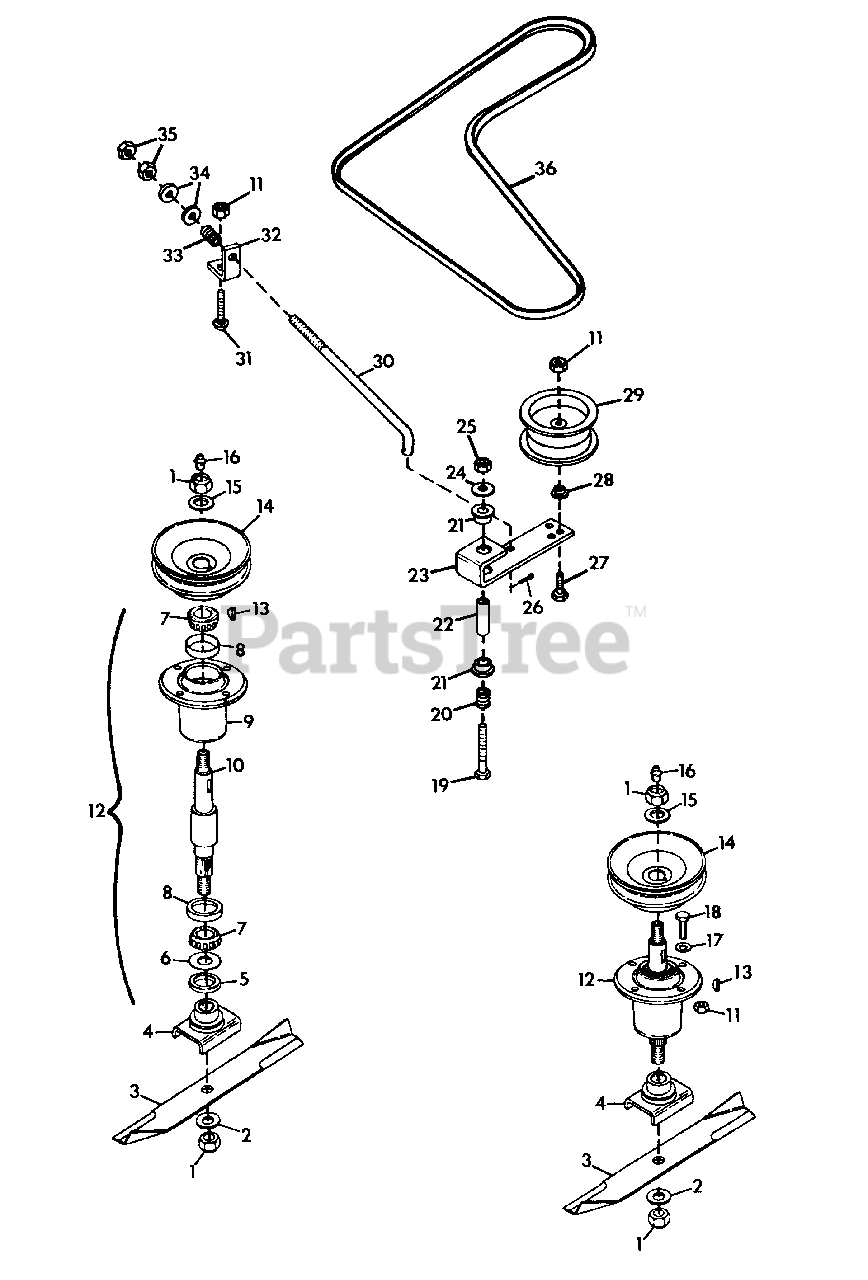

MOWER DRIVE Parts Diagram

  • Title
1

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.63

$

In Stock, Qty 20+

0

2

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.24

$

In Stock, Qty 13

0

3

Gravely 025124

BLADE
(Superseded to 08904600)

$22.30

$

In Stock, Qty 8

0

4

Gravely 023026

CRADLE, BLADE
(Superseded to 08798300)

$107.66

$

In Stock, only 2 left!

0

5

Gravely 021211

SEAL, STEEL
(Superseded to 08722600)

$15.37

$

Usually ships in 4-12 days

0

6

Gravely 020743

WASHER, FLAT .975X1.970X.030
(Superseded to 06426900)

$3.63

$

In Stock, only 3 left!

0

7

Gravely 038110

BEARING, CONE
(Superseded to 05406900)

$17.83

$

Usually ships in 4-12 days

0

8

Gravely 038109

BEARING, CUP
(Superseded to 05407000)

$16.71

$

In Stock, Qty 20+

0

9

Gravely 021215

HOUSING, BEARING
(Superseded to 08722700)

$116.16

$

Usually ships in 4-12 days

0

10

Gravely 034603

SHAFT, SPINDLE
(Superseded to 58802900)

$116.16

$

Usually ships in 4-12 days

0

11

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.24

$

In Stock, Qty 17

0

12

Gravely 034605

ASSEMBLY, SPINDLE
(Superseded to 58803600)

$222.99

$

In Stock, Qty 5

0

13

Gravely 124553

KEY, WOODRUFF 1/4X1 HARD
(Superseded to 06608900)

$3.63

$

In Stock, Qty 5

0

14

Gravely 034282

SHEAVE, SPINDLE
(Superseded to 08946700)

$162.28

$

Usually ships in 4-12 days

0

15

Gravely 033845

WASHER, FLAT .687X1.312X.122
(Superseded to 06427400)

$3.08

$

In Stock, Qty 15

0

16

Gravely 411010

FITTING, LUBE 1/8 NPT
(Superseded to 07012500)

$3.58

$

In Stock, Qty 10

0

17

Gravely 120388

WASHER, FLAT .438X1.00X.083
(Superseded to 06401008)

$2.24

$

In Stock, Qty 20+

0

18

Gravely 180124

BOLT, HEX 3/8-16X1.250
(Superseded to 05901724)

$2.18

$

In Stock, only 3 left!

0

19

Gravely 180191

BOLT, HEX 1/2-13X3.25
(Superseded to 05901634)

$3.63

$

In Stock, only 1 left!

0

20

Gravely 020444

SPRING, COMPRESSION 1X.80X36 LB/N
(Superseded to 08329100)

$13.36

$

In Stock, only 1 left!

0

21

Gravely 010174

BUSHING, NYLON .760X1.00X.600
(Superseded to 05518400)

$3.63

$

In Stock, Qty 5

0

22

Gravely 034119

SPACER
(Superseded to 08820500)

$14.70

$

In Stock, only 1 left!

0

23

Gravely 034120

ARM, IDLER PIVOT
(Superseded to 08905900)

$81.11

$

Usually ships in 4-12 days

0

24

Gravely 415543

WASHER, FLAT .531X1.250X.100
(Superseded to 06441000)

$2.52

$

In Stock, Qty 20+

0

25

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.63

$

In Stock, Qty 20+

0

26

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$1.96

$

In Stock, Qty 11

0

27

Gravely 180132

BOLT, HEX 3/8-16X2.25
(Superseded to 05901640)

$3.63

$

In Stock, Qty 9

0

28

Gravely 024815

BUSHING
(Superseded to 05515800)

$8.89

$

In Stock, only 4 left!

0

29

Gravely 034286

PULLEY, IDLER
(Superseded to 07327800)

$67.02

$

In Stock, Qty 20+

0

30

Gravely 021111

ROD, IDLER
(Superseded to 08598300)

$41.31

$

In Stock, only 1 left!

0

31

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK
(Superseded to 06200235)

$2.80

$

In Stock, Qty 20+

0

32

Gravely 034287

BRACKET, BELT TENSIONER
(Superseded to 08802700)

$34.38

$

Usually ships in 4-12 days

0

33

Gravely 011779

SPRING, COMPRESSION 1.00X.78
(Superseded to 08327000)

$12.24

$

In Stock, Qty 8

0

34

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$2.52

$

In Stock, Qty 20+

0

35

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.12

$

In Stock, Qty 12

0

36

Gravely 038745

BELT, PRO-40 MOWER
(Superseded to 07220300)

$49.25

$

In Stock, only 1 left!

0
