38651 (1128 OXE) - Toro 28" Power Max Snow Thrower (SN: 280000001 - 280999999) (2008) Engine Assembly No. 2 Tecumseh OH318SA-221847B Parts Diagram

28" Power Max Snow Thrower

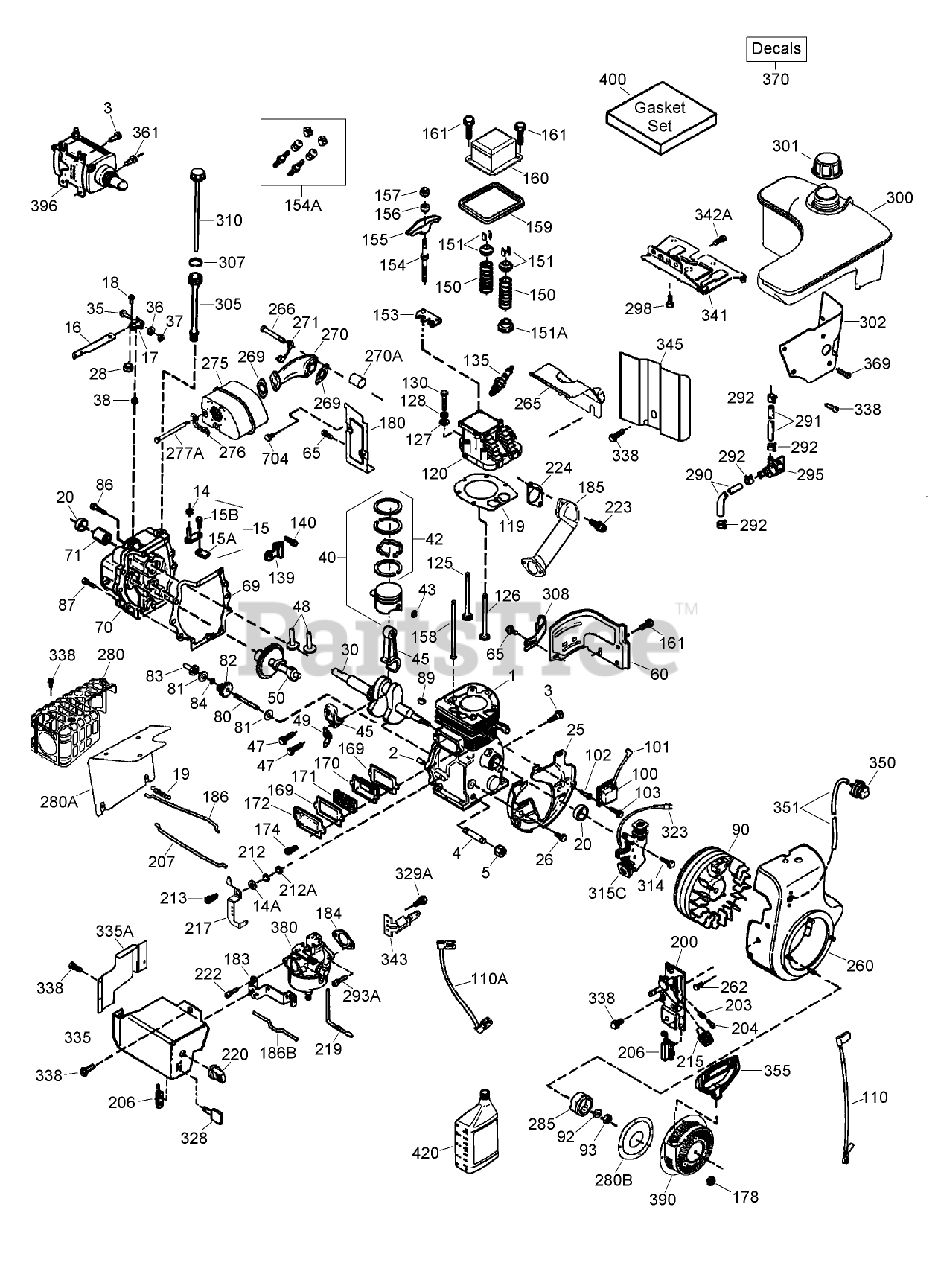

Engine Assembly No. 2 Tecumseh OH318SA-221847B Parts Diagram

  • Title

178

Toro 29752

Nut and Lock Washer (1/4-28)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

178

Toro 29752

Nut and Lock Washer (1/4-28)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

180

Toro 37101

Extension-Housing, Blower

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

183

Toro 34583A

Bracket-Choke

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

184

Toro 33263

Gasket-Carburetor To Intake Pipe

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

185

Toro 37085

Pipe-Intake

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

186

Toro 37860

Link-Governor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

186B

Toro 36653

Spring-Choke

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

200

Toro 35702

Bracket-Control (Incl. Ref. #203, 204 and 206)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

203

Toro 31342

Spring-Compression

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

204

Toro 651029

Screw (T-10, 5-40x7/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

206

Toro 610973

Terminal

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

207

Toro 37262

55106 TWO WHEEL TRA

Note: Obtain parts from www.tecumsehpower.com

$3.23

$

Usually ships in 3-6 days

0

212

Toro 30773A

Bushing

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

212A

Toro 651017

Washer

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

213

Toro 651056

Screw (10-24 X 29/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

215

Toro 35440

Knob-Control

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

217

Toro 37260

Lever-Bellcrank

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

219

Toro 35689

Rod-Choke

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

220

Toro 35438

Knob-Control
(Superseded to 742440)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

222

Toro 651081

Screw (10-32 X 15/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

223

Toro 650971

Screw (T-30, 5/16-18 X 7/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

224

Toro 33515A

Gasket-Pipe

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

260

Toro 37092A

Housing-Blower

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

262

Toro 651084

Screw (5/16-18x9/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

265

Toro 37086

Cover-Head, Cylinder

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

266

Toro 650876

Screw (5/16-18 X 1-9/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

269

Toro 35762

Gasket-Manifold, Exhaust

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

270

Toro 37263

55107 SNWTHWR ATTCH

Note: Obtain parts from www.tecumsehpower.com

$3.23

$

Usually ships in 3-6 days

0

270A

Toro 35829A

Liner-Port, Exhaust

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

271

Toro 35293

Plate-Locking

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

275

Toro 37264

Muffler

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

276

Toro 35348

Plate-Locking

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

277A

Toro 650877

Screw (5/16-18 X 4-1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

280

Toro 37265

Cylinder (Incl. 2, 20 150)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

280A

Toro 37106

Shield-Heat, Radiation

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

280B

Toro 37879

Baffle-Restrictor, Air

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

285

Toro 35985C

Cup-Starter

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

290

Toro 37964

Line-Fuel, Low Permeation (32.0 Length)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

291

Toro 37962

Line-Fuel, Low Permeation (8.62)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

292

Toro 26460

Clamp-Line, Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

293A

Toro 650517

Screw (T-30, 1/4-20 X 27-32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

295

Toro 35857

Valve-Shut Off, Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

298

Toro 650665

Screw (1/4-15x7/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

300

Toro 37099A

Tank-Fuel (Includs 292, 301)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

301

Toro 37844

Cap-Fuel (Black) (1-1/2 I D)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

302

Toro 37098

Extension-Tank, Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

305

Toro 35574

Tube-Fill, Oil

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

307

Toro 35499

O-Ring

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

308

Toro 35539

Clip-Tube, Fill

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

310

Toro 35700

Dipstick

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

314

Toro 650873

Screw (1/4-20 x 3/4)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

315C

Toro 611111

Coil-Alternator, 18 Watt (Includes 323)
(Superseded to 611113)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

323

Toro 611118

Terminal

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

328

Toro 35062

Key-Ignition

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

329A

Toro 651060

Screw (8-32 x 23/64)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

335

Toro 37096A

Cover-Carburetor (Front)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

335A

Toro 37087

Cover-Carburetor
(Superseded to 704890)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

338

Toro 650821

Screw (10-32 x 1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

341

Toro 37093

Bracket-Tank, Fuel
(Superseded to 704891)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

342A

Toro 792028

Screw (5/16-18 X 7/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

343

Toro 35079A

Bracket-Switch, Key

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

345

Toro 37097

Baffle-Heat
(Superseded to 742513)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

350

Toro 570682A

Primer ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

351

Toro 32180C

Line-Primer

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

355

Toro 590574

Handle-Starter, Mitten Grip

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

361

Toro 650990

Screw (T-30, 1/4-20x15/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

369

Toro 651032

Screw (12-16 x 5/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

370

Toro 36501

Decal-Primer, International Symbol

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

370

Toro 36534A

Instruction Decal-Caution, read owner manual

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

370

Toro 36695

Decal-Tecumseh Logo for Top of Recoil Starter
(Superseded to 704857)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

370

Toro 37226

Decal-Choke

Note: Obtain parts from www.tecumsehpower.com

$3.23

$

Usually ships in 3-6 days

0

370

Toro 37433

Decal-Start Button, Electric

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

370

Toro 37948

Decal-Hot Surfaces

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

380

Toro 640169

Carburetor (Incl. Ref.# 184)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

380

Toro 640169

Carburetor (Incl. Ref.# 184)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

390

Toro 590749

Starter-Rewind

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

396

Toro 37102

Electric Starter Motor ASM (220 Volt)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

400

Toro 37257A

Gasket Set

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

420

Toro 730226A

Oil-Engine, S A E 5W30

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

704

Toro 650738

Screw (1/4-20 X 5/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

999

Toro 730286

Winter Maintenance Kit (S A E 5W30 Oil)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

999

Toro 730286

Winter Maintenance Kit (S A E 5W30 Oil)

Note: Not illustrated

$

$

Currently unavailable

Toro 911306D

Engine-Replacement

Note: Not illustrated

$

$

Currently unavailable

Toro 911306D

Engine-Replacement

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

Toro 756339C

SHORTBLOCK

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

Toro 756339C

SHORTBLOCK

Note: Not illustrated

$

$

Currently unavailable
