38661 (926 OXE) - Toro 26" Power Max Heavy-Duty Snow Thrower (SN: 312000001 - 312999999) (2012) ENGINE ASSEMBLY Parts Diagram

26" Power Max Heavy-Duty Snow Thrower

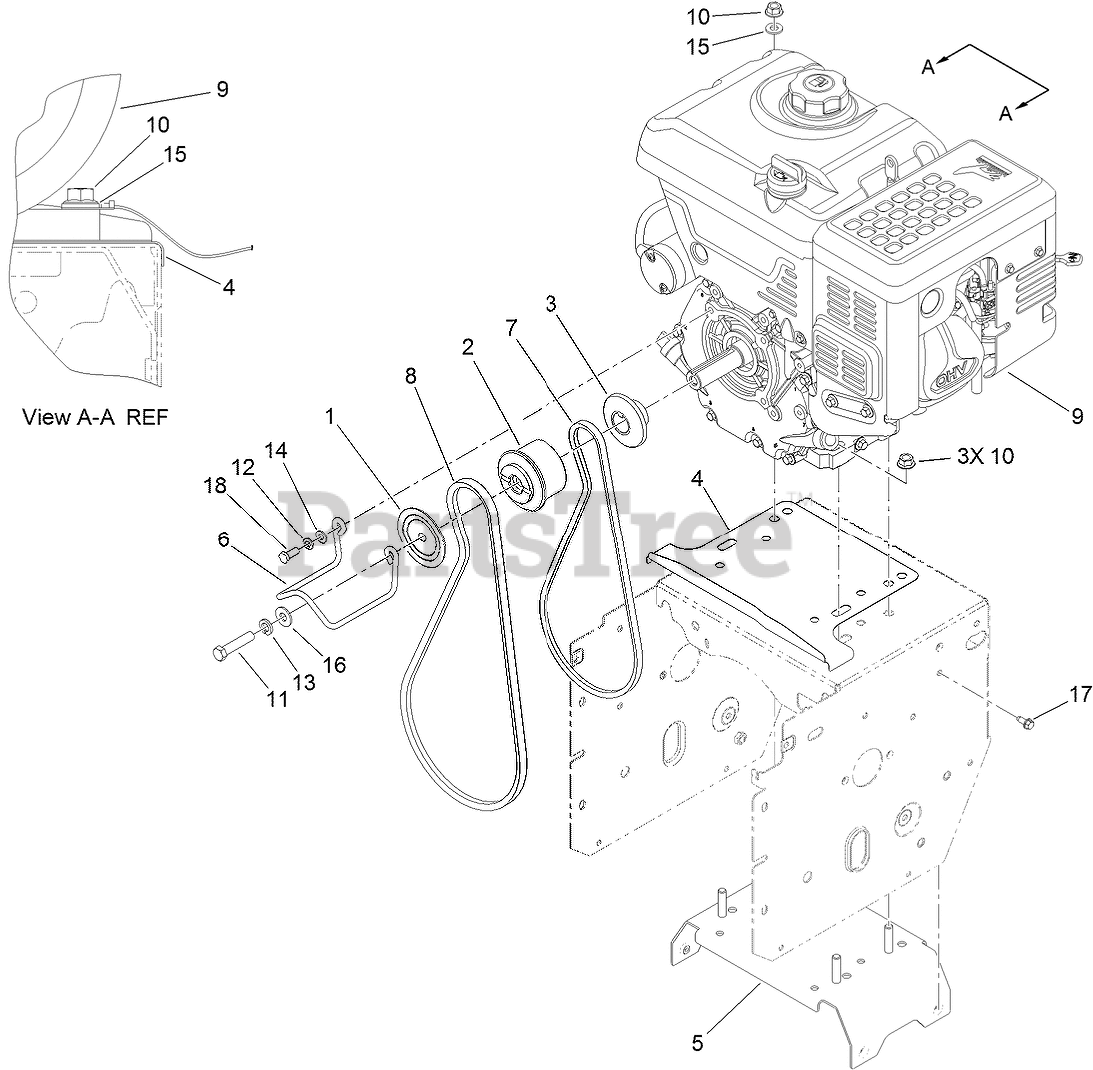

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 62-0940

SHEAVE-HALF, IMPELLER

$19.99

$

In Stock, Qty 5

0

2

Toro 106-7333

PULLEY-ENGINE, CENTER

$149.99

$

Usually ships in 3-6 days

0

3

Toro 106-7334

SHEAVE-HALF, TRACTION

$29.99

$

Usually ships in 3-6 days

0

4

Toro 117-6022-01

SHIELD-DRIVE

$12.99

$

Usually ships in 3-6 days

0

5

Toro 119-1560

FRAME BRACE ASM

$59.99

$

Usually ships in 3-6 days

0

6

Toro 119-1562

GUIDE-BELT
(Superseded to 136-8673)

$12.99

$

Usually ships in 3-6 days

0

7

Toro 119-1564

BELT-V

$23.99

$

In Stock, only 2 left!

0

8

Toro 119-1566

BELT-V

$52.99

$

Usually ships in 3-6 days

0

9

Toro 120-4423

ENGINE-175FDS-1

$1146.99

$

Usually ships in 3-6 days

0

10

Toro 120-3067

NUT-FLANGE

$1.99

$

Usually ships in 3-6 days

0

11

Toro 3212-8

SCREW-HH

$6.99

$

In Stock, only 4 left!

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, only 2 left!

0

18

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0
