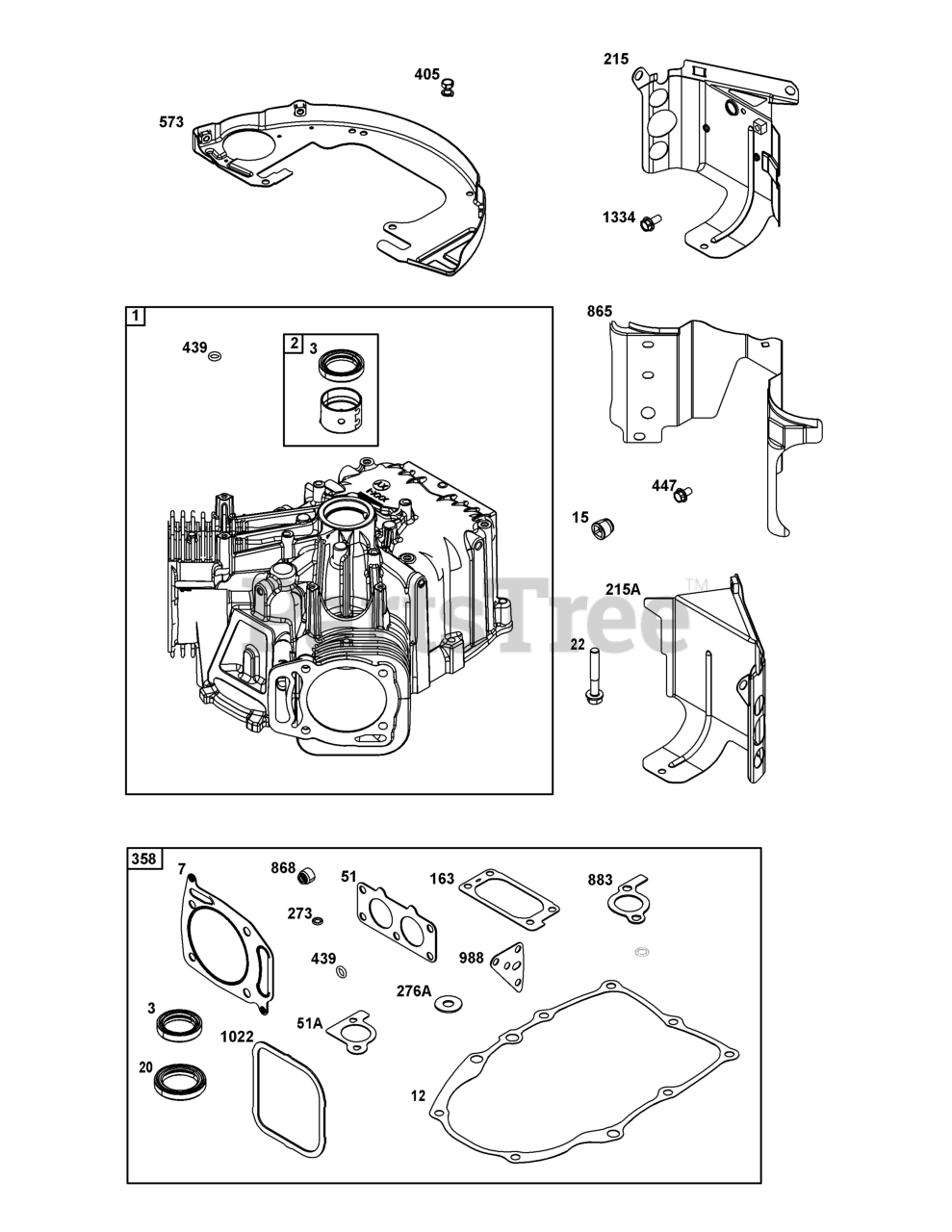

386777-0133-B5 - Briggs & Stratton Vertical Engine Cylinder Group Parts Diagram

Vertical Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 842648

CYLINDER ASSEMBLY

$604.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

KIT, Bushing/Seal

Note: (Magneto Side)

$

$

Not available

3

Briggs & Stratton 805101S

SEAL, Oil
(Superseded to 845659)

Note: (Magneto Side)

$13.99

$

In Stock, Qty 13

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

15

PLUG, Oil Drain

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

22

SCREW

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

215

Briggs & Stratton 841183

GUIDE, Air

$44.99

$

Usually ships in 2-12 days

0

215A

Briggs & Stratton 841182

GUIDE, Air

$38.99

$

Usually ships in 2-12 days

0

273

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

276A

WASHER, Sealing

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

358

Briggs & Stratton 845549

GASKET SET, Engine
(Superseded to 84006737)

Note: (Service Kits may include extra parts not specific to this engine.)

$135.99

$

In Stock, only 1 left!

0

405

Briggs & Stratton 807163

SCREW

Note: (Back Plate)

$4.49

$

Usually ships in 2-12 days

0

439

O-RING, Oil Gallery

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

447

Briggs & Stratton 841233

SCREW

Note: (Air Guide Cover)

$3.99

$

In Stock, Qty 14

0

573

Briggs & Stratton 841310

PLATE, Back

$26.99

$

Usually ships in 2-12 days

0

865

Briggs & Stratton 843768

COVER, Air Guide

$43.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

988

GASKET, Oil Adapter

Note: (Part information located in Lubrication Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1334

Briggs & Stratton 807084

SCREW

Note: (Air Guide)

$3.99

$

In Stock, only 3 left!

0
