38684 - Gravely 50" Deck for 4-Wheel Tractor MOWER DECK ASSEMBLY 50" Parts Diagram

50" Deck for 4-Wheel Tractor

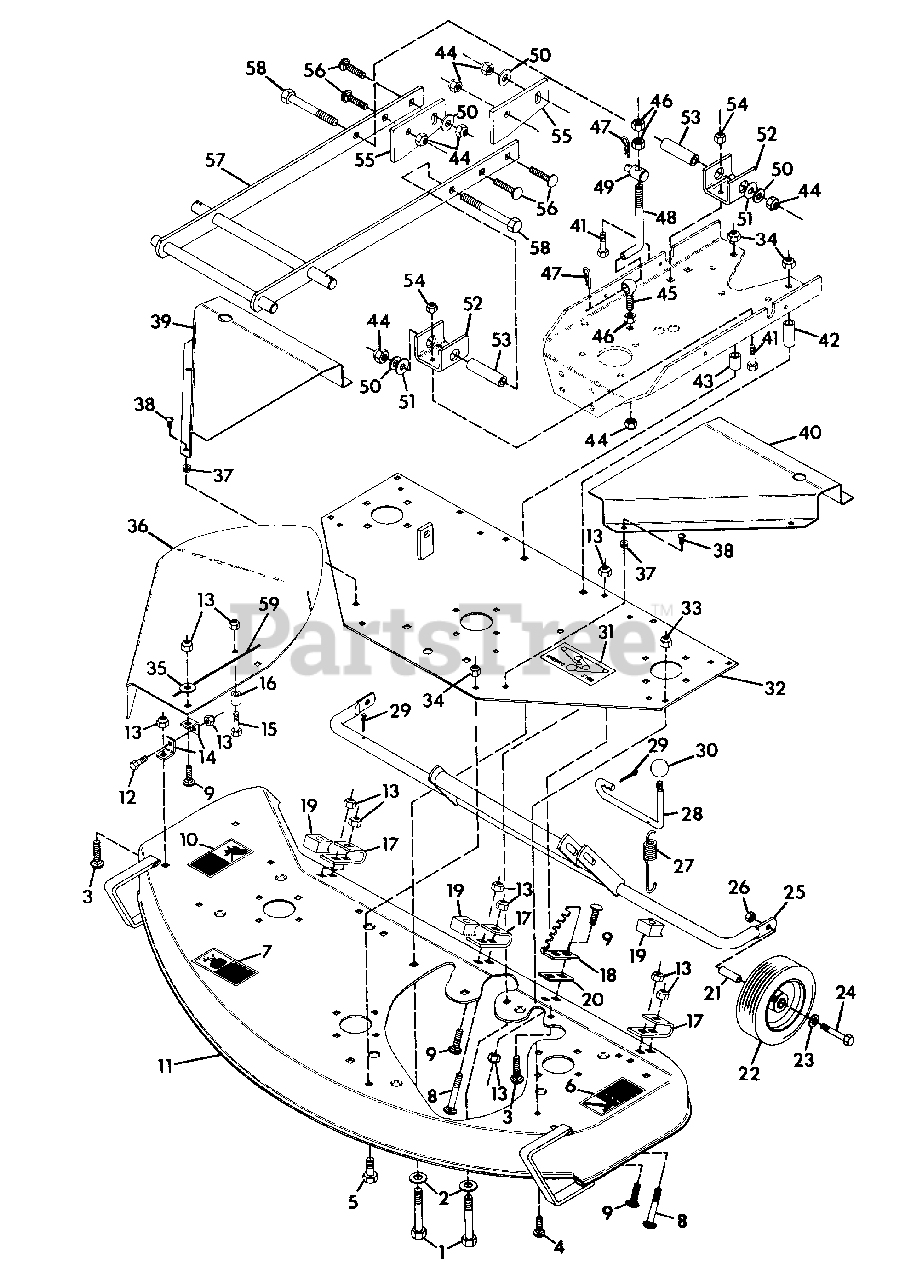

MOWER DECK ASSEMBLY 50" Parts Diagram

  • Title

1

Gravely 180193

BOLT, HEX 1/2-13X3.75
(Superseded to 05901703)

$5.99

$

In Stock, only 1 left!

0

2

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 126227

BOLT, 3/8-16X.75 RD. HD. SQ. NK.
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 126216

BOLT, 5/16-18X.75 RD. HD. SQ. NK.

$

$

Not available

5

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

8

Gravely 126419

BOLT, 3/8-16X2 RD. HD. SQ. NK.
(Superseded to 06200314)

$3.99

$

In Stock, Qty 7

0

9

Gravely 120915

BOLT, 3/8-16X1 RD. HD. SQ. NK.

$

$

Not available

10

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

11

Gravely 035181

WELDMENT, 50 INCH DECK
(Superseded to 58810100)

$517.99

$

Usually ships in 4-12 days

0

12

Gravely 180121

BOLT, HEX 3/8-16X.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

13

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

14

Gravely 034894

TAB, SPRING
(Superseded to 08804200)

$

$

Not available

15

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

16

Gravely 038696

STOP, CHUTE
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

17

Gravely 011264

BRACKET, AXLE SUPPORT
(Superseded to 03349000)

$16.99

$

Usually ships in 4-12 days

0

18

Gravely 011265

BRACKET, HEIGHT ADJUST
(Superseded to 08598000)

$41.99

$

In Stock, only 1 left!

0

19

Gravely 011260

STOP, NYLON
(Superseded to 07519500)

$10.99

$

In Stock, only 2 left!

0

20

Gravely 021462

SHIM, MOWER HT. ADJ. BKT.
(Superseded to 08517400)

$15.99

$

In Stock, only 2 left!

0

21

Gravely 034425

BUSHING, .750X.375X1.785
(Superseded to 20602600)

$64.99

$

In Stock, only 2 left!

0

22

Gravely 034426

WHEEL, GAUGE
(Superseded to 07128800)

$102.99

$

In Stock, only 3 left!

0

23

Gravely 446477

WASHER, FLAT .436X1.375X.083
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

24

Gravely 180134

BOLT, HEX 3/8-16X2.5
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

25

Gravely 011243

WELDMENT, AXLE PIVOT
(Superseded to 21339400)

$

$

Not available

26

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 10

0

27

Gravely 021471

SPRING, 40 AND 50 INCH MOWER
(Superseded to 08329500)

$14.99

$

Usually ships in 4-12 days

0

28

Gravely 010993

LEVER, HEIGHT ADJUST
(Superseded to 20062200)

$103.99

$

Usually ships in 4-12 days

0

29

Gravely 120123

PIN, COTTER .125X1.250
(Superseded to 06700212)

$0.99

$

In Stock, Qty 8

0

30

Gravely 011261

KNOB, ADJUSTMENT CONTROL
(Superseded to 20069800)

$22.99

$

Usually ships in 4-12 days

0

31

Gravely 011715

DECAL, BELT INSTALLATION
(Superseded to 05216600)

$22.99

$

Usually ships in 4-12 days

0

32

Gravely 035179

WELDMENT, SUPPORT PLATE
(Superseded to 21252200)

$225.99

$

Usually ships in 4-12 days

0

33

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

34

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

35

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 038675

SHIELD, SAFETY EXTENSION

$

$

Not available

37

Gravely 011777

GROMMET, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 11

0

38

Gravely 167257

SCREW, TAPPING 1/4-20X.5
(Superseded to 07410400)

$2.49

$

In Stock, Qty 15

0

39

Gravely 021260

COVER, PULLEY R.H.
(Superseded to 08933500)

$

$

Not available

40

Gravely 021259

COVER, PULLEY L.H.
(Superseded to 08933400)

$

$

Not available

41

Gravely 180078

BOLT, HEX 5/16-18X.875
(Superseded to 05901801)

$2.49

$

Usually ships in 4-12 days

0

42

Gravely 019348

SPACER, .510X.840X2.43
(Superseded to 08510400)

$33.99

$

Usually ships in 4-12 days

0

43

Gravely 034119

SPACER
(Superseded to 08820500)

$17.99

$

Usually ships in 4-12 days

0

44

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

45

Gravely 019350

BOLT, EYE
(Superseded to 07015300)

$32.99

$

In Stock, only 1 left!

0

46

Gravely 120238

NUT, JAM 1/2-13
(Superseded to 06500911)

$1.49

$

In Stock, Qty 15

0

47

Gravely 015691

COTTER, HAIR PIN
(Superseded to 06714900)

$0.99

$

In Stock, Qty 18

0

48

Gravely 019201

ROD, LIFT
(Superseded to 08599900)

$67.99

$

Usually ships in 4-12 days

0

49

Gravely 011262

PIVOT, MOWER LIFT
(Superseded to 08811600)

$45.99

$

In Stock, only 3 left!

0

50

Gravely 415543

WASHER, FLAT .531X1.250X.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

51

Gravely 423315

WASHER, FLAT .813X1.37X.10
(Superseded to 06401140)

$1.49

$

In Stock, Qty 15

0

52

Gravely 022415

SUPPORT, MOWER PIVOT
(Superseded to 08522800)

$34.99

$

Usually ships in 4-12 days

0

53

Gravely 022414

BUSHING, PIVOT .510X.750X2.020
(Superseded to 08522700)

$21.99

$

Usually ships in 4-12 days

0

54

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

55

Gravely 021222

PLATE, ADJUSTMENT
(Superseded to 21136800)

$37.99

$

Usually ships in 4-12 days

0

56

Gravely 126485

BOLT, 1/2-13X1.25 RD. HD. SQ. NK.
(Superseded to 06200325)

$5.99

$

In Stock, only 1 left!

0

57

Gravely 022418

WELDMENT, PIVOT ARM
(Superseded to 21156400)

$283.99

$

Usually ships in 4-12 days

0

58

Gravely 180190

BOLT, HEX 1/2-13X3.00
(Superseded to 05901737)

$4.99

$

In Stock, Qty 9

0

59

Gravely 038769

STRIPE
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

NS

Gravely 038056

DECAL, AMERICA
(Superseded to 20644900)

$

$

Not available
