38694 - Toro 36" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 290000001 - 290999999) (2009) ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH541V-FS23 Parts Diagram

36" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

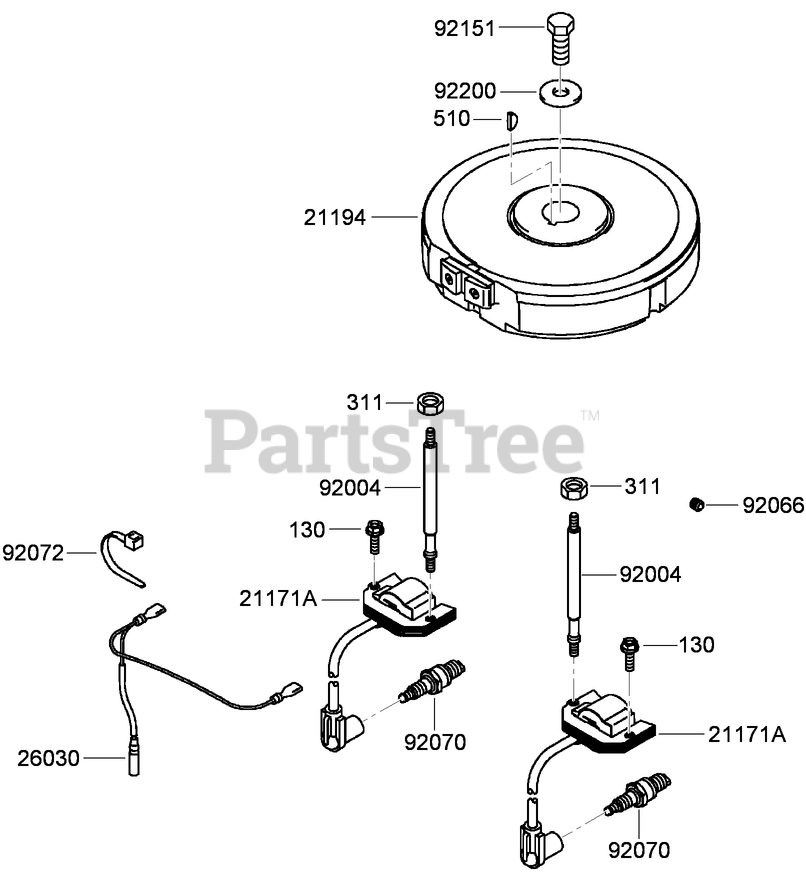

ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH541V-FS23 Parts Diagram

  • Title

130

Kawasaki 130AA0620

BOLT-FLANGED (6X20)
(Superseded to 130B0620)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

311

Kawasaki 311AA0600

NUT-HEX (6MM)
(Superseded to 16011-002)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

Key-Woodruff

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

21171A

Kawasaki 21171-7034

IGNITION COIL ASM
(Superseded to 21171-7003)

Note: Obtain parts from www.kawpowerepc.com

$83.99

$

In Stock, Qty 20+

0

21194

Kawasaki 21194-7027

FLYWHEEL
(Superseded to 21194-7002)

Note: Obtain parts from www.kawpowerepc.com

$166.99

$

Usually ships in 2-5 days

0

26030

Kawasaki 26030-7001

Harness

Note: Obtain parts from www.kawpowerepc.com

$11.99

$

In Stock, Qty 13

0

92004

Kawasaki 92004-7009

Stud
(Superseded to 92004-7026)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 12

0

92070

Kawasaki 92070-7003

SPARK PLUG (R C J 8 Y, SOLID)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

Band

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 5

0

92151

Kawasaki 92151-2097

BOLT (12X30)
(Superseded to 921547003)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7002

Washer

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

Usually ships in 2-5 days

0
