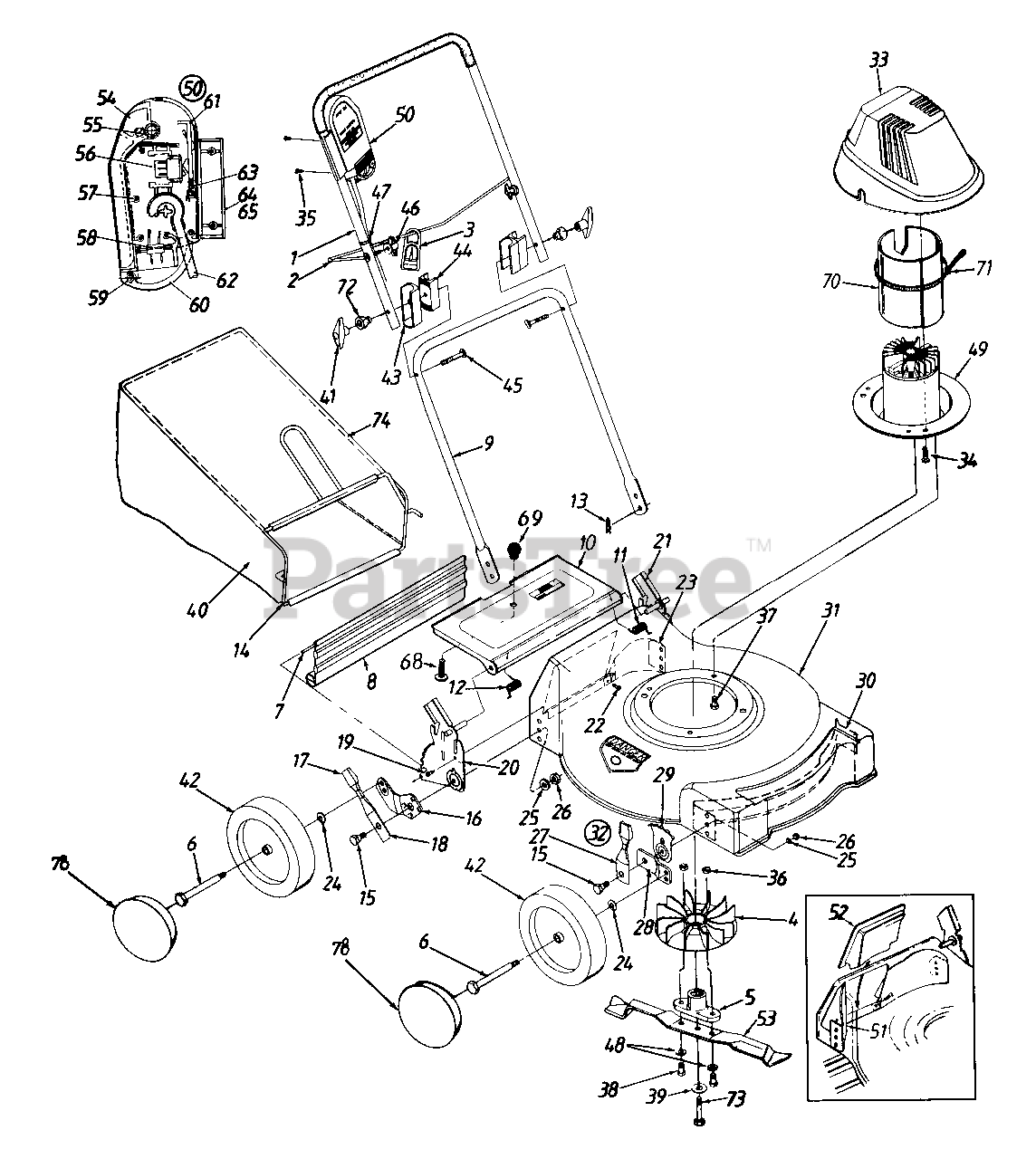

387 (185-387-100) - Cub Cadet Walk-Behind Mower, Electric (1995) Handle Assembly Parts Diagram

Walk-Behind Mower, Electric

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 749-0883

Upper Handle

Variations

Cub Cadet 749-0883-0637

UPPER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 747-0790

Cord Control Rod
(Superseded to 747-1094)

$

$

Not available

3

Cub Cadet 725-1590

Strain Relief - Cord

$

$

Not available

4

Cub Cadet 731-1270

Fan

$

$

Not available

5

Cub Cadet 748-0356

Blade Adapter

$

$

Not available

6

Cub Cadet 738-0102

Axle Bolt

$9.49

$

In Stock, Qty 11

0

7

Cub Cadet 732-0712

Rear Flap Wire

$

$

Not available

8

Cub Cadet 731-1261

Rear Flap

$23.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 749-0885

Lower Handle

$

$

Not available

10

Cub Cadet 782-7025

Chute Door
(Superseded to 782-7025-0637)

Variations

Cub Cadet 782-7025-0637

DOOR-CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 732-0677

Door Spring - L.H.
(Superseded to 932-0677)

$7.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 732-0678

Door Spring - R.H.

$7.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 714-0104

Hairpin Clip

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 764-0326

Front Catcher Frame

Variations

Cub Cadet 764-0326-0637

FRONT CATCHER FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 738-0507B

Shld. Bolt .5" Dia. x .434"

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 14765

Pivot Bar - R.H.

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 14766

Pivot Bar - L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

18

Cub Cadet 732-0417A

Spring Lever

$12.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

20

Cub Cadet 682-0514

Handle Brkt. Ass'y. - R.H.
(Superseded to 682-0516-0637)

$

$

Not available

21

Cub Cadet 682-0513

Handle Brkt. Ass'y. - L.H.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-1017

Torx. Mach. AB - Tap Scr. 1/4 x .62" Lg.

$7.99

$

In Stock, Qty 20+

0

23

Cub Cadet 782-5026

Rear Baffle
(Superseded to 782-5026-0637)

$

$

Not available

24

Cub Cadet 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0356

Bell-Wash. .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

26

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 14832

Spring lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

28

Cub Cadet 15262B

Pivot Bar

Variations

Cub Cadet 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

30

Cub Cadet 782-5025

Front Baffle
(Superseded to 782-5025-0637)

Variations

Cub Cadet 782-5025-0637

BAFFLE-FR - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 782-5025-0638

USE 782-5025-0637 BAFFLE-FR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

31

Cub Cadet 782-0054

19" Deck
(Superseded to 782-0054B)

Variations

Cub Cadet 782-0054-0483

19" DECK ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 782-0054-0498

19" DECK ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 782-0054-0629

USE 782-0054B-0629 DECK ASM-1 - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 782-0054-0637

19" DECK ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 782-0054-0638

USE 982-0054B-0638 DECK ASM-1 - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 782-0054-0640

USE 982-0054B-0638 DECK ASM-1 - CO-OP GREEN (0640)

$

$

Not available

Cub Cadet 782-0054-0662

19" DECK ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 782-0054-0665

USE 982-0054B-0638 DECK ASM-1 - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 782-0054-0691

USE 982-0054B-0638 DECK ASM-1 - BLACK JACK (0691)

$

$

Not available

$

$

32

Cub Cadet 14578

Height Adj. Ass'y. Comp. - R.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

Cub Cadet 14579

Height Adj. Ass'y. Comp. - L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$60.99

$

In Stock, Qty 7

0

33

Cub Cadet 731-1265

Motor Cover

$

$

Not available

34

Cub Cadet 710-1128

Scr. #10-16 x .75" Lg.

$

$

Not available

35

Cub Cadet 710-1150

Self-Tap. Scr. #7 x 1" Lg.

$

$

Not available

36

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 710-1006

Hex L-Wash. TT-Tap Scr. 3/8-16 x .75" Lg.
(Superseded to 910-1006)

$

$

Not available

38

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.49

$

In Stock, Qty 8

0

39

Cub Cadet 736-0452

Bell-Wash. .396" I.D. x 1.14"

$4.49

$

In Stock, Qty 16

0

40

Cub Cadet 764-0446

Grass Bag

$

$

Not available

41

Cub Cadet 720-0241

Plastic Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

42

Cub Cadet 734-1517B

Wheel Ass'y Comp.

$63.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-0484

Ball Bearing
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

Cub Cadet 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

43

Cub Cadet 731-1268

Upper Handle Insulator

$15.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 731-1267

Lower Handle Insulator

$

$

Not available

45

Cub Cadet 710-0450

Carriage Bolt 5/16-18 x 3" Lg

$5.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 726-0303

Cable Tie

$

$

Not available

48

Cub Cadet 736-0331

Bell-Wash 3/8" I D

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 818-60013

Motor, Cord & Switch Ass'y.

$

$

Not available

50

Cub Cadet 624-0032

Cord & Switch Ass'y. Comp

$

$

Not available

51

Cub Cadet 782-5004

Mulching Baffle - R.R.
(Superseded to 782-5004B)

Variations

Cub Cadet 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

Cub Cadet 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 782-5007

Mulching Baffle Plug
(Superseded to 782-5007C)

Variations

Cub Cadet 782-5007-0637

Mulching Baffle Plug - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

$48.99

$

In Stock, only 1 left!

0

53

Cub Cadet 742-0719

19" Mulching Blade
(Superseded to 942-0719)

$34.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 731-1210

Handle - Switch Actuator

$

$

Not available

55

Cub Cadet 732-0679

Spring - Switch Handle

$

$

Not available

56

Cub Cadet 725-1565

Switch
(Superseded to 925-1565)

$

$

Not available

57

Cub Cadet 710-1147

Screw #6-32 x 5" Lg.

$

$

Not available

58

Cub Cadet 729-0304

Plug Ass'y
(Superseded to 929-0304)

$

$

Not available

59

Cub Cadet 732-0680

Retainer Plug Spring
(Superseded to 932-0680)

$

$

Not available

60

Cub Cadet 731-1211

Retainer Plug

$

$

Not available

61

Cub Cadet 731-1198

Latch

$

$

Not available

62

Cub Cadet 624-0053

Cord Ass'y.

Note: (Incl Ref #58)

$

$

Not available

63

Cub Cadet 732-0681

Spring Latch

$

$

Not available

64

Cub Cadet 731-1208

Housing - Upper Half

$

$

Not available

65

Cub Cadet 731-1209

Housing - Lower Half

Note: (Not Shown)

$

$

Not available

68

Cub Cadet 710-0192

Truss Scr. #10-24 x .38" Lg

$3.49

$

In Stock, Qty 11

0

69

Cub Cadet 720-0275

Knob

$

$

Not available

70

Cub Cadet 721-0311

Insulator

$

$

Not available

71

Cub Cadet 726-0209

Cable Tie
(Superseded to 726-0230)

$25.99

$

In Stock, only 2 left!

0

72

Cub Cadet 731-1388

Insulator Knob

$

$

Not available

73

Cub Cadet 710-1251

Hex Bolt 3/8-24 x 2 5" Lg

$

$

Not available

74

Cub Cadet 764-0325

Rear Catcher Frame
(Superseded to 764-0325-0637)

Variations

Cub Cadet 764-0325-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$

$

Not available

$

$

78

Cub Cadet 731-0982A

Hub Cap
(Superseded to 731-0982C)

$10.99

$

In Stock, Qty 20+

0
