38700 - Toro Walk-Behind Rotary Power Broom (SN: 315000001 - 315999999) (2015) BROOM ASSEMBLY Parts Diagram

Walk-Behind Rotary Power Broom

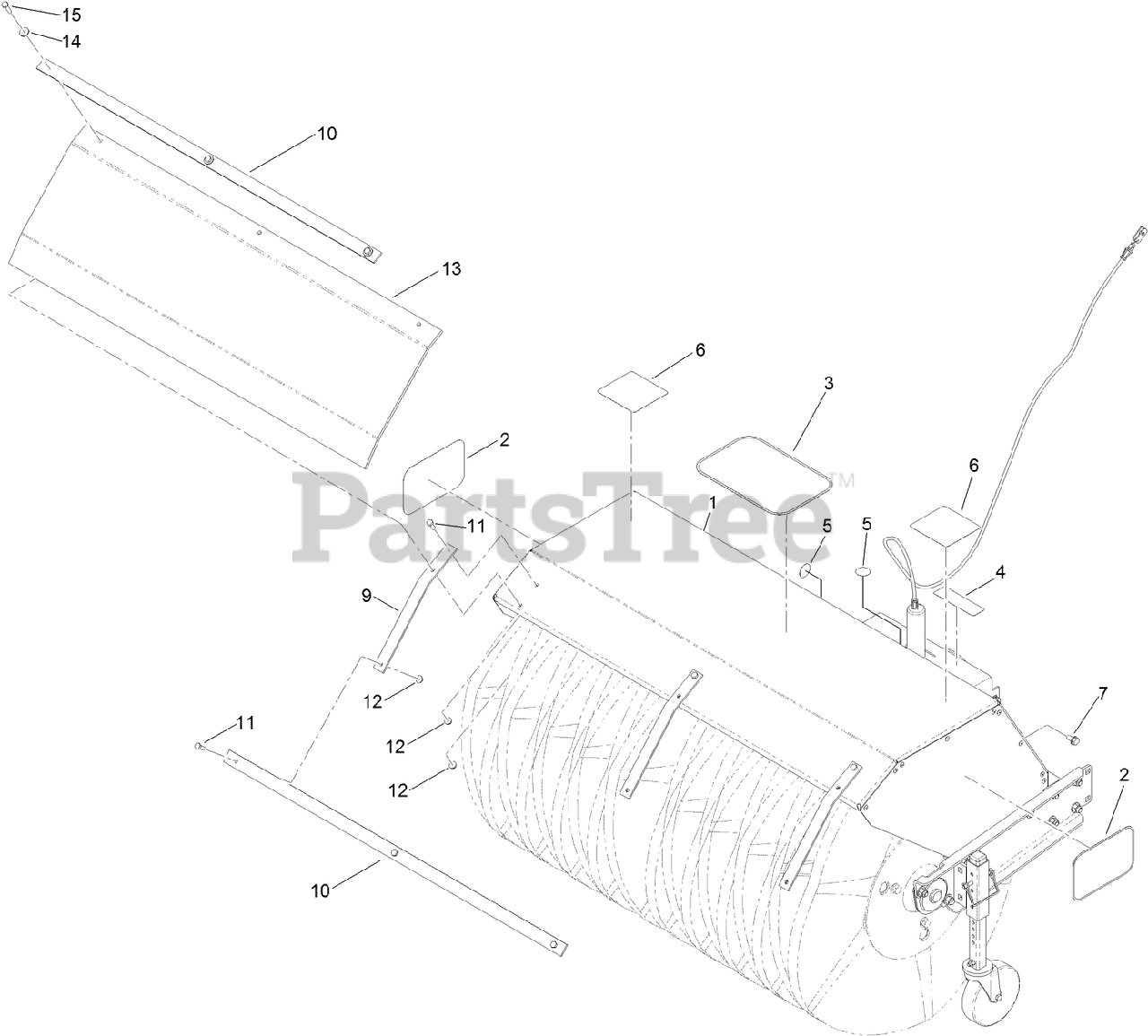

BROOM ASSEMBLY Parts Diagram

  • Title

1

BROOM ASM

Note: Not serviced separately

$

$

Not available

2

Toro 62-5550

DECAL

$11.99

$

In Stock, only 4 left!

0

3

Toro 66-6140

DECAL

$29.99

$

In Stock, only 1 left!

0

4

Toro 112-9028

DECAL-MISSING, COVER

$23.99

$

Usually ships in 3-6 days

0

5

Toro 115-2903

DECAL-GREASE

$7.99

$

Usually ships in 3-6 days

0

6

Toro 116-8140

DECAL-WARNING

$5.49

$

Usually ships in 3-6 days

0

7

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

9

Toro 116-8869-03

STRAP-SUPPORT, DEFLECTOR

$20.99

$

Usually ships in 3-6 days

0

10

Toro 116-8880-03

STRAP-SUPPORT, BROOM DEFLECTOR

$31.99

$

Usually ships in 3-6 days

0

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 116-8864

DEFLECTOR-BROOM

$76.99

$

Usually ships in 3-6 days

0

14

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 10

0
