387000x00A - Murray 38" Lawn Tractor (2003) Steering Parts Diagram

38" Lawn Tractor

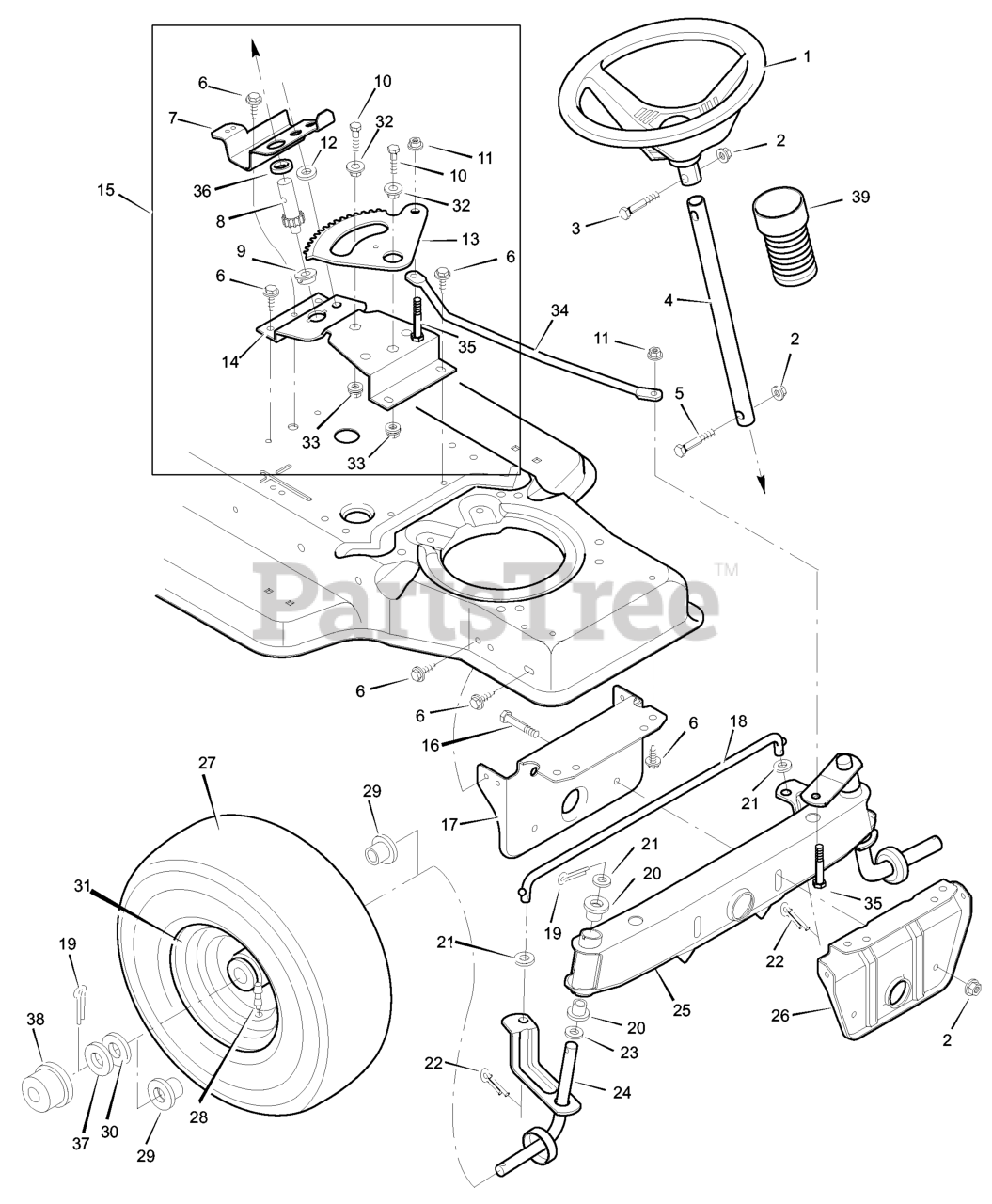

Steering Parts Diagram

  • Title

1

Murray 092078MA

Wheel, Steering

$86.99

$

Usually ships in 2-12 days

0

2

Murray 15X118MA

Nut, Hex
(Superseded to 704279)

$3.49

$

Usually ships in 2-12 days

0

3

Murray 001X66MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

4

Murray 091714 Z

Post, Steering

$

$

Currently unavailable

5

Murray 001X74MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

6

Murray 26X249MA

Screw

$

$

Not available

7

Murray 091716E701

Bracket, Sector

$

$

Currently unavailable

8

Murray 092715MA

Gear, Pinion

$21.99

$

In Stock, only 2 left!

0

9

Murray 092716MA

Bearing

$

$

Not available

10

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

11

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Murray 092564MA

Spacer

$3.99

$

Usually ships in 2-12 days

0

13

Murray 092316E701

Gear, Sector

$

$

Currently unavailable

14

Murray 091708E701MA

Bracket, Sector

$14.99

$

Usually ships in 2-12 days

0

15

Murray 402075MA

Kit, Steering Gear

$

$

Not available

16

Murray 01X146MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

17

Murray 092529E701

Support, Rear Axle

$98.99

$

Usually ships in 2-12 days

0

18

Murray 090038E701

Rod, Tie

$

$

Currently unavailable

19

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 9

0

20

Murray 092527MA

Bearing

$6.49

$

Usually ships in 2-12 days

0

21

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

22

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$4.49

$

In Stock, Qty 11

0

23

Murray 17X113MA

Washer

$3.99

$

Usually ships in 2-12 days

0

24

Murray 091828E701MA

Spindle Assembly, Right

$74.99

$

In Stock, only 1 left!

0

25

Murray 092518E701MA

Spindle Assembly, Axle & Left

$410.99

$

Usually ships in 2-12 days

0

26

Murray 092528E701

Support, Front Axle

$50.99

$

Usually ships in 2-12 days

0

27

Murray 091912MA

Tire *

$93.99

$

Usually ships in 2-12 days

0

--

Murray 407047MA

Tube

$33.99

$

Usually ships in 2-12 days

0

28

Murray 024373MA

Stem, Valve

$8.49

$

Usually ships in 2-12 days

0

29

Murray 091334

Bearing, Wheel

$22.99

$

Usually ships in 2-12 days

0

30

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 20+

0

31

Murray 094578601

Wheel & Tire Assembly

$195.99

$

Usually ships in 2-12 days

0

32

Murray 092097MA

Bearing

$8.99

$

Usually ships in 2-12 days

0

33

Murray 15X113MA

Locknut, Flange

$4.49

$

Usually ships in 2-12 days

0

34

Murray 1001649E701MA

Link, Drag

$

$

Not available

35

Murray 01X111MA

Bolt
(Superseded to 703406)

$4.99

$

In Stock, Qty 10

0

36

Murray 092280MA

Spacer, Pinion Gear

$6.99

$

Usually ships in 2-12 days

0

37

Murray 17X192MA

Washer

$5.49

$

In Stock, Qty 12

0

38

Murray 094618MA

Hub Cap

$5.99

$

In Stock, Qty 20+

0

39

Murray 91298

Bellows
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0
