387000x92A - Murray 38" Lawn Tractor (2003) Engine Mount Parts Diagram

38" Lawn Tractor

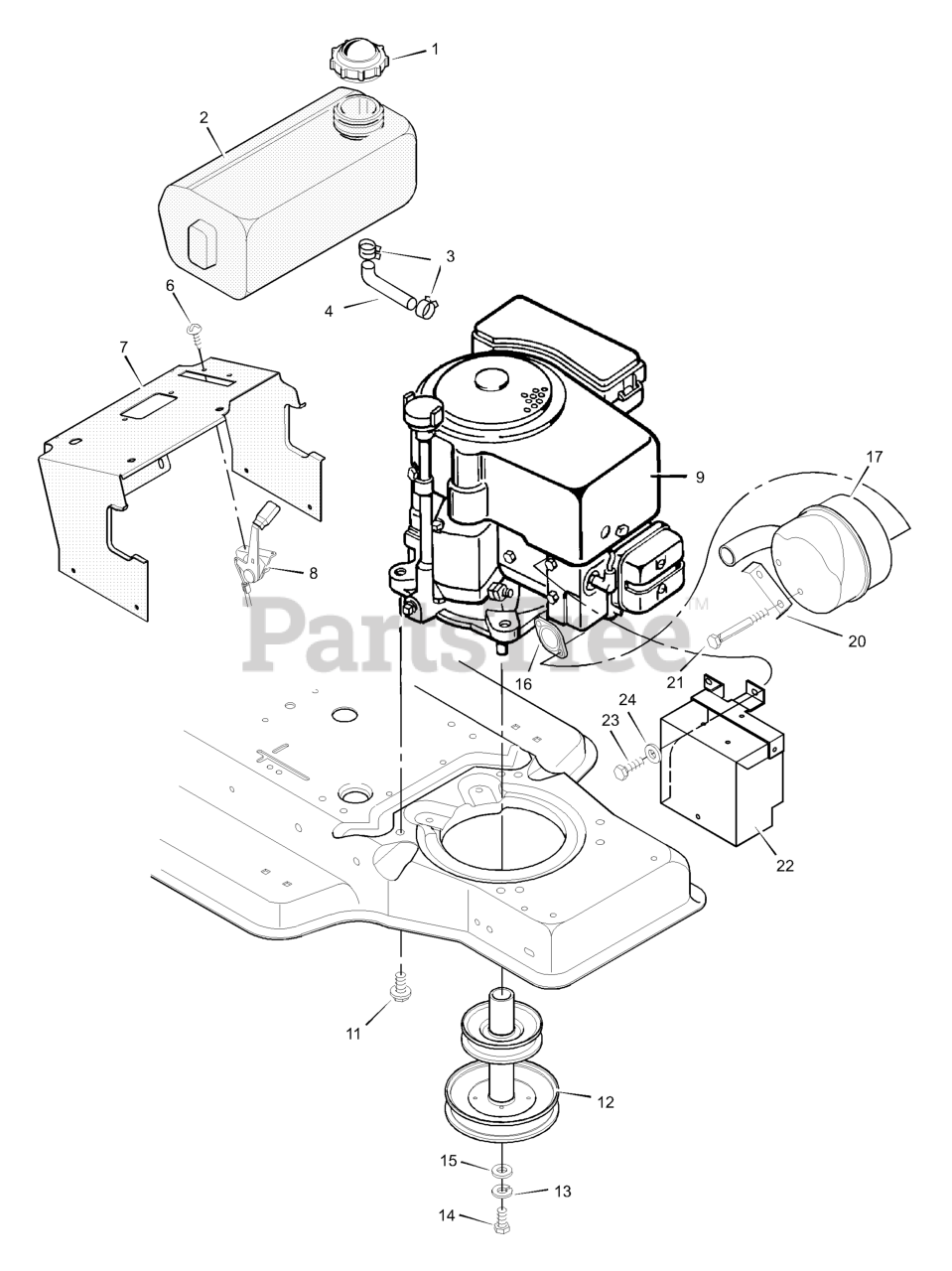

Engine Mount Parts Diagram

  • Title

1

Murray 092317MA

Fuel Cap

$11.99

$

In Stock, only 2 left!

0

2

Murray 690281

Fuel Tank

$34.99

$

Usually ships in 2-12 days

0

3

Murray 095197MA

Hose Clamp
(Superseded to 791850)

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, Qty 20+

0

4

Murray 023715

Fuel Line

Note: (Included with Ref. No. 2)

$

$

Currently unavailable

6

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 092331E701

Support, Dash

$

$

Currently unavailable

8

Murray 092371MA

Throttle Control

$40.99

$

Usually ships in 2-12 days

0

9

Engine *

$

$

Not available

11

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

Usually ships in 2-12 days

0

12

Murray 690442MA

Stack Pulley Assembly
(Superseded to 690442ZMA)

$129.99

$

Usually ships in 2-12 days

0

13

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 10

0

14

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 8

0

15

Murray 17X170MA

Washer

$

$

Not available

16

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

17

Murray 094120MA

Muffler

$55.99

$

Usually ships in 2-12 days

0

20

Murray 092378MA

Lock, Screw

$5.99

$

In Stock, Qty 5

0

21

Murray 01X134MA

Bolt

$10.99

$

In Stock, only 1 left!

0

22

Murray 690310

Shield, Heat

$5.49

$

Usually ships in 2-12 days

0

23

Murray 001X38MA

Bolt

$4.49

$

In Stock, only 3 left!

0

24

Murray 018X32MA

Washer

$3.49

$

Usually ships in 2-12 days

0
