387002x92A - Murray 38" Lawn Tractor (2004) Chassis & Hood Parts Diagram

38" Lawn Tractor

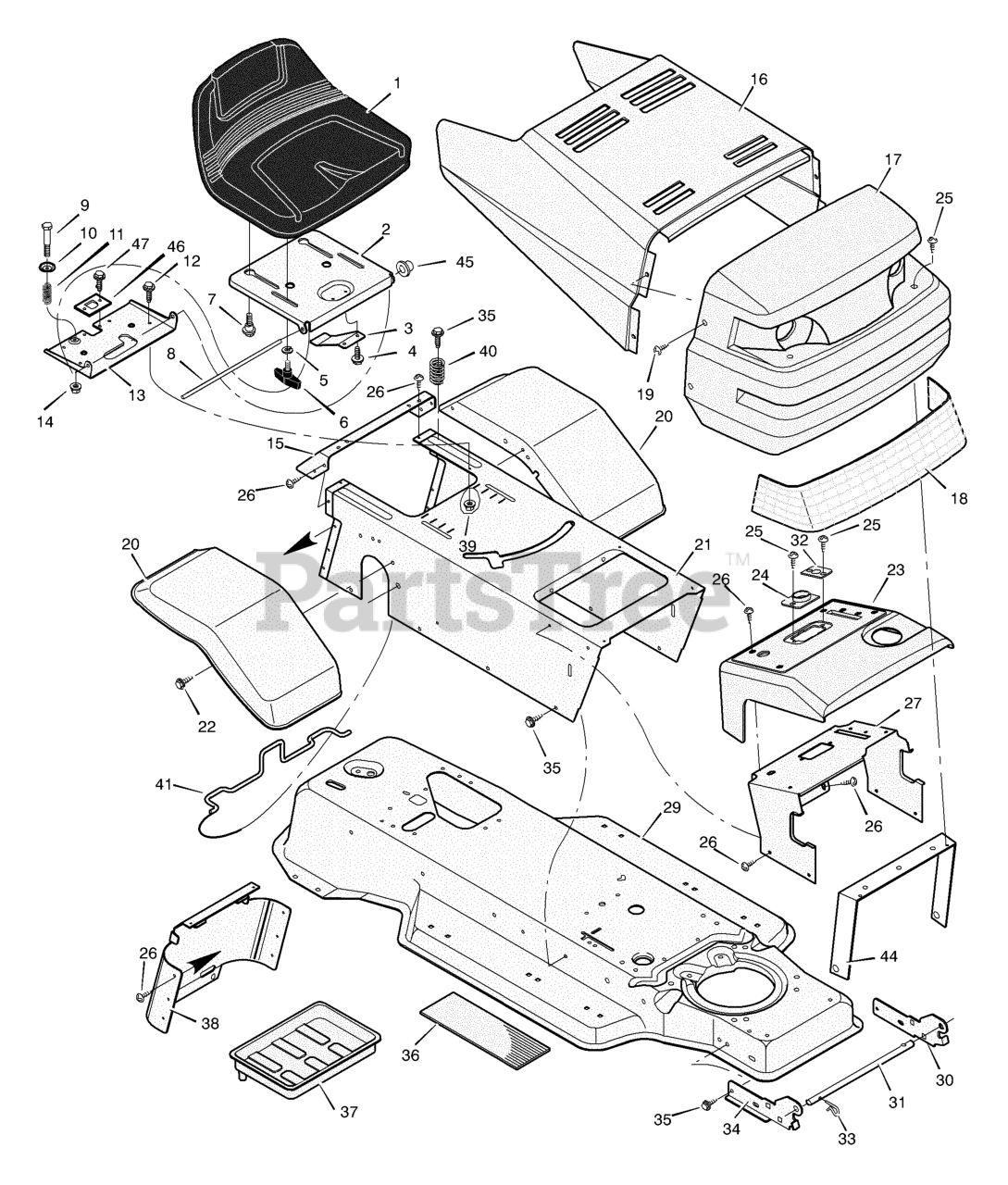

Chassis & Hood Parts Diagram

  • Title

1

Murray 690566MA

Seat
(Superseded to 1687498YP)

$471.99

$

Usually ships in 2-12 days

0

2

Murray 094154E701MA

Support, Seat
(Superseded to 7300875BMYP)

$69.99

$

Usually ships in 2-12 days

0

3

Murray 094057MA

Spring, Seat

$5.99

$

Usually ships in 2-12 days

0

4

Murray 26X229MA

Screw

$4.49

$

In Stock, only 1 left!

0

5

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

6

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094156ZMA

Rod, Pivot

$8.49

$

Usually ships in 2-12 days

0

9

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

10

Murray 094155 Z

Washer

$

$

Currently unavailable

11

Murray 164X31

Spring, Compression
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

12

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

13

Murray 1001648E701MA

Bracket, Pivot

$

$

Not available

14

Murray 015X89MA

Nut

$4.49

$

Usually ships in 2-12 days

0

15

Murray 091724E245MA

Fender, Apron

$27.99

$

Usually ships in 2-12 days

0

16

Murray 092333E245MA

Hood

$273.99

$

Usually ships in 2-12 days

0

17

Murray 092350MA

Grille Assembly

Note: (includes Lens)

$

$

Not available

18

Murray 092344MA

Lens

$79.99

$

Usually ships in 2-12 days

0

19

Murray 009X47MA

Screw

$4.49

$

Usually ships in 2-12 days

0

20

Murray 092328E245

Fender

$

$

Currently unavailable

21

Murray 1001646E245

Console Assembly

$

$

Currently unavailable

22

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

23

Murray 070138MA

Dash Panel

$

$

Not available

24

Murray 092399

Bearing, Steering

$4.99

$

Usually ships in 2-12 days

0

25

Murray 26X239MA

Screw

$4.49

$

Usually ships in 2-12 days

0

26

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 19

0

27

Murray 092331E700

Support, Dash

$148.99

$

In Stock, only 1 left!

0

29

Murray 092815E245

Frame Assembly

$

$

Currently unavailable

30

Murray 092347E701MA

Bracket, Left Grille

$8.49

$

Usually ships in 2-12 days

0

31

Murray 092332 Z

Rod, Pivot

$

$

Currently unavailable

32

Murray 092398

Bearing, PTO

$3.99

$

Usually ships in 2-12 days

0

33

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

34

Murray 092346E701MA

Bracket, Right Grille

$5.49

$

Usually ships in 2-12 days

0

35

Murray 26X249MA

Screw

$

$

Not available

36

Murray 094107

Mat

$11.99

$

Usually ships in 2-12 days

0

37

Murray 091895MA

Tray, Battery

$

$

Not available

38

Murray 092443E245

Cap, Console

$39.99

$

Usually ships in 2-12 days

0

39

Murray 15X123MA

Nut
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

40

Murray 164X30MA

Spring, Compression

$15.99

$

Usually ships in 2-12 days

0

41

Murray 092725 Z

Clamp, Battery

$

$

Currently unavailable

44

Murray 092448

Brace, Grille

$

$

Not available

45

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

46

Murray 1001650 Z

Plate Assembly, Switch

$

$

Currently unavailable

47

Murray 26X208MA

Screw

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-040749L

Instruction Book & Parts List

$

$

Currently unavailable
