38711x66C - Murray 38" Lawn Tractor (2000) Motion Drive Parts Diagram

38" Lawn Tractor

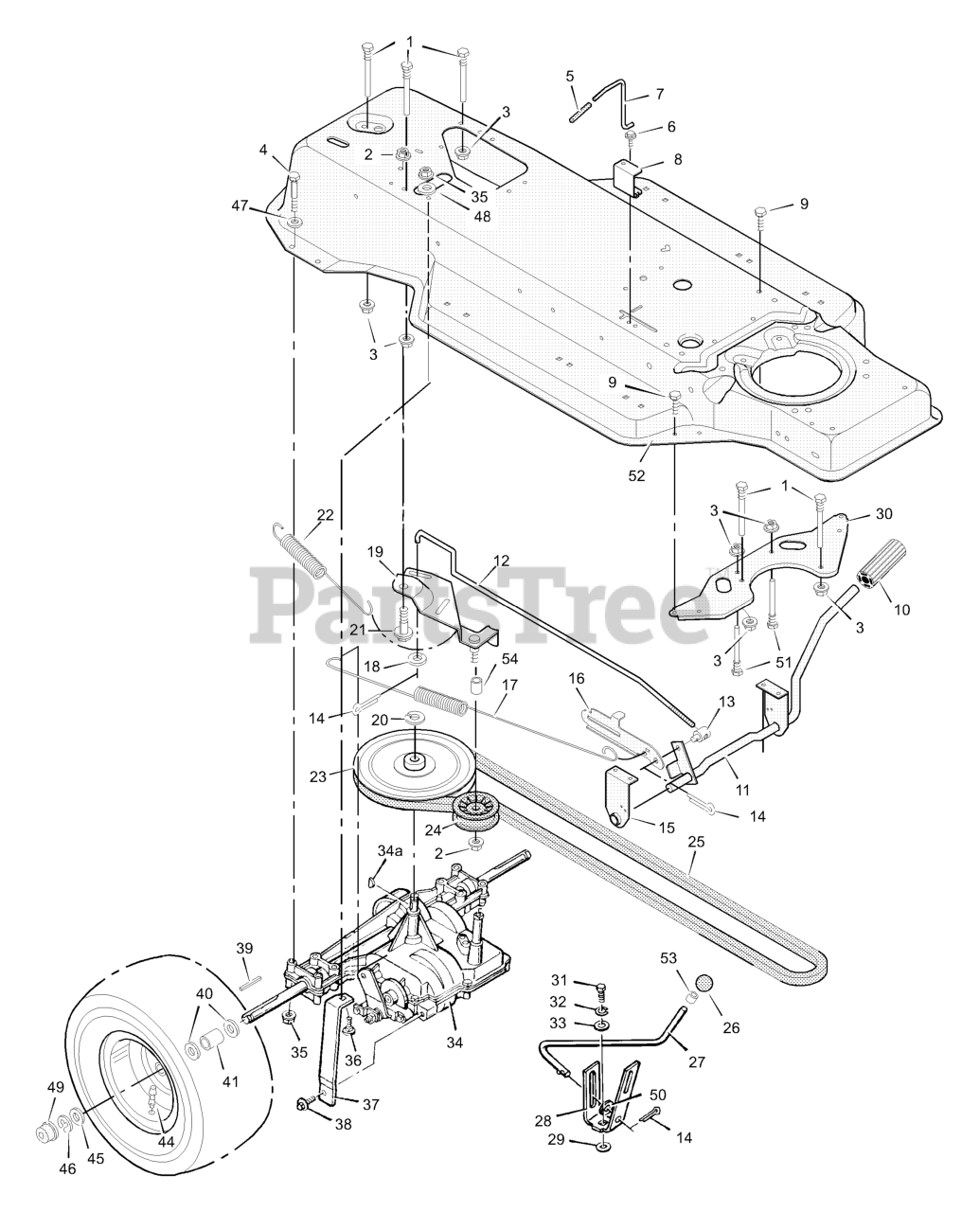

Motion Drive Parts Diagram

  • Title

1

Murray 091754MA

Guide, Belt

$17.99

$

Usually ships in 2-12 days

0

2

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

3

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

4

Murray 01X124

Bolt, Hex

$

$

Currently unavailable

5

Murray 091079MA

Grip

$3.99

$

Usually ships in 2-12 days

0

6

Murray 26X214MA

Screw

$4.49

$

Usually ships in 2-12 days

0

7

Murray 91727E700

Rod, Control

$

$

Currently unavailable

8

Murray 91825E700

Guide, Bracket

$

$

Currently unavailable

9

Murray 26X249MA

Screw

$

$

Not available

10

Murray 021544MA

Clutch and Brake Pedal
(Superseded to 1727261SM)

$10.99

$

In Stock, only 2 left!

0

11

Murray 091862E700

Lever Assembly

$

$

Currently unavailable

12

Murray 091808 Z

Rod, Clutch

$

$

Currently unavailable

13

Murray 021920ZMA

Nut, Adjustable

$17.99

$

Usually ships in 2-12 days

0

14

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$4.49

$

In Stock, Qty 11

0

15

Murray 091713E701

Bracket, Support

$54.99

$

Usually ships in 2-12 days

0

16

Murray 091712 Z

Latch, Park Brake

$

$

Currently unavailable

17

Murray 165X82MA

Spring, Brake Extension

$51.99

$

Usually ships in 2-12 days

0

18

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

19

Murray 092737 Z

Bracket Assembly, Idler

$

$

Currently unavailable

20

Murray 0011X7MA

Ring, Retainer

$3.99

$

In Stock, only 2 left!

0

21

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, only 2 left!

0

22

Murray 165X76

Spring, Drive Extension

$13.99

$

In Stock, only 2 left!

0

23

Murray 095094MA

Pulley, Motion Drive

$58.99

$

In Stock, Qty 7

0

24

Murray 690409MA

Pulley, Backside Idler

$19.99

$

In Stock, only 4 left!

0

25

Murray 037X61MA

Belt, Motion Drive

$34.99

$

In Stock, Qty 11

0

26

Murray 091995

Knob, Shift Lever

$12.99

$

Usually ships in 2-12 days

0

27

Murray 091805 Z

Lever, Shift

$

$

Currently unavailable

28

Murray 091806 Z

Yoke, Shift

$

$

Currently unavailable

29

Murray 17X148MA

Washer

$4.49

$

Usually ships in 2-12 days

0

30

Murray 92694E700

Plate, Belt Guide

$

$

Currently unavailable

31

Murray 06X105MA

Bolt, Hex

$4.49

$

In Stock, only 1 left!

0

32

Murray 017X38MA

Lockwasher

$3.99

$

Usually ships in 2-12 days

0

33

Murray 17X148MA

Washer

$4.49

$

Usually ships in 2-12 days

0

34

Transaxle, Peerless **

$

$

Not available

34A

Murray 020697MA

Woodruff Key No. 9

$4.49

$

In Stock, only 1 left!

0

35

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

36

Murray 002X64MA

Bolt, Carriage
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

37

Murray 091804E700

Support, Transaxle

$

$

Currently unavailable

38

Murray 26X216MA

Screw

$6.99

$

In Stock, only 3 left!

0

39

Murray 021553MA

Key, Square

$5.49

$

In Stock, Qty 14

0

40

Murray 17X160MA

Washer

$4.99

$

In Stock, only 4 left!

0

41

Murray 690553 Z

Spacer, Transaxle

$

$

Currently unavailable

42

Murray 091923MA

Tire *

$

$

Not available

--

Murray 407049MA

Tube

$72.99

$

Usually ships in 2-12 days

0

43

Murray 0 92288601

Wheel & Tire Assembly

$

$

Not available

44

Murray 024373MA

Stem, Valve

$8.49

$

Usually ships in 2-12 days

0

45

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 20+

0

46

Murray 0011X3MA

E-Ring

$5.99

$

In Stock, Qty 12

0

47

Murray 017X37MA

Washer
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

48

Murray 017X45MA

Washer

$

$

Not available

49

Murray 094618MA

Hub Cap

$5.99

$

In Stock, Qty 20+

0

50

Murray 17X102MA

Washer
(Superseded to 703128)

$3.99

$

In Stock, Qty 20+

0

51

Murray 020619MA

Guide, Belt

$4.99

$

Usually ships in 2-12 days

0

52

Murray 092815E245

Frame Assembly

$

$

Currently unavailable

53

Murray 092008

Ring, Tolerance

$3.99

$

Usually ships in 2-12 days

0

54

Murray 690369MA

Spacer

$

$

Not available
