38716x82A - Ranch King 38" Lawn Tractor (1999) Engine Mount Parts Diagram

38" Lawn Tractor

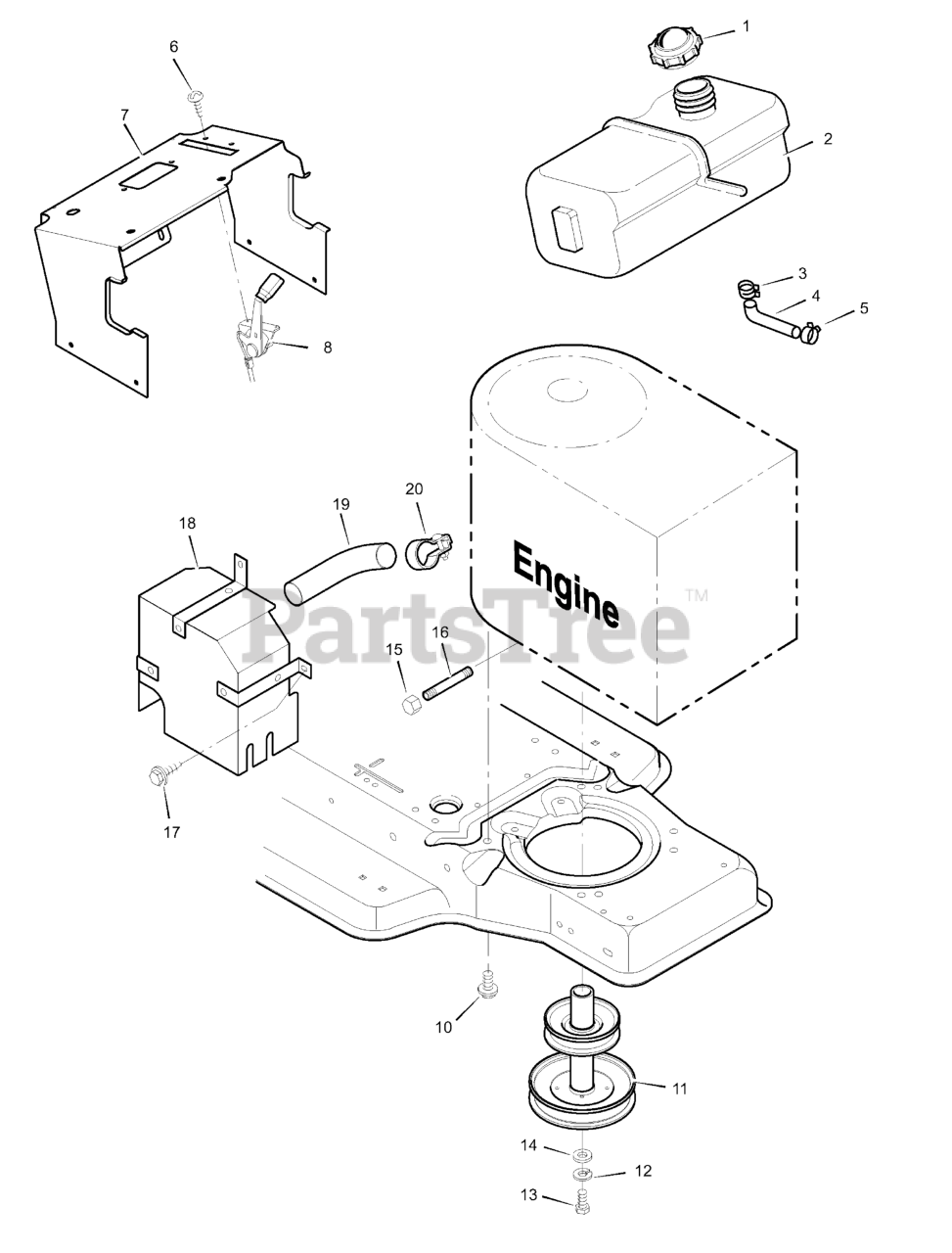

Engine Mount Parts Diagram

  • Title

1

Murray 092317MA

Fuel Cap

$10.99

$

In Stock, Qty 12

0

2

Murray 092342

Fuel Tank

$

$

Currently unavailable

3

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

4

Murray 090671MA

Fuel Line

$17.99

$

Usually ships in 2-12 days

0

5

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

6

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 92331E701

Support, Dash

$

$

Currently unavailable

8

Murray 092371MA

Throttle Control

$37.99

$

Usually ships in 2-12 days

0

9

Engine *

$

$

Not available

--

Murray 095206

Muffler

$

$

Currently unavailable

--

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

--

Murray 095207MA

Adapter, Muffler
(Superseded to 796002)

$43.99

$

In Stock, Qty 7

0

--

Murray 06X103MA

Screw, Adapter

$6.49

$

In Stock, only 2 left!

0

--

Murray 009X59MA

Bolt, Muffler

$6.99

$

In Stock, Qty 10

0

--

Murray 092378MA

Lock, Screw

$5.49

$

In Stock, Qty 10

0

10

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 092318 Z

Stack Pulley Assembly

$

$

Currently unavailable

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, only 2 left!

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, only 1 left!

0

14

Murray 17X170MA

Washer

$

$

Not available

15

Murray 021651

Cap, Oil Drain

$7.49

$

Usually ships in 2-12 days

0

16

Murray 024066

Pipe, Oil Drain

$

$

Currently unavailable

17

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

18

Murray 092550MA

Shield, Heat

$70.99

$

Usually ships in 2-12 days

0

19

Murray 92855E701

Pipe, Exhaust

$

$

Currently unavailable

20

Murray 092558MA

Clamp

$

$

Not available
