38721 (724 QXE) - Toro 24" SnowMax Snow Thrower (SN: 409000000 - 411499999) Crankcase Assembly Parts Diagram

24" SnowMax Snow Thrower

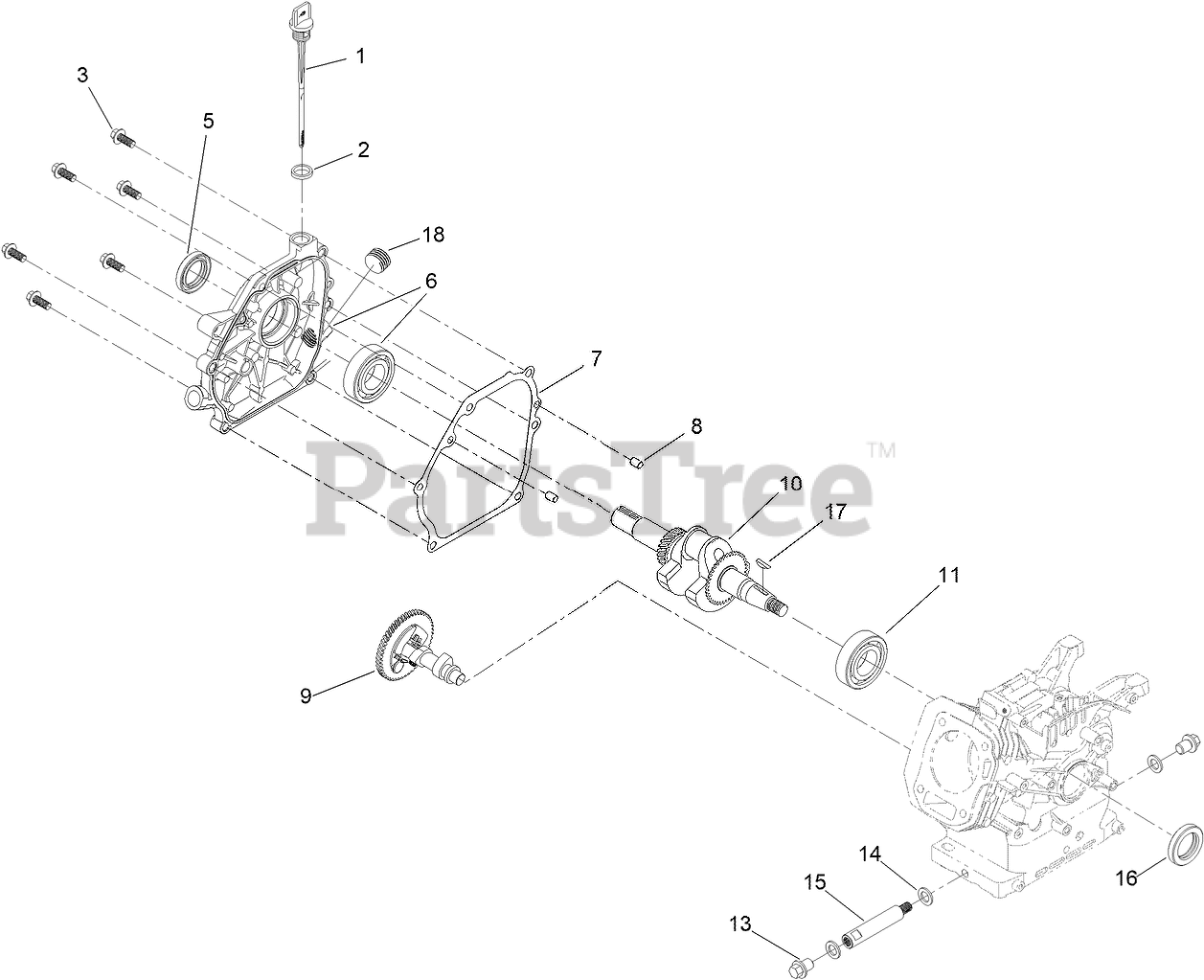

Crankcase Assembly Parts Diagram

  • Title

1

Toro 127-9409

DIPSTICK-OIL

$9.49

$

In Stock, only 1 left!

0

2

Toro 127-9492

GASKET-DIPSTICK, RUBBER

$1.99

$

Usually ships in 3-6 days

0

3

Toro 121-4114

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

5

Toro 121-0209

SEAL-OIL

$15.99

$

Usually ships in 3-6 days

0

6

Toro 133-9843

CRANKCASE COVER ASM

$80.99

$

Usually ships in 3-6 days

0

7

Toro 121-0105

GASKET-COVER, CRANKCASE

$15.99

$

In Stock, only 2 left!

0

8

Toro 121-0054

PIN-DOWEL

$1.99

$

Usually ships in 3-6 days

0

9

Toro 139-0733

CAMSHAFT

$52.99

$

Usually ships in 3-6 days

0

10

Toro 127-9399

CRANKSHAFT

$148.99

$

Usually ships in 3-6 days

0

11

Toro 121-0056

BEARING-BALL

$19.99

$

Usually ships in 3-6 days

0

13

Toro 121-0030

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

14

Toro 121-0048

WASHER-PLAIN

$1.49

$

In Stock, only 2 left!

0

15

Toro 127-9104

TUBE-DRAIN, OIL

$12.99

$

Usually ships in 3-6 days

0

16

Toro 133-9864

SEAL-OIL

$13.99

$

Usually ships in 3-6 days

0

17

Toro 120-4320

KEY-WOODRUFF

$3.49

$

Usually ships in 3-6 days

0

18

Toro 133-9805

PLUG-DRAIN

$8.49

$

In Stock, only 1 left!

0
