38734 - Gravely 48" Deck for 4-Wheel Tractor

48" Deck for 4-Wheel Tractor

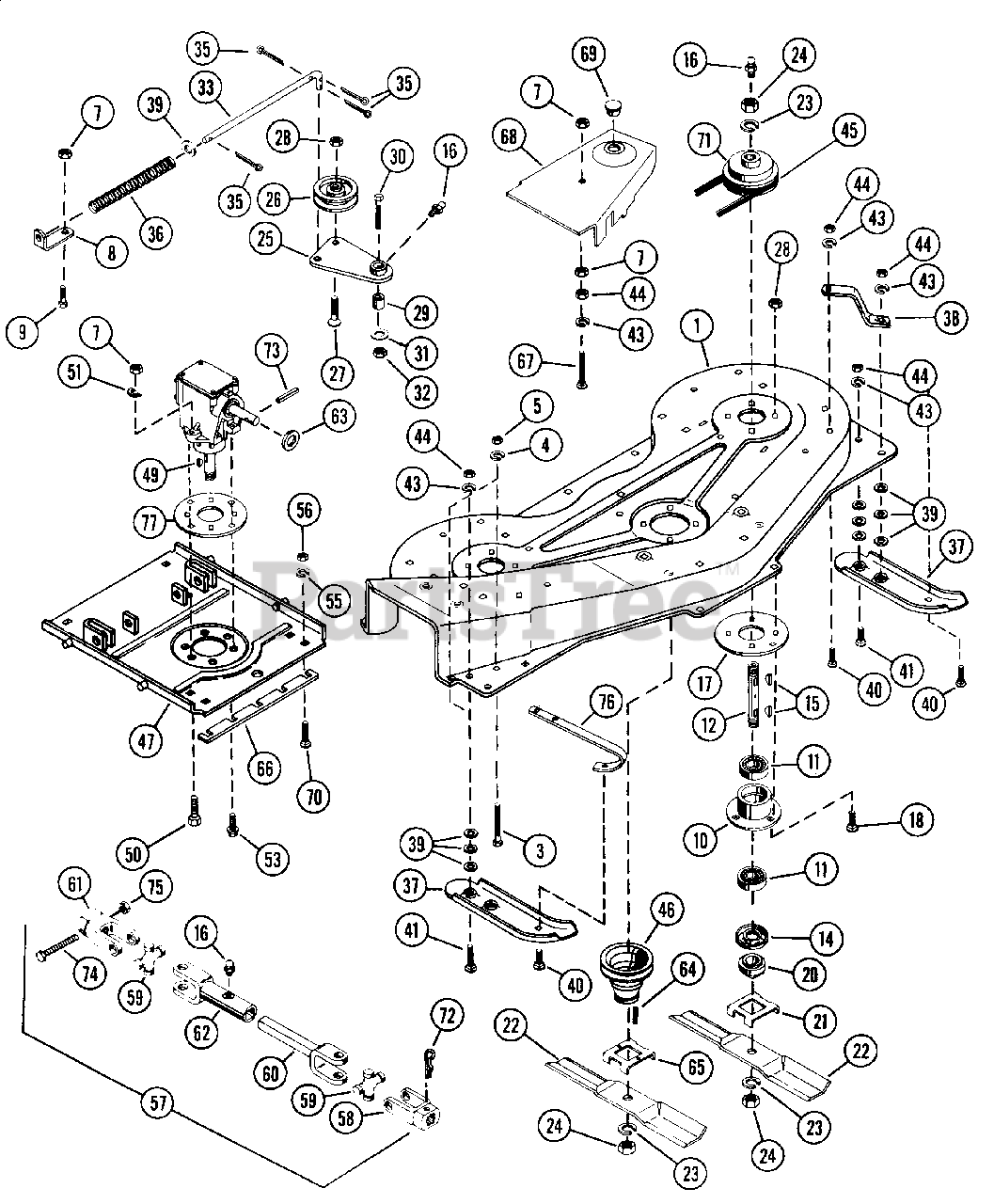

38734 - Gravely 48" Deck for 4-Wheel Tractor > Parts Diagrams (3) > MOWER DRIVE 48"

  • Title
039731

1

48-INCH DECK

Part# 039731 (Superseded to 51503400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $423.32

180134

3

BOLT, HEX 3/8-16X2.50

Part# 180134 (Superseded to 05958400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

120382

4

WASHER, LOCK 3/8 REG.

Part# 120382 (Superseded to 06308800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

120377

5

NUT, HEX 3/8-16

Part# 120377 (Superseded to 06529400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

413447

7

NUT, LOCK 5/16-18

Part# 413447 (Superseded to 06529800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

039594

8

BRACKET

Part# 039594 (Superseded to 03418851)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $19.23

180073

9

BOLT, HEX 5/16-18X.50

Part# 180073 (Superseded to 05947200)

OEM Warranty Repair Part for Gravely

Not available

039595

10

SPINDLE HOUSING

Part# 039595 (Superseded to 03433500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $134.10

035925

11

RADIAL BEARING

Part# 035925 (Superseded to 05412000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

039732

12

SPINDLE SHAFT

Part# 039732 (Superseded to 53115100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $73.73

035968

14

BEARING SLINGER

Part# 035968 (Superseded to 00341900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.70

431787

15

KEY, WOODRUFF .187X.625 HARD #61

Part# 431787 (Superseded to 06609300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

411027

16

FITTING, LUBE 1/4-28

Part# 411027 (Superseded to 07012600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

039596

17

SPACER, SPINDLE

Part# 039596 (Superseded to 03433600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

126227

18

BOLT, CARRIAGE 3/8-16X.75

Part# 126227 (Superseded to 06223900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

039559

20

RETAINER HUB

Part# 039559 (Superseded to 03037500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $42.43

039586

21

BLADE TRAY

Part# 039586 (Superseded to 03485500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $18.39

039568

22

BLADE

Part# 039568 (Superseded to 03123700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $18.95

131046

23

WASHER, LOCK 3/4 SP

Part# 131046 (Superseded to 06310300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

426897

24

NUT, JAM 3/4-10 HEX

Part# 426897 (Superseded to 06537700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

039597

25

IDLER ARM

Part# 039597 (Superseded to 53401000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $72.50

039608

26

IDLER

Part# 039608 (Superseded to 07300101)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $55.84

039451

27

SCREW, CAP 3/8-16X1.25 BTHD

Part# 039451 (Superseded to 07006300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

413534

28

NUT, LOCK 3/8-16

Part# 413534 (Superseded to 06529600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

039598

29

SPACER, PIVOT

Part# 039598 (Superseded to 03433800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

039733

30

BOLT, CARRIAGE 1/2-13X2.50

Part# 039733 (Superseded to 05966600)

OEM Warranty Repair Part for Gravely

Not available

446494

31

WASHER, FLAT .56X1.87X.109

Part# 446494 (Superseded to 06431000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

414074

32

NUT, LOCK 1/2-13

Part# 414074 (Superseded to 06536300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

039599

33

ROD, IDLER SPRING

Part# 039599 (Superseded to 03433900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $65.40

121222

35

PIN, COTTER .09X.75

Part# 121222 (Superseded to 06706900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

039609

36

SPRING

Part# 039609 (Superseded to 08301800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

039553

37

SKID

Part# 039553 (Superseded to 03034553)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $34.38

039734

38

SKID BRACE, L.H.

Part# 039734 (Superseded to 03434553)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $30.69

120394

39

WASHER, FLAT .406X.812X.065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

126216

40

BOLT, CARRIAGE 5/16-18X.75

Part# 126216

OEM Warranty Repair Part for Gravely

Not available

126358

41

BOLT, CARRIAGE 5/16-18X1.00

Part# 126358 (Superseded to 06216100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

131099

43

WASHER, LOCK 3/8 SP HEAVY

Part# 131099 (Superseded to 06306500)

OEM Warranty Repair Part for Gravely

Not available

120376

44

NUT, HEX 5/16-18

Part# 120376 (Superseded to 06529200)

OEM Warranty Repair Part for Gravely

Not available

039607

45

V-BELT

Part# 039607 (Superseded to 07208100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $44.66

039576

46

SHEAVE

Part# 039576 (Superseded to 03184400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $159.82

039735

47

MOUNTING PLATE

Part# 039735

OEM Warranty Repair Part for Gravely

Not available

039736

49

KEY, WOODRUFF .25X.75X.312

Part# 039736 (Superseded to 06601200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

180081

50

BOLT, HEX 5/16-18X1.25

Part# 180081 (Superseded to 05947500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

039579

51

SHIM

Part# 039579 (Superseded to 03189900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

039737

53

TAPTITE, 5/16-18X1.00 THHPL

Part# 039737 (Superseded to 07413900)

OEM Warranty Repair Part for Gravely

Not available

131101

55

WASHER, LOCK 1/2 SP HEAVY

Part# 131101 (Superseded to 06306600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

120378

56

NUT, HEX 1/2-13

Part# 120378 (Superseded to 06537300)

OEM Warranty Repair Part for Gravely

Not available

039562

57

ASSEMBLY, PTO(CONSISTS OF ITEM NUMBERS 16,58, 59, 60, 61, AND 62)

Part# 039562 (Superseded to 03093300)

Note: (CONSISTS OF ITEM NUMBERS 16,58, 59, 60, 61, AND 62)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $441.47

039738

58

YOKE

Part# 039738 (Superseded to 03155900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $194.31

039739

59

JOURNAL CROSS AND BEARING ASSEMBLY

Part# 039739 (Superseded to 03155800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $73.73

039740

60

YOKE AND SHAFT

Part# 039740

OEM Warranty Repair Part for Gravely

Not available

039741

61

YOKE

Part# 039741 (Superseded to 03155700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $142.32

039742

62

SLIP YOKE

Part# 039742 (Superseded to 03094700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $208.73

039743

63

WASHER, .749/.759X1.000X.032

Part# 039743 (Superseded to 06444100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

039744

64

PIN, GROOVE .187X.75 TYPE A

Part# 039744 (Superseded to 05805500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

039575

65

TRAY

Part# 039575 (Superseded to 03037600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

039561

66

SHIM

Part# 039561 (Superseded to 03038100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.24

039745

67

BOLT, CARRIAGE 5/16-18X3.25

Part# 039745 (Superseded to 06221300)

OEM Warranty Repair Part for Gravely

Not available

039602

68

COVER, R.H. BELT

Part# 039602 (Superseded to 03095851)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $46.68

039603

68

COVER, L.H. BELT

Part# 039603

OEM Warranty Repair Part for Gravely

Not available

039746

69

BUTTON PLUG

Part# 039746 (Superseded to 07504000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

120917

70

BOLT, 1/2-13X1.50 RD HD SQ NK

Part# 120917 (Superseded to 06223100)

OEM Warranty Repair Part for Gravely

Not available

039588

71

SHEAVE

Part# 039588 (Superseded to 03401800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $147.52

039747

72

PIN, HAIR INT. .187X3.25

Part# 039747 (Superseded to 53126000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.99

273936

73

PIN, SPRING .125X1.000

Part# 273936 (Superseded to 05800900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

039748

74

SCREW, CAP 1/4-20X2.125 GR 5 HH

Part# 039748 (Superseded to 53102600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

413314

75

NUT, LOCK 1/4-20

Part# 413314 (Superseded to 21066200)

OEM Warranty Repair Part for Gravely

Not available

039749

76

SKID BRACE, R.H.

Part# 039749 (Superseded to 03434453)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $30.69

039750

77

SHIM

Part# 039750 (Superseded to 03121400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.93
