38751 (721 R-C) - Toro 21" Power Clear Commercial Snow Thrower (SN: 404310000 - 999999999) Handle Assembly Parts Diagram

21" Power Clear Commercial Snow Thrower

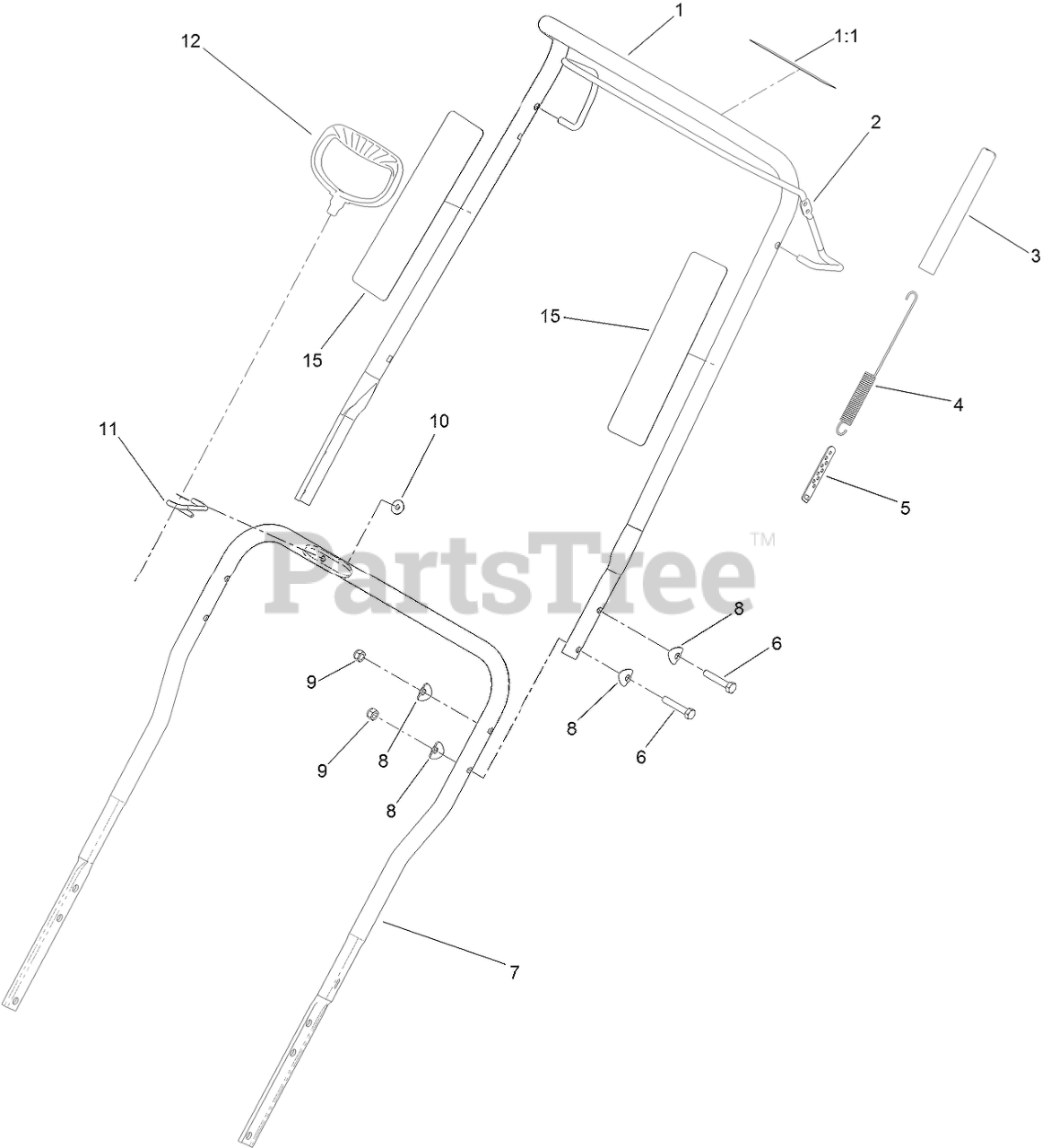

Handle Assembly Parts Diagram

  • Title

1

Toro 114-3768

UPPER HANDLE ASM
(Superseded to 140-3744)

$55.99

$

In Stock, only 1 left!

0

1:1

Toro 94-2577

DECAL-DRIVE, ROTOR

$4.49

$

In Stock, only 1 left!

0

2

Toro 114-3780-03

BAIL-CONTROL

$17.99

$

In Stock, Qty 16

0

3

Toro 114-3796

COVER-SPRING

$5.49

$

In Stock, only 4 left!

0

4

Toro 125-1148

SPRING-EXTENSION, CLUTCH

$8.49

$

Usually ships in 3-6 days

0

5

Toro 136-7126

ADJUSTER-CLUTCH CABLE

$6.99

$

In Stock, Qty 20+

0

6

Toro 125-7944

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 127-5956-03

HANDLE-LOWER

$56.99

$

Usually ships in 3-6 days

0

8

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 9

0

9

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 16

0

11

Toro 136-7135

GUIDE-ROPE

$4.99

$

In Stock, only 1 left!

0

12

Toro 117-9104

HANDLE-RECOIL
(Superseded to 121-0287)

$13.99

$

In Stock, only 4 left!

0

15

Toro 125-7938

DECAL-TAPE, REFLECTIVE

$5.99

$

In Stock, Qty 10

0
