38752 (721 R) - Toro 21" Power Clear Snow Thrower (SN: 413000000 - 413980170) Chute and Wheel Assembly Parts Diagram

21" Power Clear Snow Thrower

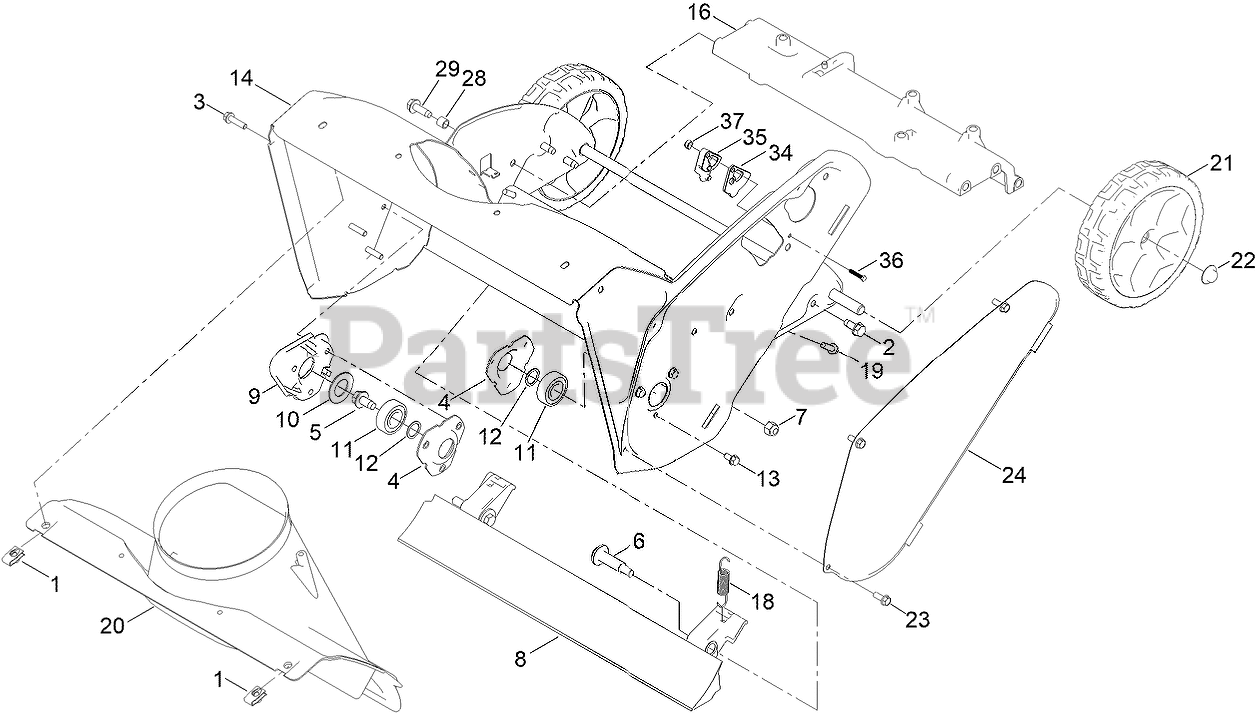

Chute and Wheel Assembly Parts Diagram

  • Title

1

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

2

Toro 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 8

0

3

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

4

Toro 136-7134

FLANGE-BEARING

$3.99

$

In Stock, Qty 20+

0

5

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

6

Toro 136-7198

BOLT-SHOULDER

$1.99

$

In Stock, Qty 20+

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 133-5585

BLADE-SCRAPER

$31.99

$

In Stock, Qty 20+

0

9

Toro 114-3781

SPACER-BEARING, RH

$8.49

$

In Stock, Qty 11

0

10

Toro 110-9353

WASHER-RUBBER

$1.49

$

In Stock, Qty 12

0

11

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

12

Toro 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

13

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

14

Toro 108-4868-03

HOUSING-AUGER

$190.99

$

Usually ships in 3-6 days

0

16

Toro 130-9765

BRACE-FRAME

$38.99

$

Usually ships in 3-6 days

0

18

Toro 108-4906

SPRING-EXTENSION

$3.49

$

In Stock, Qty 20+

0

19

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

20

Toro 108-4871

CHUTE-LOWER

$73.99

$

Usually ships in 3-6 days

0

21

Toro 138-8783

WHEEL ASM, 7 INCH

$23.99

$

In Stock, Qty 20+

0

22

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

23

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

24

Toro 108-4893-03

COVER-BELT

$21.99

$

In Stock, Qty 5

0

28

Toro 136-7148

SPACER-GROMMET

$1.49

$

In Stock, Qty 20+

0

29

Toro 130-9795

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

33

Toro 94-4496

SCREW-PPH

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0

34

Toro 139-3564

CAP-GUIDE, CABLE

$2.49

$

Usually ships in 3-6 days

0

35

Toro 139-3565

GUIDE-CABLE

$5.49

$

In Stock, only 2 left!

0

36

Toro 360-0272

Screw, Machine, Nozzle, 8-32 x 7/8"

$0.99

$

In Stock, only 2 left!

0

37

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0
