38757 (821 QZE) - Toro 21" Power Clear Snow Thrower (SN: 400000000 - 406829999) Shroud and Chute Assembly Parts Diagram

21" Power Clear Snow Thrower

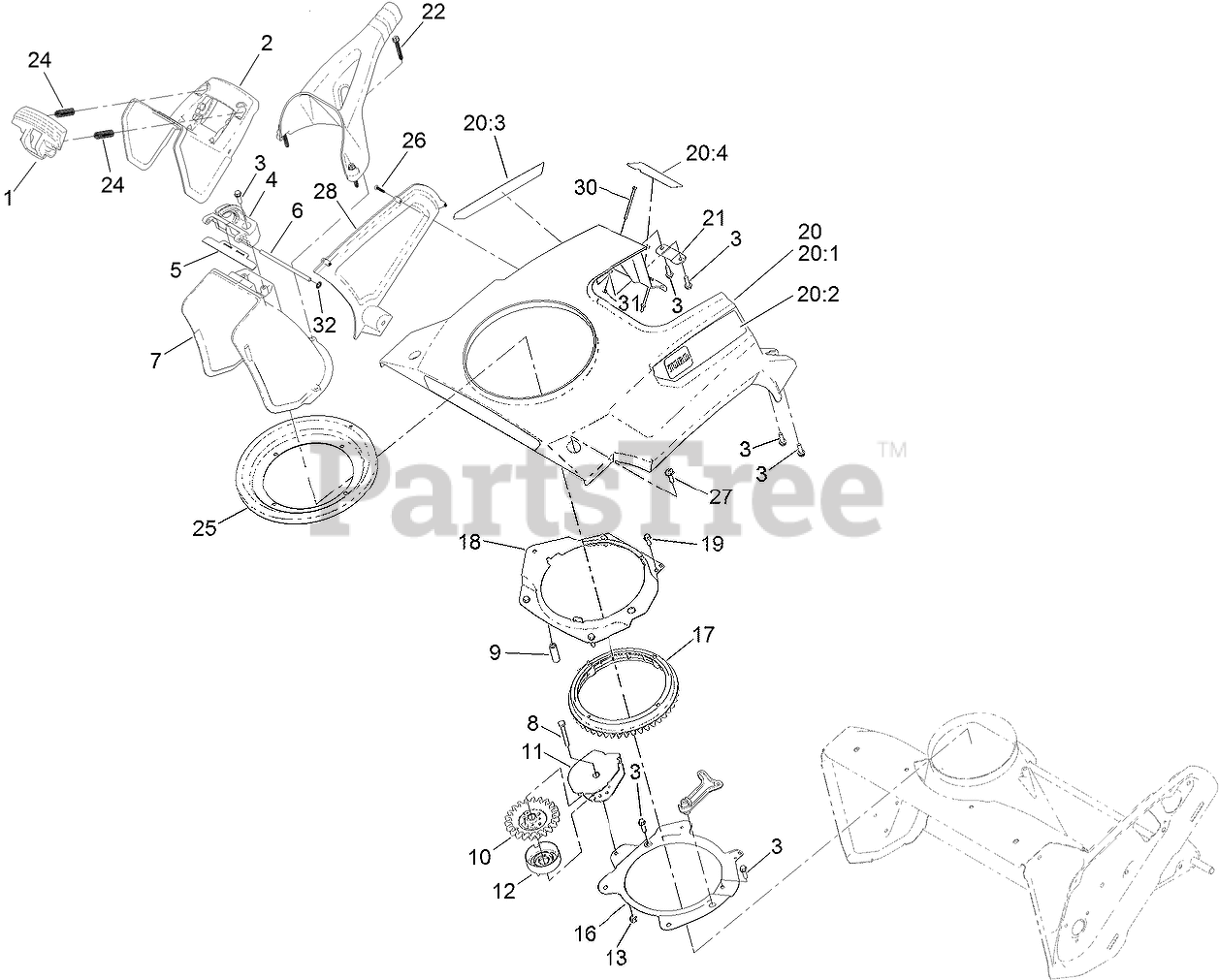

Shroud and Chute Assembly Parts Diagram

  • Title

1

Toro 108-4941

TRIGGER-DEFLECTOR

$16.99

$

In Stock, only 4 left!

0

2

Toro 117-9121

DEFLECTOR-CHUTE, CE

$25.99

$

In Stock, only 1 left!

0

3

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

4

Toro 108-4942

HINGE-RATCHET, DEFLECTOR

$14.99

$

In Stock, only 2 left!

0

5

Toro 114-3790

SEAL-DEFLECTOR

$3.49

$

In Stock, Qty 17

0

6

Toro 136-8672

HINGE PIN-DEFLECTOR

$3.49

$

In Stock, Qty 20+

0

7

Toro 108-4939

CHUTE

$19.99

$

In Stock, only 1 left!

0

8

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

9

Toro 108-4877

SPACER-SLEEVE, PINION

$6.49

$

Usually ships in 3-6 days

0

10

Toro 108-4875

PINION-GEAR

$12.99

$

In Stock, only 2 left!

0

11

Toro 108-4900-03

BRACKET-PINION

$13.99

$

Usually ships in 3-6 days

0

12

Toro 114-3792

RETAINER-CABLE

$5.49

$

In Stock, only 2 left!

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 108-4883-03

RING-SUPPORT, CHUTE

$18.99

$

In Stock, only 1 left!

0

17

Toro 108-4882

RING-CHUTE, GEAR

$16.99

$

In Stock, only 1 left!

0

18

Toro 108-4874-03

RETAINER-RING, CHUTE

$18.99

$

In Stock, only 1 left!

0

19

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

20

SHROUD ASM, W/DECALS

Note: Not serviced separately

$

$

Not available

20:1

Toro 138-8797

SHROUD ASM, W/ARTWORK

$50.99

$

Usually ships in 3-6 days

0

20:2

Toro 139-3522

DECAL-SHROUD LH

$3.99

$

Usually ships in 3-6 days

0

20:3

Toro 139-3515

DECAL-SHROUD RH

$3.99

$

Usually ships in 3-6 days

0

20:4

Toro 139-3506

DECAL-ENGINE, ELECTRIC START

$1.99

$

Usually ships in 3-6 days

0

21

Toro 138-8757

RETAINER-SHROUD

$1.99

$

Usually ships in 3-6 days

0

22

Toro 108-4946

SCREW-PLASTITE
(Superseded to 137-3012)

$1.99

$

In Stock, Qty 6

0

24

Toro 136-7136

SPRING-COMPRESSION

$0.99

$

In Stock, Qty 20+

0

25

Toro 114-3772

SEAL-RING, CHUTE

$16.99

$

In Stock, only 1 left!

0

26

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

27

Toro 110-9361

SCREW-PPH
(Superseded to 137-3013)

$2.99

$

In Stock, Qty 20+

0

28

Toro 138-8754

COVER-SIDE

$8.99

$

Usually ships in 3-6 days

0

30

Toro 117-9106

SCREW-HWH

$2.49

$

In Stock, only 2 left!

0

31

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 8

0

32

Toro 104-8310

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0
