38757 (821 QZE) - Toro 21" Power Clear Snow Thrower (SN: 409000000 - 411599999) Ignition and Electrical Assembly Parts Diagram

21" Power Clear Snow Thrower

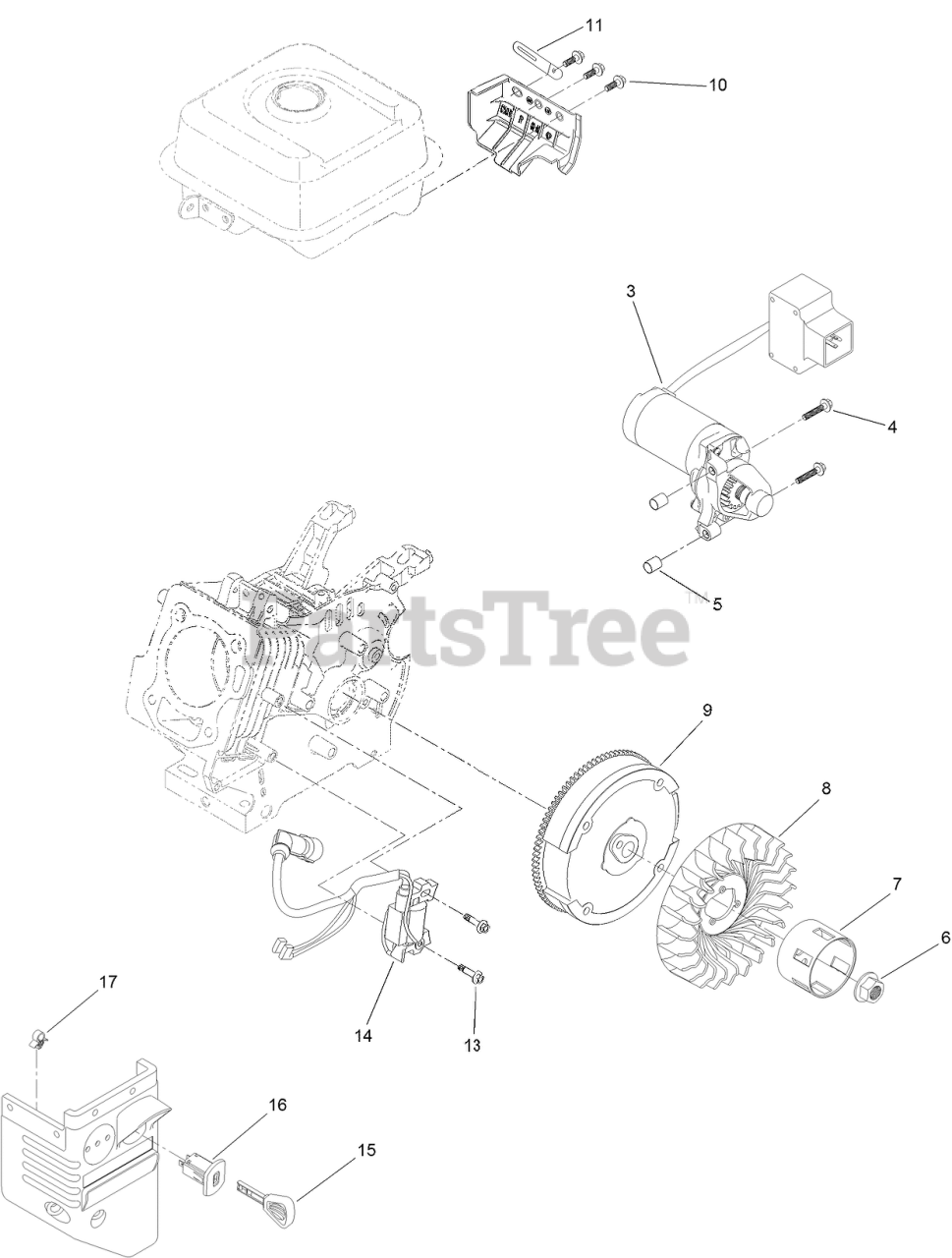

Ignition and Electrical Assembly Parts Diagram

  • Title

3

Toro 139-0701

MOTOR-STARTER

$371.99

$

Usually ships in 3-6 days

0

4

Toro 133-1546

SCREW-FLANGE

$1.99

$

Usually ships in 3-6 days

0

5

Toro 121-0055

PIN-DOWEL

$1.49

$

Usually ships in 3-6 days

0

6

Toro 121-0047

NUT-FLANGE

$3.99

$

Usually ships in 3-6 days

0

7

Toro 133-1527

CUP-STARTER

$19.99

$

Usually ships in 3-6 days

0

8

Toro 133-1526

FAN-COOLING

$18.99

$

Usually ships in 3-6 days

0

9

Toro 133-1525

FLYWHEEL AND RING GEAR ASM

$100.99

$

Usually ships in 3-6 days

0

10

Toro 127-9123

SCREW-HHF

$1.99

$

In Stock, only 2 left!

0

11

Toro 121-0017

CLIP-HARNESS, WIRE

$2.49

$

Usually ships in 3-6 days

0

13

Toro 121-0097

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

14

Toro 136-7769

IGNITION COIL ASM

$82.99

$

Usually ships in 3-6 days

0

15

Toro 117-7728

KEY

$4.49

$

In Stock, Qty 20+

0

16

Toro 121-0283

SWITCH-KEY

$9.99

$

In Stock, Qty 11

0

17

Toro 121-0326

CLIP

$1.99

$

Usually ships in 3-6 days

0
