38757 (821 QZE) - Toro 21" Power Clear Snow Thrower (SN: 416156378 - 999999999) Fuel System and Carburetor Assembly Parts Diagram

21" Power Clear Snow Thrower

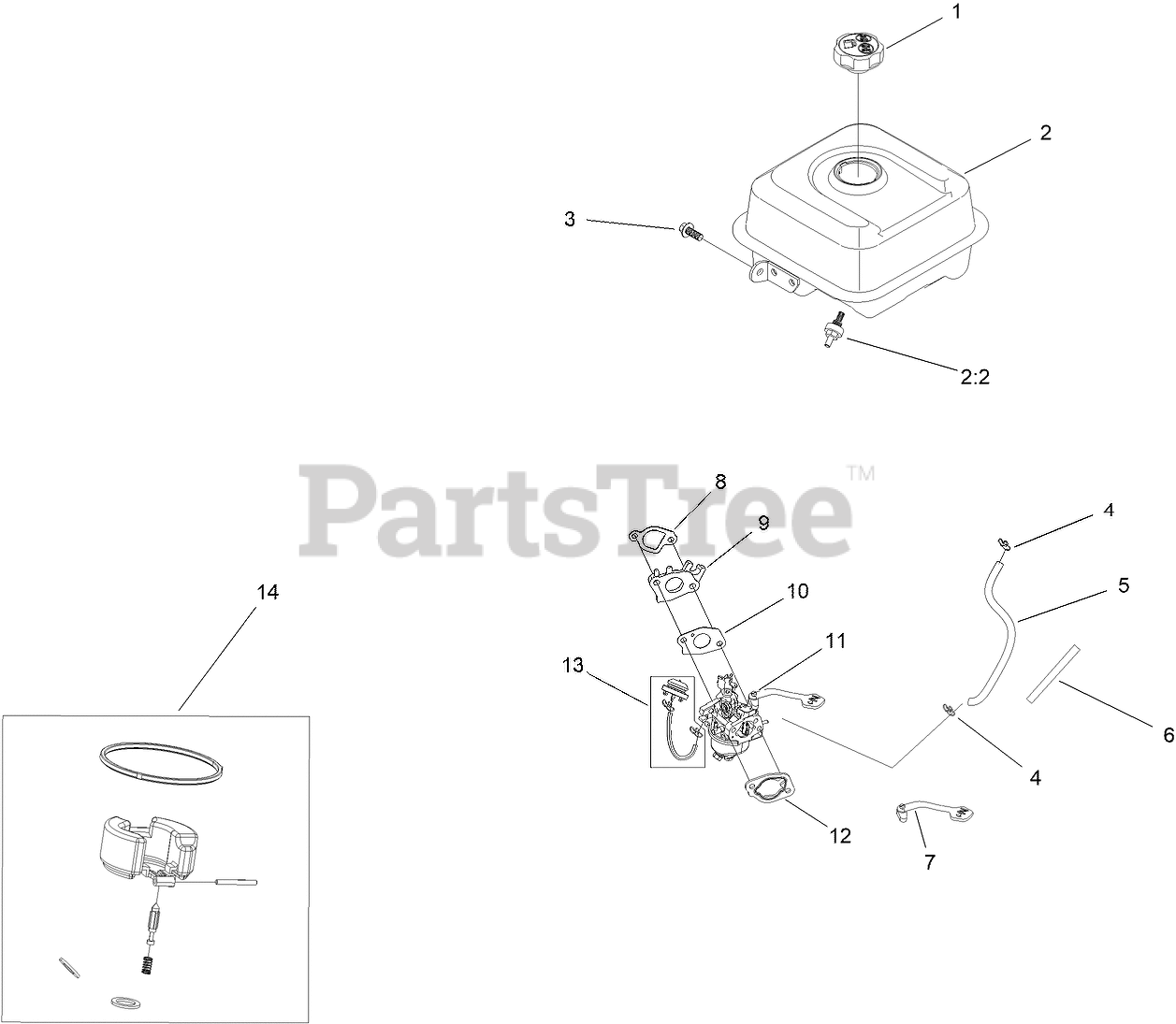

Fuel System and Carburetor Assembly Parts Diagram

  • Title

1

Toro 133-9823

CAP-FUEL

$20.99

$

In Stock, only 3 left!

0

2

Toro 133-1553

FUEL TANK AND FILTER ASM

$107.99

$

Usually ships in 3-6 days

0

2:2

Toro 127-9065

FILTER-FUEL

$6.49

$

In Stock, Qty 19

0

3

Toro 121-0294

SCREW-HHF

$1.99

$

In Stock, Qty 18

0

4

Toro 147-7077

CLIP-HOSE

$1.49

$

In Stock, only 2 left!

0

5

Toro 147-7089

HOSE-FUEL

$

$

Currently unavailable

6

Toro 147-7088

SLEEVE-ABRASION

$1.99

$

Usually ships in 3-6 days

0

7

Toro 147-7096

LEVER-CHOKE

$2.99

$

Usually ships in 3-6 days

0

8

Toro 133-1531

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 17

0

9

Toro 133-1532

INSULATOR-CARBURETOR

$5.99

$

In Stock, Qty 9

0

10

Toro 133-1533

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 20+

0

11

Toro 139-0700

CARBURETOR ASM

$110.99

$

In Stock, only 2 left!

0

12

Toro 121-0080

GASKET-CARBURETOR

$5.99

$

In Stock, Qty 10

0

13

Toro 127-9079

PRIMER KIT

$31.99

$

In Stock, Qty 6

0

14

Toro 127-9395

INTERNAL CARB SERVICE KIT

$25.99

$

In Stock, Qty 6

0

99

Toro 139-0711

HIGH ALTITUDE KIT

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0
