38803 (1128 OHXE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 316000001 - 316999999) (2016) Handle Assembly Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

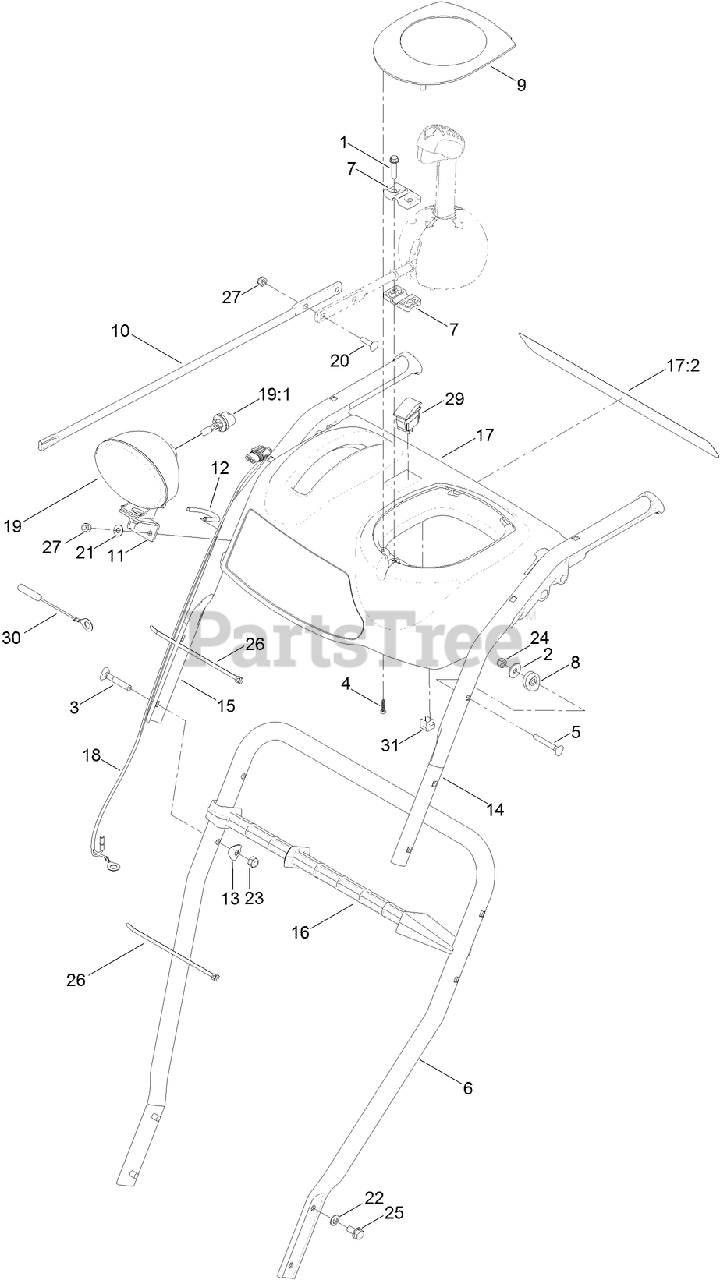

Handle Assembly Parts Diagram

  • Title

1

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 12

0

2

Toro 87-6630

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

3

Toro 92-2260

SCREW-HANDLE

$4.49

$

In Stock, Qty 20+

0

4

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

5

Toro 95-4453

SCREW

$3.99

$

In Stock, Qty 20+

0

6

Toro 105-9981-03

HANDLE-LOWER

$148.99

$

Usually ships in 3-6 days

0

7

Toro 105-9987

SUPPORT-ROD

$8.99

$

In Stock, Qty 7

0

8

Toro 106-4509

CLAMP-CABLE

$6.99

$

In Stock, only 3 left!

0

9

Toro 106-4586

COVER-PANEL, CONTROL

$26.99

$

Usually ships in 3-6 days

0

10

Toro 106-7283

ROD-CHUTE, FRONT

$37.99

$

In Stock, only 2 left!

0

11

Toro 107-1020-03

BRACKET-LIGHT

$9.49

$

Usually ships in 3-6 days

0

12

Toro 107-3024

See Supercession: 136-7120
(Superseded to 136-7120)

$5.49

$

In Stock, only 1 left!

0

13

Toro 107-3844

WASHER

$1.99

$

In Stock, Qty 20+

0

14

Toro 127-5952-03

HANDLE-UPPER, LH

$307.99

$

Usually ships in 3-6 days

0

15

Toro 127-5953-03

HANDLE-UPPER, RH

$277.99

$

Usually ships in 3-6 days

0

16

Toro 110-3408

STICK-CLEANOUT

$18.99

$

In Stock, only 3 left!

0

17

Toro 127-5990

CONTROL PANEL ASM

$118.99

$

Usually ships in 3-6 days

0

17:2

Toro 127-5991

DECAL-CONTROL

$7.49

$

Usually ships in 3-6 days

0

18

Toro 127-5950

HARNESS-WIRE, HEATED GRIPS

$58.99

$

Usually ships in 3-6 days

0

19

Toro 106-4510

HEADLAMP ASM

$125.99

$

Usually ships in 3-6 days

0

19:1

Toro 108-0008

LAMP-12 VOLT

$37.99

$

In Stock, only 1 left!

0

20

Toro 3229-30

SCREW-CARR

$1.99

$

In Stock, Qty 12

0

21

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

22

Toro 3290-475

WASHER-BELLEVILLE

$3.49

$

Usually ships in 3-6 days

0

23

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 18

0

24

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 13

0

25

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

26

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 18

0

27

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 13

0

29

Toro 127-5999

SWITCH-ROCKER, OFF-NONE-ON

$35.99

$

Usually ships in 3-6 days

0

30

Toro 127-5998

HARNESS-WIRE, GROUND JUMPER

$6.49

$

Usually ships in 3-6 days

0

31

Toro 32180-078

CLIP-EDGE

$5.99

$

Usually ships in 3-6 days

0
