38805 (826 OXE) - Toro 26" Power Max Heavy-Duty Snow Thrower (SN: 402082000 - 999999999) Idler Pulley and Linkage Assembly Parts Diagram

26" Power Max Heavy-Duty Snow Thrower

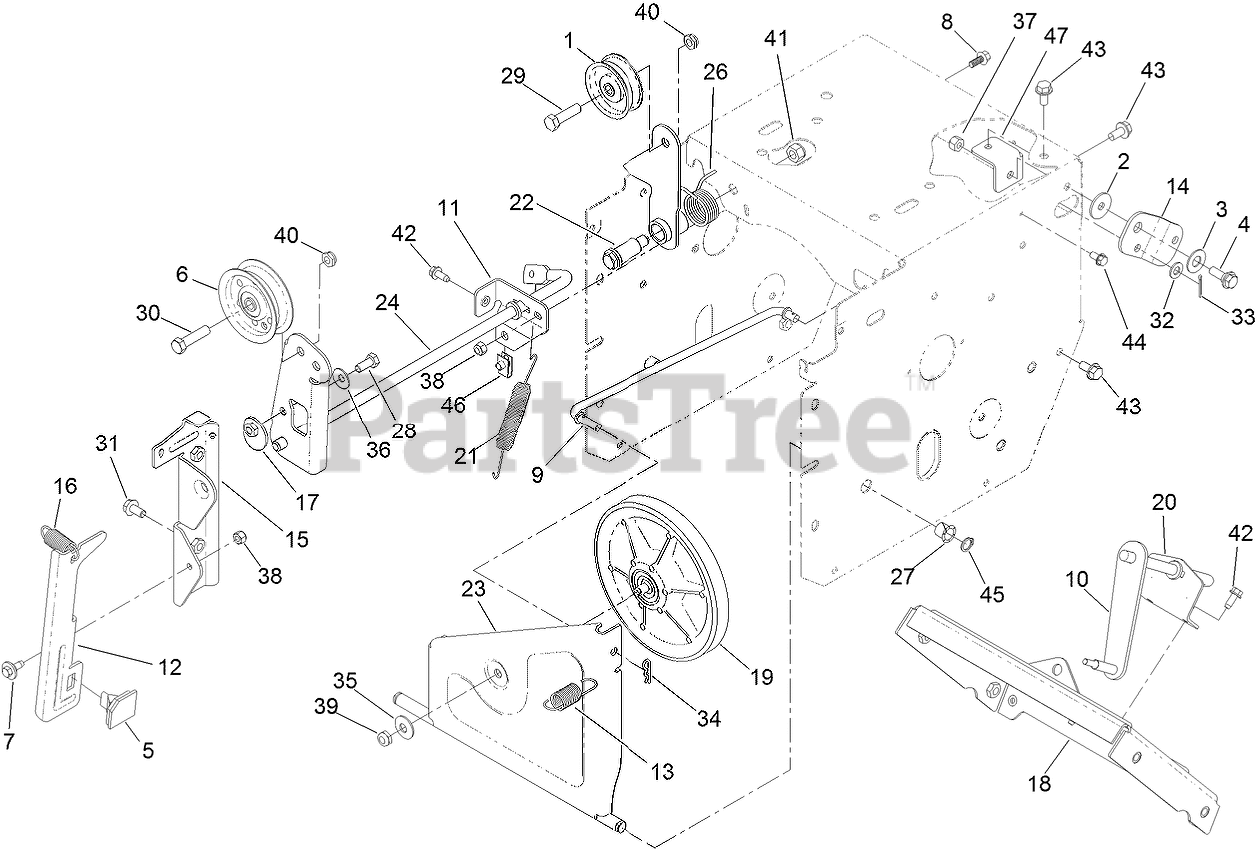

Idler Pulley and Linkage Assembly Parts Diagram

  • Title

1

Toro 3-4244

PULLEY-IDLER

$29.99

$

In Stock, only 2 left!

0

2

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

3

Toro 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

4

Toro 27-0410

SCREW-SHOULDER

$3.49

$

In Stock, only 2 left!

0

5

Toro 66-8060

PAD-BRAKE

$19.99

$

In Stock, only 2 left!

0

6

Toro 92-7104

PULLEY-IDLER

$33.99

$

In Stock, only 2 left!

0

7

Toro 92-9698

SCREW-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

8

Toro 99-6810

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

9

Toro 136-7101

LINK-SPEED, CONTROL

$15.99

$

Usually ships in 3-6 days

0

10

Toro 136-7106

TRACTION LEVER ASM

$

$

Not available

11

Toro 136-7181

BRACKET-IMPELLER, CLUTCH

$

$

Not available

12

Toro 136-7108

ARM-BRAKE

$28.99

$

Usually ships in 3-6 days

0

13

Toro 107-1003

SPRING-EXTENSION

$5.99

$

Usually ships in 3-6 days

0

14

Toro 136-7110

BELLCRANK

$6.99

$

Usually ships in 3-6 days

0

15

Toro 136-7112

BRACKET-IMPELLER, IDLER

$25.99

$

Usually ships in 3-6 days

0

16

Toro 107-1045

SPRING-EXTENSION

$5.99

$

In Stock, only 2 left!

0

17

Toro 136-7113

NUT ASSEMBLY

$5.99

$

Usually ships in 3-6 days

0

18

Toro 108-0026-01

SHIFT PLATE ASM

$71.99

$

Usually ships in 3-6 days

0

19

Toro 136-7319

PULLEY-TRACTION ASM

$116.99

$

Usually ships in 3-6 days

0

20

Toro 136-7114

BRACKET-SHIFT, ROD

$6.99

$

Usually ships in 3-6 days

0

21

Toro 136-7115

SPRING-EXTENSION

$13.99

$

In Stock, Qty 9

0

22

Toro 136-7116

BOLT-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

23

Toro 136-7118

BRACKET-WHEEL, FRICTION

$87.99

$

Usually ships in 3-6 days

0

24

Toro 107-3838-03

IMPELLER CLUTCH ASM

$44.99

$

Usually ships in 3-6 days

0

26

Toro 120-3060

SPRING-TORSION

$4.49

$

In Stock, only 1 left!

0

27

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, only 3 left!

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 8

0

30

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 3234-7

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

32

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

34

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

35

Toro 3290-340

WASHER-BELLEVILLE

$8.99

$

In Stock, only 4 left!

0

36

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 16

0

37

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

38

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

39

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

40

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 2 left!

0

41

Toro 3296-76

NUT-LOCK, NI

$5.49

$

Usually ships in 3-6 days

0

42

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

43

Toro 32144-14

SCREW-HWHTF

$5.49

$

In Stock, only 2 left!

0

44

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

45

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

46

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

47

Toro 125-1124-03

See Supercession: 125-1124
(Superseded to 125-1124)

$7.49

$

Usually ships in 3-6 days

0
