38818 (722 E) - Toro 22" Power Throw Snow Thrower (SN: 313000001 - 313999999) (2013) 22 INCH GEAR CASE ASSEMBLY NO. 37-6962 Parts Diagram

22" Power Throw Snow Thrower

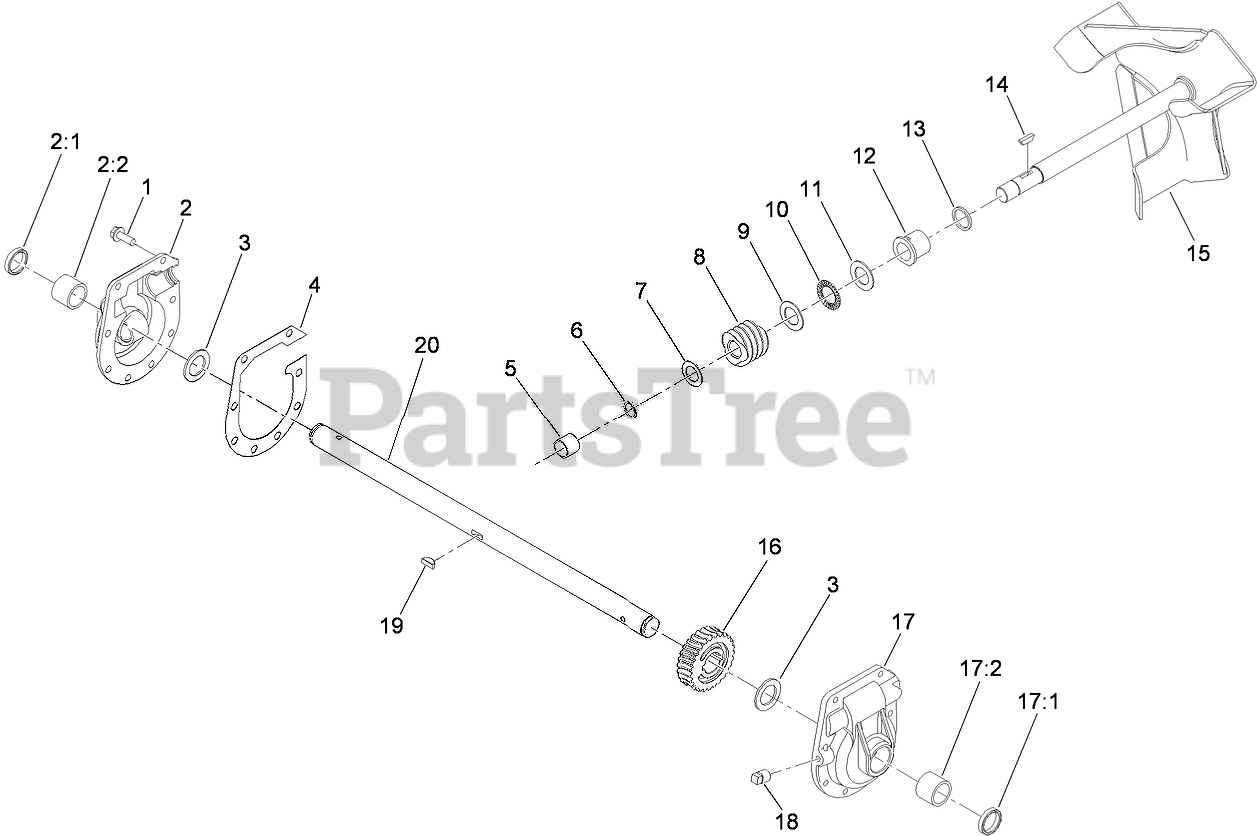

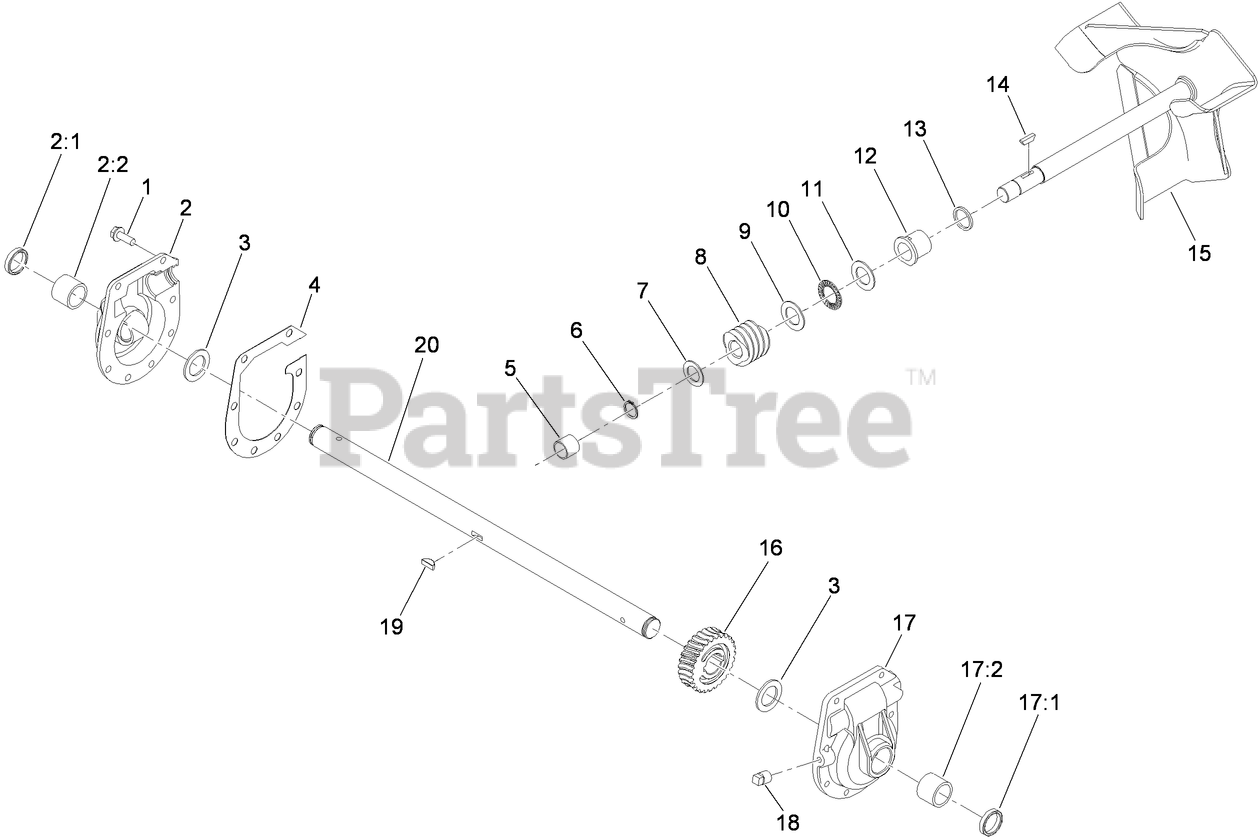

22 INCH GEAR CASE ASSEMBLY NO. 37-6962 Parts Diagram

  • Title

1

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

2

Toro 14-2449

RH BUSHING CASE ASM

$151.99

$

Usually ships in 3-6 days

0

2:1

Toro 7-0045

SEAL-OIL

$15.99

$

In Stock, Qty 20+

0

2:2

Toro 112-6635

BUSHING-SLEEVE

$6.99

$

In Stock, only 3 left!

0

3

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

4

Toro 51-0460

GASKET-CASE, GEAR

$7.99

$

In Stock, Qty 9

0

5

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

6

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 20+

0

7

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 2 left!

0

8

Toro 115-5669

WORM

$99.99

$

Usually ships in 3-6 days

0

9

Toro 252-80

WASHER-THRUST

$8.99

$

In Stock, only 1 left!

0

10

Toro 252-76

BEARING-THRUST

$21.99

$

In Stock, only 1 left!

0

11

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, Qty 5

0

12

Toro 37-6560

BUSHING-INPUT

$42.99

$

In Stock, only 3 left!

0

13

Toro 237-87

RING-QUAD

$6.99

$

In Stock, only 2 left!

0

14

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, only 2 left!

0

15

Toro 37-6990-03

IMPELLER SHAFT ASM

$463.99

$

Usually ships in 3-6 days

0

16

Toro 115-5674

WORM-GEAR

$226.99

$

Usually ships in 3-6 days

0

17

Toro 14-2459

LH BUSHING CASE ASM

$151.99

$

Usually ships in 3-6 days

0

17:1

Toro 7-0045

SEAL-OIL

$15.99

$

In Stock, Qty 20+

0

17:2

Toro 112-6635

BUSHING-SLEEVE

$6.99

$

In Stock, only 3 left!

0

18

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

In Stock, only 1 left!

0

19

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 3 left!

0

20

Toro 37-6802

SHAFT-AUGER

$

$

Not available
