38828 (1128 OXE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 314000001 - 314999999) (2014) ENGINE ASSEMBLY Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

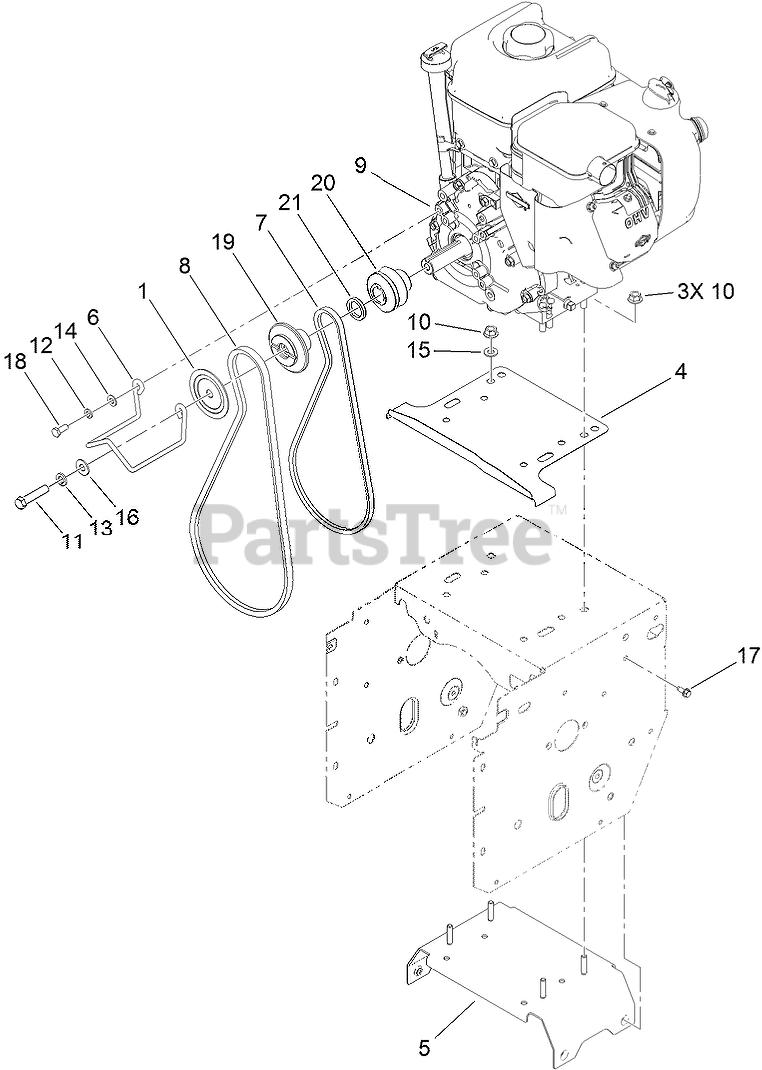

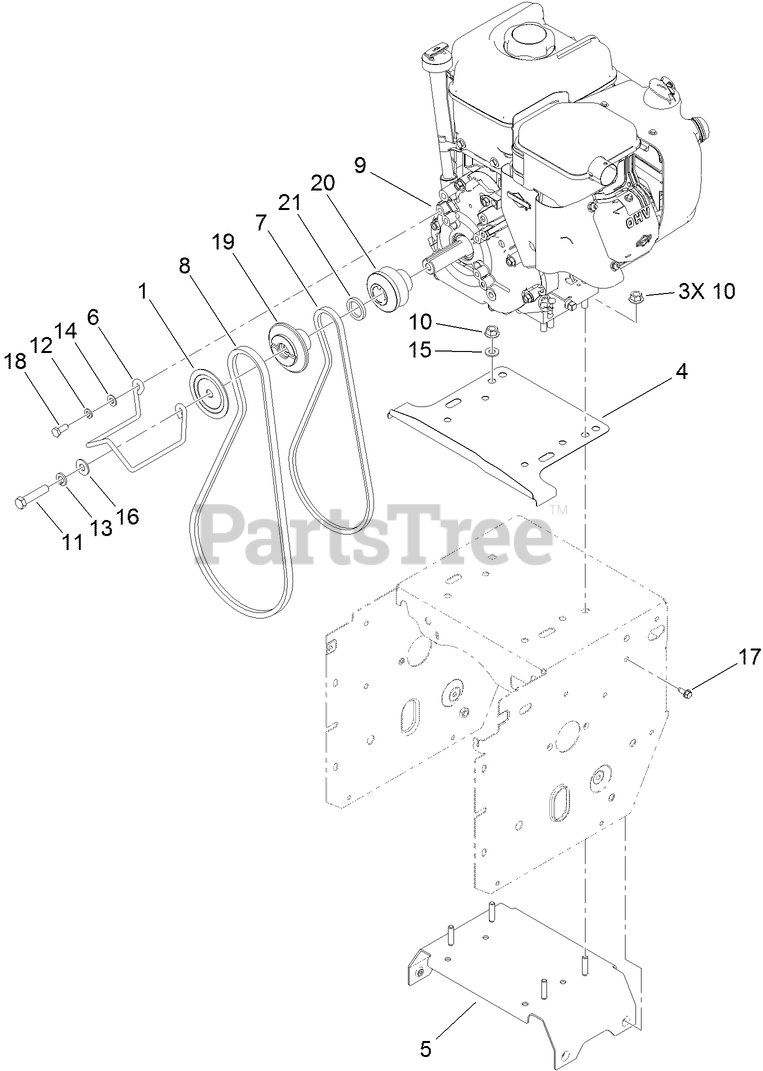

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, only 1 left!

0

4

Toro 117-6022-01

SHIELD-DRIVE

$10.99

$

Usually ships in 3-6 days

0

5

Toro 112-8127

FRAME BRACE ASM

$42.99

$

Usually ships in 3-6 days

0

6

Toro 107-3835

GUIDE-BELT
(Superseded to 136-7317)

$18.99

$

Usually ships in 3-6 days

0

7

Toro 94-8812

V BELT-TRACTION
(Superseded to 94-8812-SL)

$33.99

$

Usually ships in 3-6 days

0

8

Toro 106-4498

BELT-V

$29.99

$

In Stock, Qty 10

0

9

ENGINE-BRIGGS, 21M3170130H1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

9

ENGINE-BRIGGS, 21M3170130H1

Note: Not serviced separately

$

$

Not available

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, Qty 5

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

18

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

19

Toro 121-6602

PULLEY-ENGINE, IMPELLER

$19.99

$

Usually ships in 3-6 days

0

20

Toro 121-6617

PULLEY-TRACTION

$38.99

$

Usually ships in 3-6 days

0

21

Toro 115-5666

SPACER-HARDENED

$8.49

$

Usually ships in 3-6 days

0
