38830 (1030 OHAE) - Toro 30" Power Max Heavy-Duty Snow Thrower (SN: 415000000 - 999999999) Auger Drive Assembly Parts Diagram

30" Power Max Heavy-Duty Snow Thrower

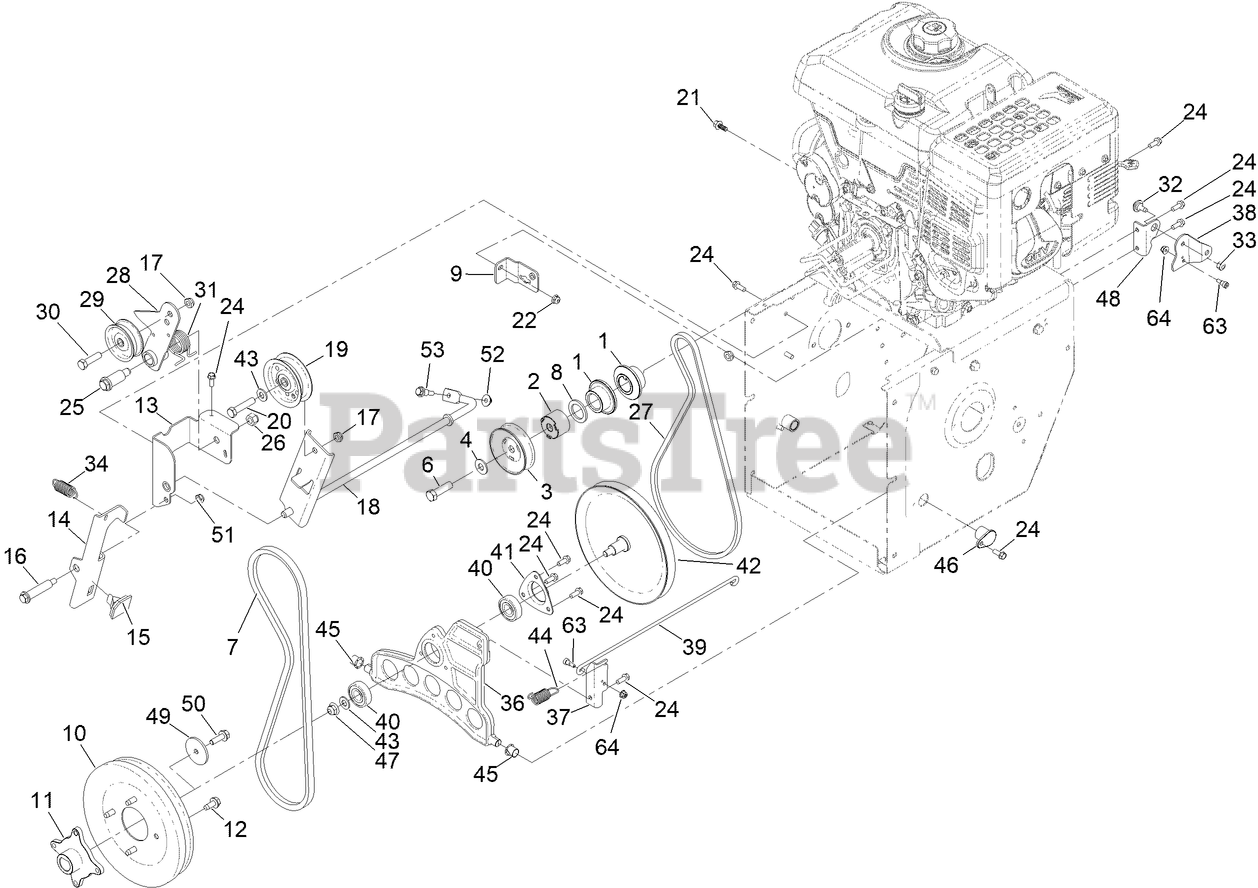

Auger Drive Assembly Parts Diagram

  • Title

1

Toro 136-6564

PULLEY-TRACTION, ENGINE

$7.49

$

In Stock, only 2 left!

0

2

Toro 136-6691

PULLEY-SPACER

$6.99

$

In Stock, only 1 left!

0

3

Toro 137-6179

PULLEY-IMPELLER

$13.99

$

Usually ships in 3-6 days

0

4

Toro 137-3078

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

6

Toro 138-0721

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 135-0708

BELT-V, HITEMP

$64.99

$

In Stock, only 1 left!

0

8

Toro 3-8514

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

9

Toro 136-8654-03

BRACKET-CLUTCH, IMPELLER

$2.99

$

Usually ships in 3-6 days

0

10

Toro 138-0717

PULLEY-IMPELLER

$37.99

$

Usually ships in 3-6 days

0

11

Toro 136-6558

HUB-PULLEY

$13.99

$

Usually ships in 3-6 days

0

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 136-8671-03

BRACKET-BRAKE, CLUTCH

$7.99

$

Usually ships in 3-6 days

0

14

Toro 136-6527

BRAKE ARM

$29.99

$

Usually ships in 3-6 days

0

15

Toro 66-8060

PAD-BRAKE

$18.99

$

In Stock, Qty 20+

0

16

Toro 136-7199

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

17

Toro 121-4600

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

18

Toro 145-0728

IMPELLER CLUTCH ARM ASSEMBLY

$

$

Currently unavailable

19

Toro 92-7104

PULLEY-IDLER

$29.99

$

In Stock, only 2 left!

0

20

Toro 138-0722

SCREW-HH

$1.49

$

In Stock, only 1 left!

0

21

Toro 137-3111

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

22

Toro 137-3005

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

24

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

25

Toro 136-7116

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

26

Toro 137-3095

NUT-HEX

$4.99

$

Usually ships in 3-6 days

0

27

Toro 137-6151

V-BELT

$30.99

$

In Stock, only 4 left!

0

28

Toro 136-7186

ARM-IDLER, TRACTION

$18.99

$

Usually ships in 3-6 days

0

29

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0

30

Toro 137-3065

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

31

Toro 120-3060

SPRING-TORSION

$3.99

$

Usually ships in 3-6 days

0

32

Toro 92-9698

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

33

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 18

0

34

Toro 147-9465

SPRING-EXTENSION

$2.49

$

0

36

Toro 136-6689

PLATE-FRICTION, WHEEL

$22.99

$

Usually ships in 3-6 days

0

37

Toro 144-1621

BKT-TRACTION PLATE

$3.49

$

0

38

Toro 144-1622

BELLCRANK-DRIVE

$4.99

$

Usually ships in 3-6 days

0

39

Toro 144-1613

LINK-TRACTION, HD

$11.99

$

In Stock, only 1 left!

0

40

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

41

Toro 136-7124

RETAINER-BEARING

$1.99

$

Usually ships in 3-6 days

0

42

Toro 137-6154

PULLEY-TRACTION

$34.99

$

Usually ships in 3-6 days

0

43

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

44

Toro 137-6189

SPRING-EXTENSION

$3.49

$

In Stock, only 1 left!

0

45

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

46

Toro 120-7156

BUSHING-PLATE, TRACTION

$8.99

$

In Stock, only 2 left!

0

47

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

48

Toro 136-6654

See Supercession: 136-6654-03
(Superseded to 136-6654-03)

$2.99

$

Usually ships in 3-6 days

0

49

Toro 137-3121

WASHER-PLAIN

$8.49

$

Usually ships in 3-6 days

0

50

Toro 115-5142

SCREW-HHF

$9.49

$

In Stock, only 1 left!

0

51

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

52

Toro 137-3016

NUT-HF

$2.49

$

Usually ships in 3-6 days

0

53

Toro 104-0858

BOLT-SHOULDER

$5.49

$

In Stock, Qty 11

0

63

Toro 94-9422

SCREW-SHOULDER

$2.49

$

In Stock, only 2 left!

0

64

Toro 138-0719

NUT-HF

$1.49

$

In Stock, Qty 8

0
