38830 (1030 OHAE) - Toro 30" Power Max Heavy-Duty Snow Thrower (SN: 415000000 - 999999999) Engine Assembly No. 1 Parts Diagram

30" Power Max Heavy-Duty Snow Thrower

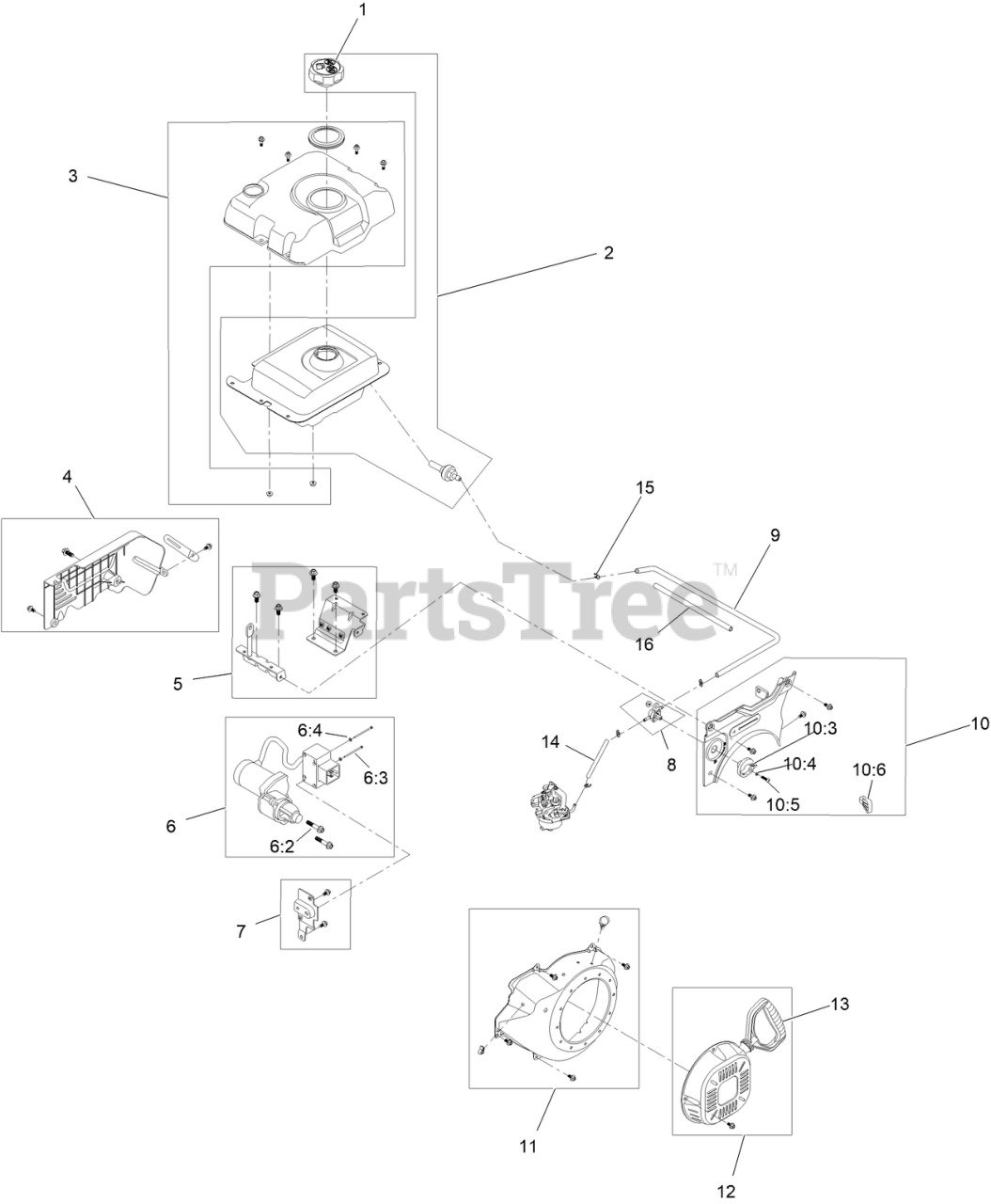

Engine Assembly No. 1 Parts Diagram

  • Title

1

Toro 133-9823

CAP-FUEL

$20.99

$

In Stock, only 3 left!

0

2

Toro 147-7093

FUEL TANK AND CAP KIT

$103.99

$

Usually ships in 3-6 days

0

3

Toro 121-0349

FUEL TANK COVER KIT

$77.99

$

Usually ships in 3-6 days

0

4

Toro 121-0347

REAR PANEL AND HARDWARE KIT

$77.99

$

Usually ships in 3-6 days

0

5

Toro 121-0351

TANK MOUNT BRACKET KIT

$39.99

$

Usually ships in 3-6 days

0

6

Toro 144-0995

ELECTRIC STARTER KIT

$397.99

$

Usually ships in 3-6 days

0

6:2

Toro 121-0298

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

6:3

Toro 121-0306

SCREW-BHP

$1.49

$

In Stock, only 2 left!

0

6:4

Toro 121-0312

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

7

Toro 121-4103

SWITCH BOX BRACKET KIT

$22.99

$

Usually ships in 3-6 days

0

8

Toro 121-4109

FUEL SHUT-OFF VALVE KIT

$20.99

$

Usually ships in 3-6 days

0

9

Toro 147-7090

HOSE-FUEL

$

$

Currently unavailable

10

Toro 121-4105

FRONT PANEL KIT

$63.99

$

Usually ships in 3-6 days

0

10:3

Toro 121-0268

KNOB-VALVE, FUEL

$8.99

$

In Stock, only 2 left!

0

10:4

Toro 121-0312

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

10:5

Toro 121-0305

SCREW-BHP

$1.49

$

In Stock, Qty 7

0

10:6

Toro 121-0269

KNOB-CONTROL, THROTTLE

$5.49

$

Usually ships in 3-6 days

0

11

Toro 121-0274

RECOIL SHROUD KIT

$100.99

$

Usually ships in 3-6 days

0

12

Toro 121-0342

RECOIL KIT

$102.99

$

In Stock, only 2 left!

0

13

Toro 121-0287

HANDLE-RECOIL

$14.99

$

In Stock, only 4 left!

0

14

Toro 147-7091

HOSE-FUEL

$

$

Currently unavailable

15

Toro 147-7077

CLIP-HOSE

$1.49

$

Usually ships in 3-6 days

0

16

Toro 147-7078

SLEEVE-ABRASION

$

$

Currently unavailable
