38834 (1028 OXE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 400000000 - 999999999) ENGINE ASSEMBLY Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

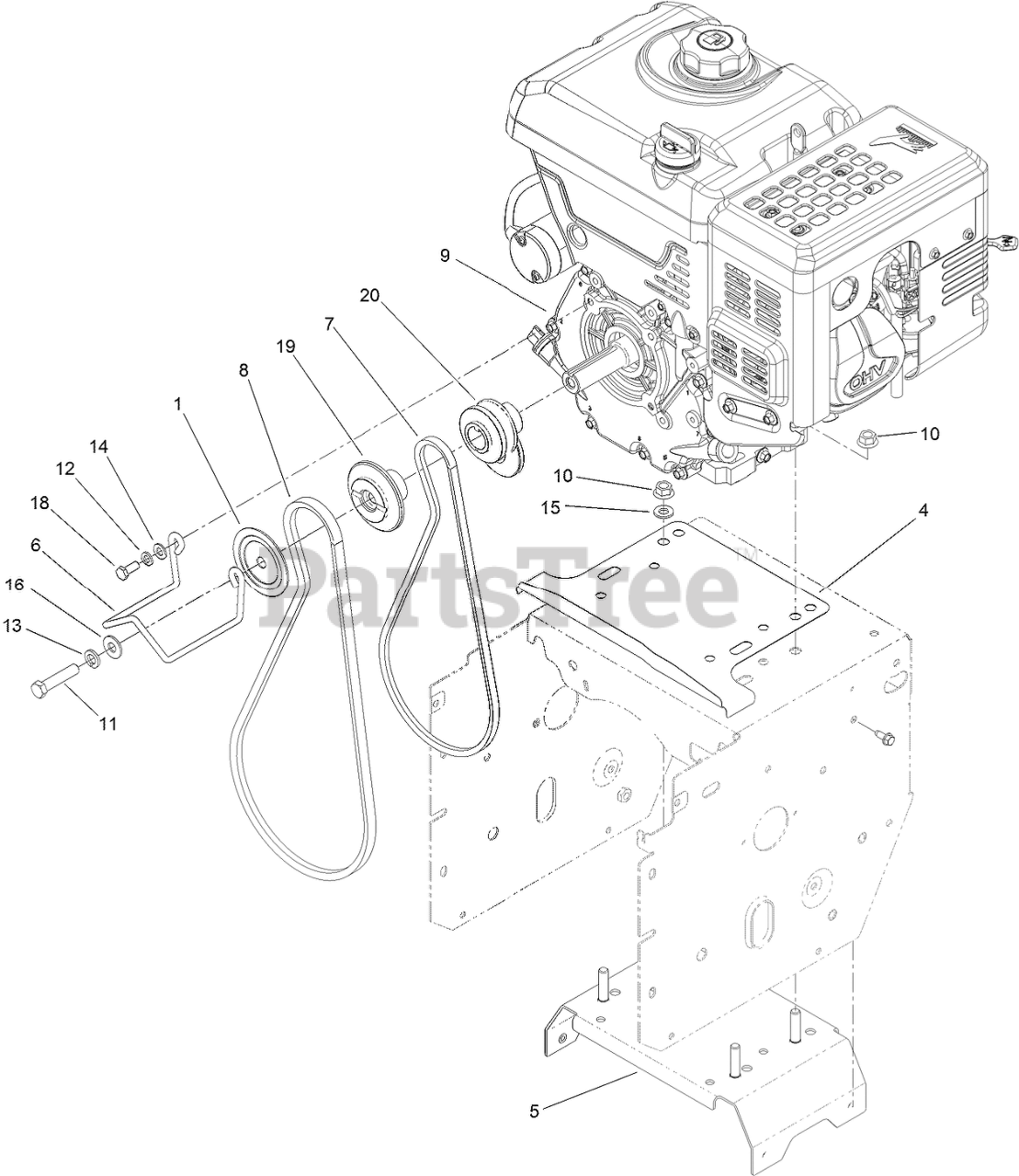

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, only 1 left!

0

4

Toro 117-6022-01

SHIELD-DRIVE

$10.99

$

Usually ships in 3-6 days

0

5

Toro 119-1560

FRAME BRACE ASM

$54.99

$

Usually ships in 3-6 days

0

6

Toro 136-8673

GUIDE-BELT

$11.99

$

Usually ships in 3-6 days

0

7

Toro 119-1564

BELT-V

$22.99

$

In Stock, only 2 left!

0

8

Toro 125-1145

BELT-V

$26.99

$

In Stock, only 4 left!

0

9

Toro 120-4426

ENGINE-180FDS-1

$1082.99

$

Usually ships in 3-6 days

0

10

Toro 136-8683

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

11

Toro 137-3037

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

12

Toro 136-8682

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

13

Toro 137-3071

WASHER-LOCK

$6.49

$

Usually ships in 3-6 days

0

14

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

15

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

16

Toro 137-3078

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

18

Toro 137-3098

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

19

Toro 121-6602

PULLEY-ENGINE, IMPELLER

$19.99

$

Usually ships in 3-6 days

0

20

Toro 121-6617

PULLEY-TRACTION

$38.99

$

Usually ships in 3-6 days

0
