38834 (1028 OXE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 400000000 - 999999999) Housing and Bypass Assembly Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

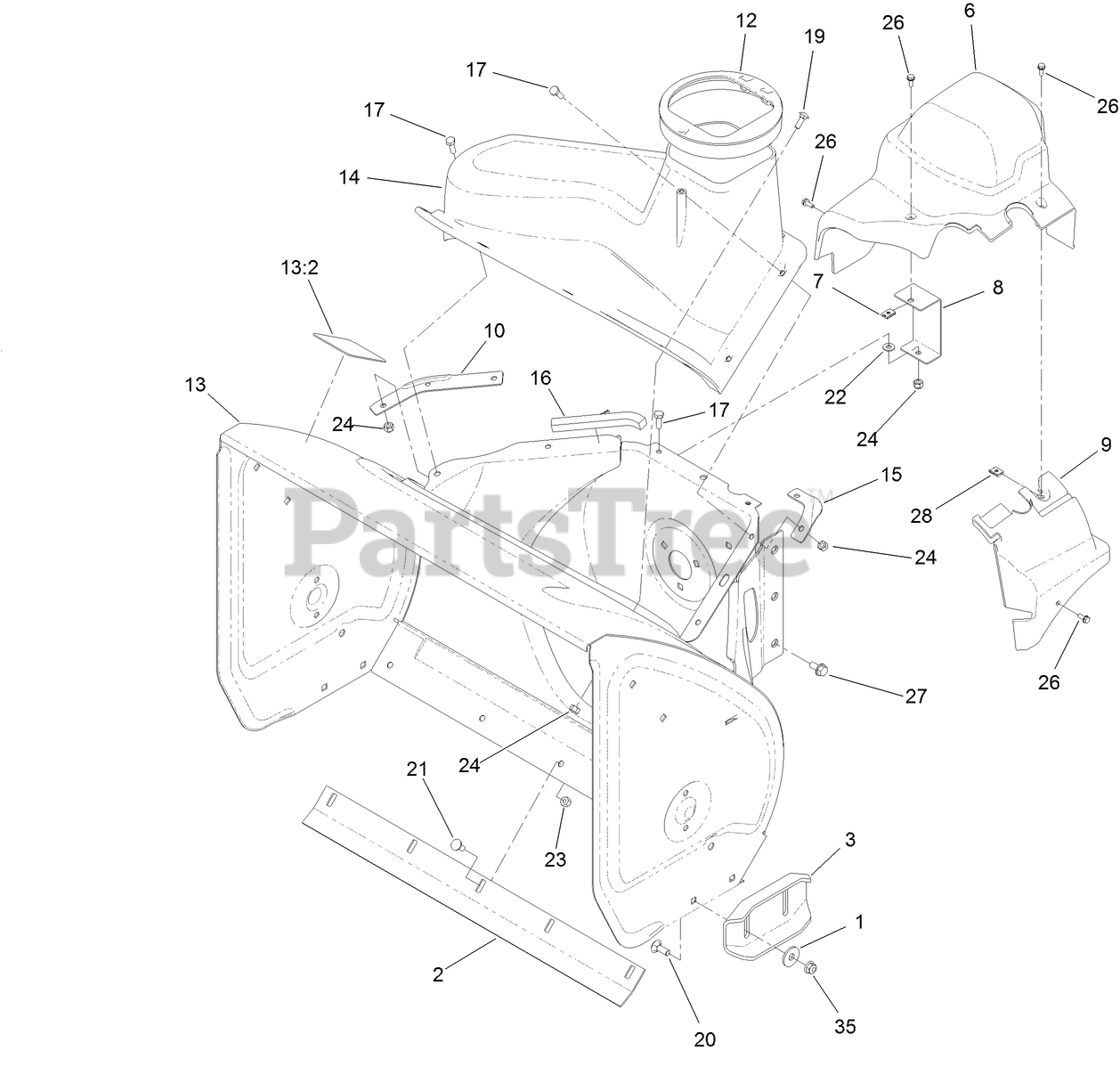

Housing and Bypass Assembly Parts Diagram

  • Title

1

Toro 119-4150

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 106-4573-01

SCRAPER-FIXED

$117.99

$

In Stock, only 1 left!

0

3

Toro 106-4588-01

SKID

$23.99

$

Usually ships in 3-6 days

0

6

Toro 119-1563

COVER-BELT

$25.99

$

In Stock, only 2 left!

0

7

Toro 107-1013

NUT-SPEED

$3.49

$

In Stock, only 1 left!

0

8

Toro 107-1014-03

BRACKET-COVER, CLIP NUT

$11.99

$

Usually ships in 3-6 days

0

9

Toro 107-1016

COVER-EXTENSION, BELT

$15.99

$

In Stock, only 1 left!

0

10

Toro 107-1017-03

SEAL-FLANGE, COVER

$5.49

$

Usually ships in 3-6 days

0

12

Toro 107-3006

GUIDE-CHUTE

$41.99

$

Usually ships in 3-6 days

0

13

Toro 107-3824

HOUSING-AUGER, 28 INCH

$953.99

$

Usually ships in 3-6 days

0

13:2

Toro 107-3040

DECAL-DANGER

$36.99

$

Usually ships in 3-6 days

0

14

Toro 108-0017

COVER

$150.99

$

In Stock, only 2 left!

0

15

Toro 108-0039-03

SEAL

$9.49

$

In Stock, only 4 left!

0

16

Toro 120-0124

SEAL-HOUSING

$4.49

$

Usually ships in 3-6 days

0

17

Toro 137-3042

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

19

Toro 137-3053

BOLT-CARR

$4.99

$

Usually ships in 3-6 days

0

20

Toro 137-3059

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

21

Toro 137-3061

BOLT-CARR

$0.99

$

In Stock, Qty 11

0

22

Toro 120-9679

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

23

Toro 119-4038

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

24

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 11

0

26

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

27

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

28

Toro 701493

NUT-SPEED

$7.49

$

In Stock, Qty 9

0

35

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0
