38850 (928 OAE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 405578400 - 406319999) Handle Assembly Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

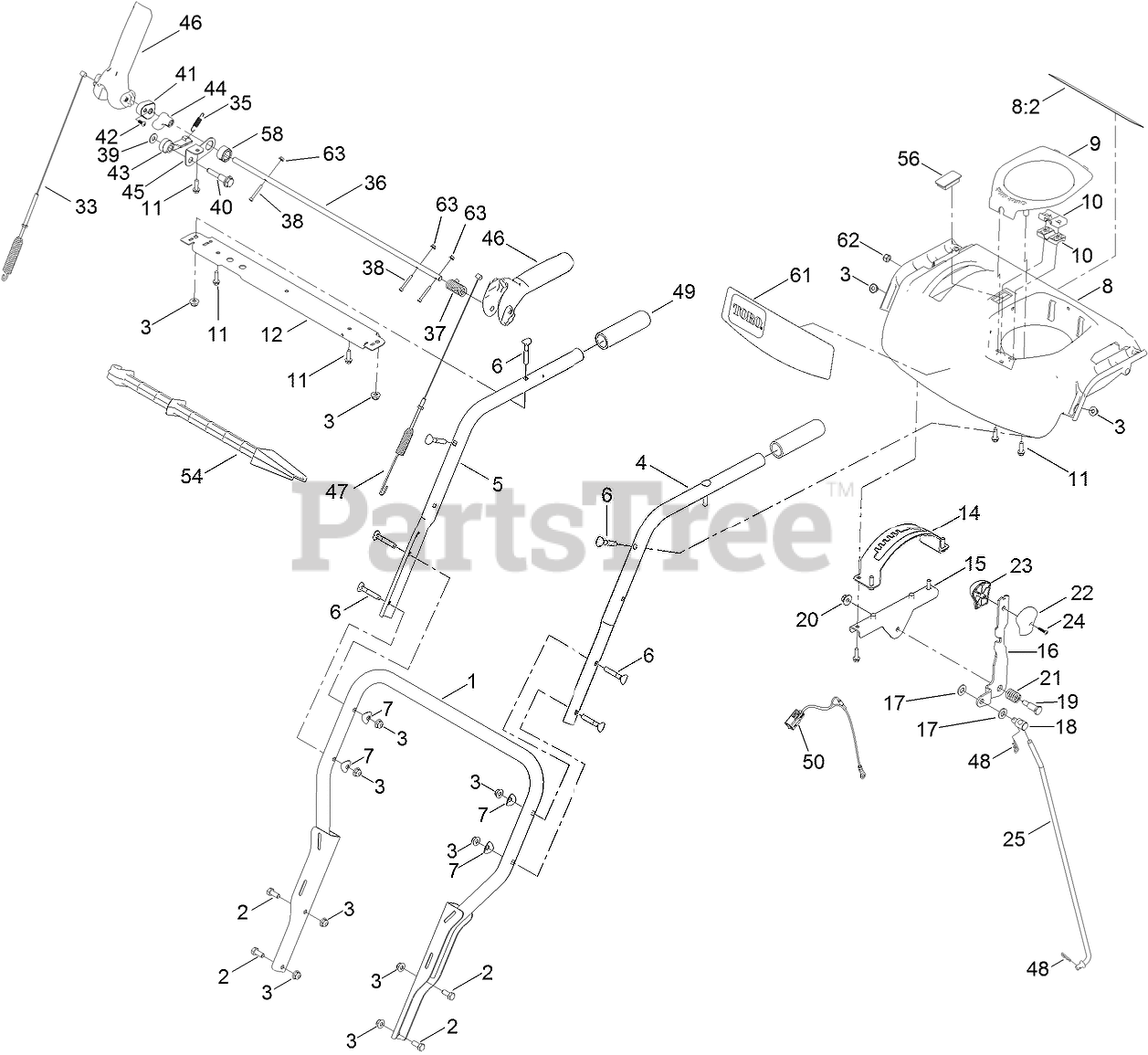

Handle Assembly Parts Diagram

  • Title

1

Toro 136-6682-03

LOWER HANDLE ASM

$90.99

$

Usually ships in 3-6 days

0

2

Toro 137-3052

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 138-8401

NUT-HF

$1.49

$

In Stock, Qty 15

0

4

Toro 137-6206-03

HANDLE-UPPER, LH

$27.99

$

In Stock, only 1 left!

0

5

Toro 137-6207-03

HANDLE-UPPER, RH

$27.99

$

Usually ships in 3-6 days

0

6

Toro 137-3107

SCREW-HANDLE

$1.99

$

In Stock, only 3 left!

0

7

Toro 137-3009

WASHER-CUP

$0.99

$

In Stock, Qty 11

0

8

Toro 137-6208

PANEL-CONTROL, W/GRAPHICS
(Superseded to 144-1600)

$60.99

$

Usually ships in 3-6 days

0

8:2

Toro 137-6249

DECAL-SAFETY

$3.99

$

Usually ships in 3-6 days

0

9

Toro 137-6178

COVER-QUICKSTICK

$7.99

$

In Stock, Qty 10

0

10

Toro 105-9987

SUPPORT-ROD

$8.49

$

In Stock, Qty 9

0

11

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

12

Toro 137-6197-01

BRACE-CONSOLE

$13.99

$

Usually ships in 3-6 days

0

14

Toro 137-6187-03

GATE-SHIFT

$7.99

$

Usually ships in 3-6 days

0

15

Toro 137-6188-03

BRACKET-SHIFT

$6.99

$

Usually ships in 3-6 days

0

16

Toro 137-6231-03

SELECTOR-SPEED

$9.49

$

Usually ships in 3-6 days

0

17

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

18

Toro 136-7193

TRUNNION-ROD

$7.99

$

In Stock, Qty 11

0

19

Toro 137-3103

SCREW-SHOULDER, HH

$1.49

$

Usually ships in 3-6 days

0

20

Toro 137-3038

NUT-HF

$5.49

$

Usually ships in 3-6 days

0

21

Toro 136-7121

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

22

Toro 138-4634

SHIFT KNOB ASM

$7.99

$

Usually ships in 3-6 days

0

22

Toro 105-9999

KNOB-SHIFT, LH

$7.99

$

In Stock, Qty 5

0

23

Toro 106-4423

KNOB-SHIFT, RH

$7.99

$

In Stock, Qty 5

0

24

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

25

Toro 137-6225

ROD-SHIFT

$17.99

$

In Stock, only 3 left!

0

33

Toro 138-3661

CABLE-AUGER

$23.99

$

In Stock, only 2 left!

0

35

Toro 136-7161

SPRING-LOCKOUT, HANDLE

$4.49

$

In Stock, only 1 left!

0

36

Toro 137-6182

ROD-LOCKOUT

$19.99

$

Usually ships in 3-6 days

0

37

Toro 138-0678

SPRING-TORSION, HANDLE RETURN

$3.49

$

Usually ships in 3-6 days

0

38

Toro 139-3694

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

39

Toro 98-3499

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

40

Toro 138-0681

SCREW-SHOULDER

$2.99

$

In Stock, only 2 left!

0

41

Toro 137-6227

LOCK-HANDLE

$5.99

$

Usually ships in 3-6 days

0

42

Toro 137-9137

SCREW-PPH

$1.49

$

In Stock, Qty 5

0

43

Toro 137-6229

LATCH-LOCKOUT
(Superseded to 144-0321)

$9.99

$

Usually ships in 3-6 days

0

44

Toro 138-8466

CAM-LOCKOUT

$3.49

$

In Stock, only 1 left!

0

45

Toro 138-3652

LINK-LOCKOUT

$4.99

$

Usually ships in 3-6 days

0

46

Toro 137-6171

LEVER-CONTROL

$12.99

$

In Stock, only 2 left!

0

47

Toro 138-0728

CABLE-TRACTION

$23.99

$

Usually ships in 3-6 days

0

48

Toro 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 18

0

49

Toro 120-1333

GRIP-HANDLE

$9.49

$

In Stock, Qty 9

0

50

Toro 138-3645

HARNESS-WIRE, LED

$26.99

$

Usually ships in 3-6 days

0

54

Toro 110-3408

STICK-CLEANOUT

$16.99

$

In Stock, only 1 left!

0

56

Toro 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0

58

Toro 138-8467

COLLAR-CAM

$2.99

$

In Stock, only 2 left!

0

61

Toro 138-0653

DECAL-CONSOLE

$8.99

$

Usually ships in 3-6 days

0

62

Toro 137-3093

NUT-HEX

$1.49

$

In Stock, Qty 15

0

63

Toro 140-3749

NUT-LOCK ROHS

$0.99

$

Usually ships in 3-6 days

0
