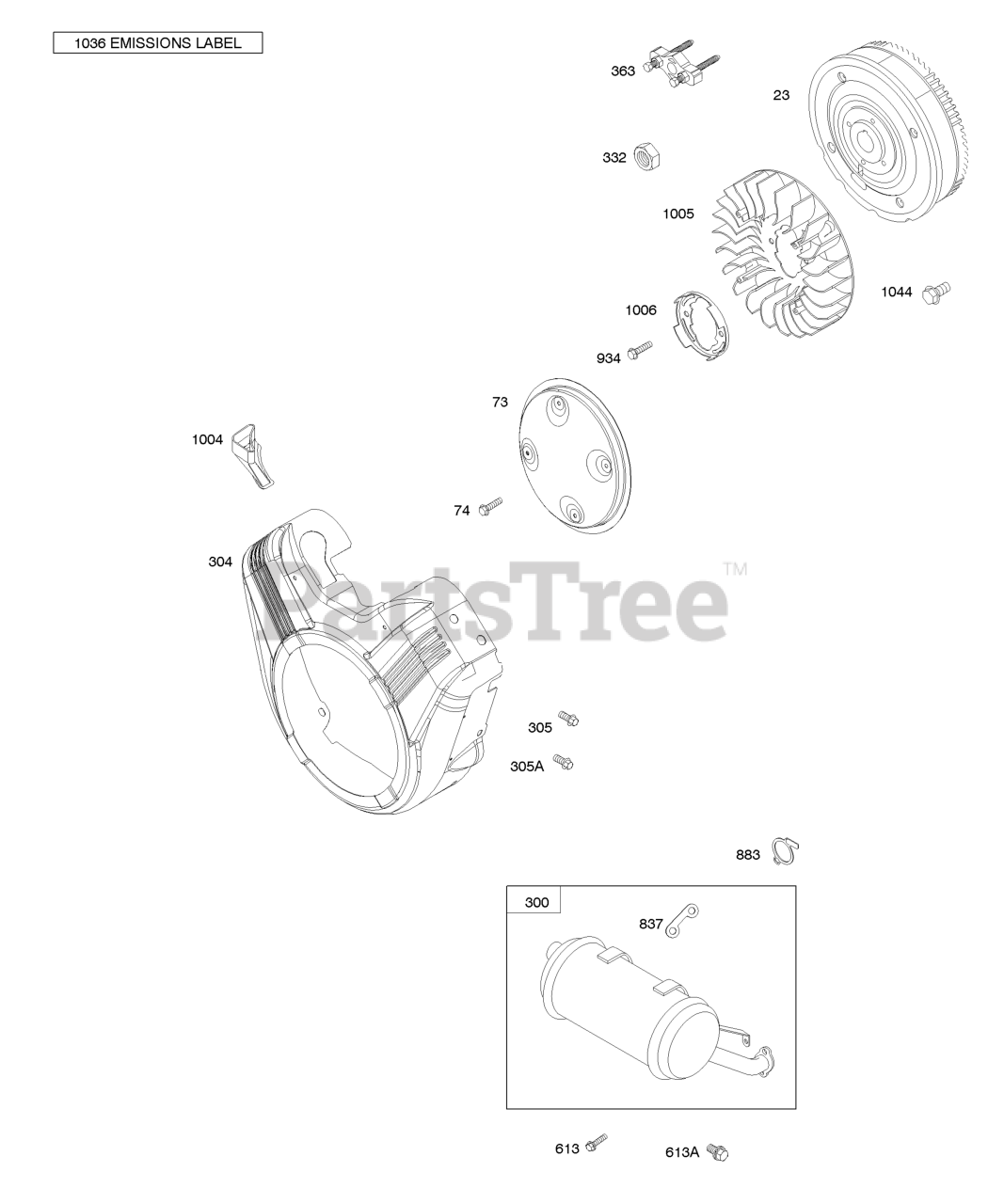

389447-0119-01 - Briggs & Stratton Horizontal Engine Flywheel, Blower Housing, Muffler Parts Diagram

Horizontal Engine

Flywheel, Blower Housing, Muffler Parts Diagram

  • Title

23

Briggs & Stratton 809236

Flywheel
(Superseded to 841050)

$301.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841440

Screen-Rotating

$41.99

$

In Stock, only 4 left!

0

74

Briggs & Stratton 841441

Screw
(Superseded to 84007750)

Note: (Rotating Screen)

$3.99

$

In Stock, Qty 14

0

304

Briggs & Stratton 842742

Housing-Blower

$157.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 692056

Screw

Note: (Blower Housing) (M8x14mm)

$5.99

$

Usually ships in 2-12 days

0

305A

Briggs & Stratton 692062

Screw

Note: (Blower Housing) (M8X18mm)

$3.99

$

In Stock, Qty 8

0

332

Briggs & Stratton 690887

Nut

Note: (Flywheel)

$5.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$28.99

$

In Stock, only 2 left!

0

613

Briggs & Stratton 691902

Screw

Note: (Muffler) (M8x20mm)

$3.99

$

In Stock, Qty 15

0

883

Briggs & Stratton 806425

Gasket-Exhaust

$5.49

$

In Stock, Qty 20+

0

934

Briggs & Stratton 691058

Screw

Note: (Fan Retainer)

$6.49

$

In Stock, Qty 9

0

1004

Briggs & Stratton 842258

Duct-Air

$25.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 841439

Fan-Flywheel

$38.99

$

In Stock, only 2 left!

0

1006

Briggs & Stratton 690452

Retainer-Fan

$11.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1044

Briggs & Stratton 692056

Screw

Note: (Flywheel)

$5.99

$

Usually ships in 2-12 days

0
