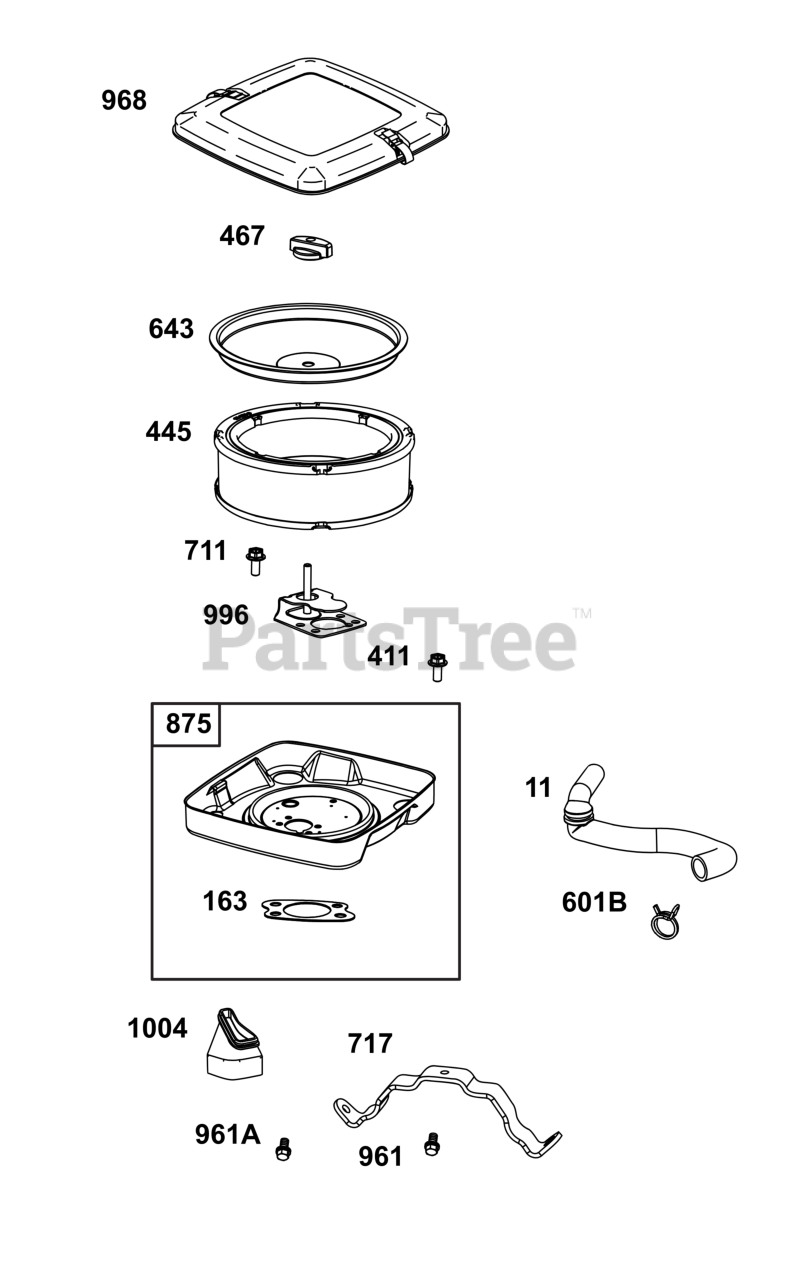

389447-0127-E1 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 844976

TUBE, Breather

$28.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

411

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Base to Air Cleaner Bracket)

$3.99

$

In Stock, only 1 left!

0

445

Briggs & Stratton 841359

FILTER, A/C Cartridge

$34.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 846431

KNOB, Air Cleaner Cover

Note: (M6 Thread)

$8.99

$

In Stock, only 1 left!

0

601B

Briggs & Stratton 843438

CLAMP, Hose

Note: (Breather Tube)

$4.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 844932

RETAINER, Air Cleaner

$24.99

$

In Stock, only 1 left!

0

711

Briggs & Stratton 807084

SCREW

Note: (Carburetor Shield)

$3.99

$

In Stock, only 1 left!

0

717

Briggs & Stratton 692153

BRACKET, Air Cleaner

$9.49

$

In Stock, only 2 left!

0

875

Briggs & Stratton 844974

BASE, Air Cleaner

$81.99

$

Usually ships in 2-12 days

0

961

Briggs & Stratton 841233

SCREW

Note: (Air Cleaner Bracket) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

961A

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Bracket) (M6x14mm)

$3.99

$

In Stock, only 1 left!

0

968

Briggs & Stratton 699959

COVER, Air Cleaner

$65.99

$

In Stock, only 1 left!

0

996

Briggs & Stratton 844930

SHIELD, Carburetor

Note: (M6 Stud)

$39.99

$

In Stock, only 2 left!

0

1004

Briggs & Stratton 842258

DUCT, Air

$25.99

$

Usually ships in 2-12 days

0
